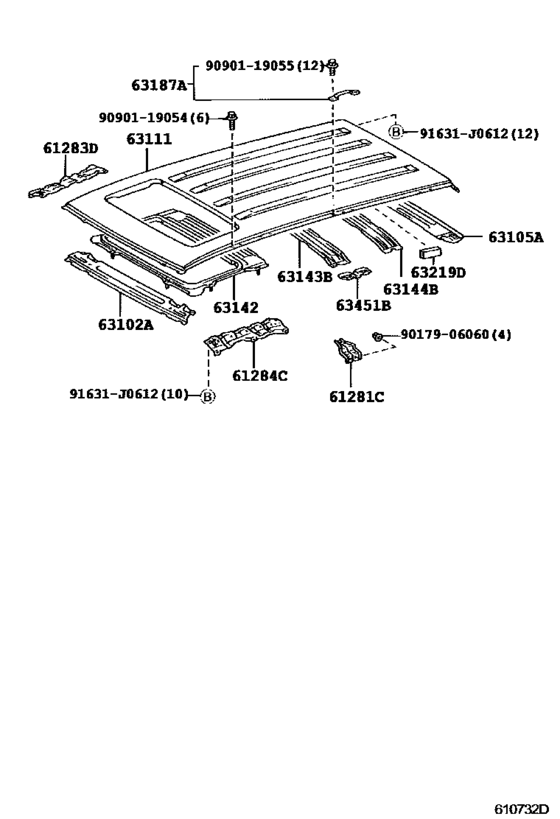

Roof Panel & Back Panel ([01.1998 - ] ｱﾘ(ﾑ-ﾝﾙ-ﾌ) (9801- )CYG,VXL) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61281C
|
61281C
61281-60040 Bracket, Sliding Roof Housing Side Mounting, No.1[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
61281-60040 |
US $16.89 |
||
|
61283D
|
61283D
61283-60021
Bracket, Sliding Roof Housing Side Mounting, Rh
[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
61283-60021 |
— | ||
|
61284C
|
61284C
61284-60021
Bracket, Sliding Roof Housing Side Mounting, Lh
[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
61284-60021 |
— | ||
|
63102A
|
63102A
63102-60070
Panel Sub-Assy, Windshield Header
[08.2002 - 05.2005] HDJ101,UZJ100 |
63102-60070 |
— | ||
|
63105A
|
63105A
63105-60181 Frame Sub-Assy, Back Door Opening[08.2002 - 05.2005] HDJ101,UZJ100 |
63105-60181 |
US $220.15 |
||
|
63111
|
63111
63111-60451 Panel, Roof[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
63111-60451 |
US $1,426.88 |
||
|
63111
|
63111
63111-60461 Panel, Roof[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63111-60461 |
US $1,426.88 |
||
|
63111
|
63111
63111-60520 Panel, Roof[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ﾙｰﾌﾃﾚﾌｫﾝｱﾝﾃﾅ & ﾑｰﾝﾙｰﾌ) |
63111-60520 |
US $1,426.88 |
||
|
63111
|
63111
63111-60550 Panel, Roof[08.2003 - 05.2005] HDJ101,UZJ100..VXL ｱﾘ(ﾙｰﾌﾃﾚﾌｫﾝｱﾝﾃﾅ) |
63111-60550 |
US $1,426.88 |
||
|
63142
|
63142
63104-60040 Reinforcement, Roof Panel, No.2[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63104-60040 |
from US $272.31 |
||
|
63142
|
63142
63143-60030 Reinforcement, Roof Panel, No.2[08.2002 - 05.2005] HDJ101,UZJ100 |
63143-60030 |
US $101.34 |
||
|
63143B
|
63143B
63144-60050 Reinforcement, Roof Panel, No.3[08.2002 - 05.2005] HDJ101,UZJ100 |
63144-60050 |
US $101.34 |
||
|
63144B
|
63144B
63127-60020 Reinforcement, Roof Panel, No.4[08.2002 - 05.2005] HDJ101,UZJ100 |
63127-60020 |
US $47.52 |
||
|
63187A
|
63187A
63187-60030 Bracket, Roof Rack, Rear[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
63187-60030 |
US $8.60 |
||
|
63451B
|
63451B
63451-60040 Reinforcement, Roof Rack, No.1[08.2002 - 05.2005] HDJ101,UZJ100..VXL |
63451-60040 |
US $21.14 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9017906060
|
9017906060
90179-06060 Nut, Wing(For Air Cleaner) |
90179-06060 |
US $2.33 |
||
|
9090119054
|
9090119054
90901-19054 BOLT WASHER |
90901-19054 |
from US $1.94 |
||
|
9090119055
|
9090119055
90901-19055 New Genuine Part |
90901-19055 |
US $2.69 |
