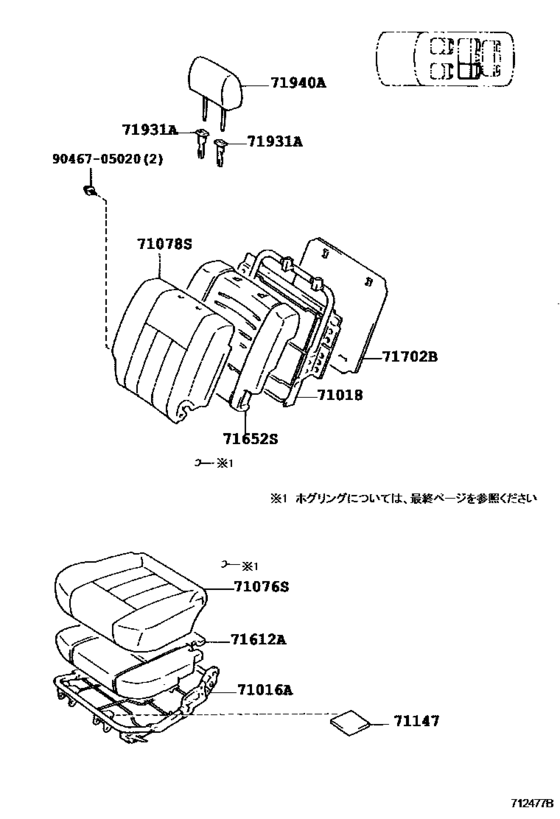

Seat & Seat Track ([08.2002 - ] ｾｶﾝﾄﾞ ｼ-ﾄ (TYPE B) (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71016A
|
71016A
71016-60050 Frame Sub-Assy, Rear Seat Cushion, Lh[08.2002 - 05.2005] HDJ101,UZJ100 |
71016-60050 |
US $199.47 |
||
|
71018
|
71018
71018-60180 Frame Sub-Assy, Rear Seat Back, Lh[08.2002 - 05.2005] HDJ101,UZJ100 |
71018-60180 |
US $160.16 |
||
|
71076S
|
71076S
71076-60360-A1 Cover, Rear Seat Cushion, Lh (For Separate Type)[08.2002 - 05.2005] HDJ101 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
71076-60360-A1 |
US $832.83 |
||
|
71076S
|
71076S
71076-60A30-B0 Cover, Rear Seat Cushion, Lh (For Separate Type)[05.2005 -] HDJ101 ﾂｰﾘﾝｸﾞｴﾃﾞｨｼｮﾝ *(D),*(E),*(M),*(N),STONE,TRIM10 |
71076-60A30-B0 |
US $423.70 |
||
| replacement | |||||
|
71076S
|
71076S
71076-60A30-B1 Cover, Rear Seat Cushion, Lh (For Separate Type)[05.2005 -] HDJ101 ﾂｰﾘﾝｸﾞｴﾃﾞｨｼｮﾝ *(D),*(E),*(M),*(N),STONE,TRIM10 |
71076-60A30-B1 |
US $425.15 |
||
|
71076S
|
71076S
71076-60A30-B1 Cover, Rear Seat Cushion, Lh (For Separate Type)[04.2006 - 06.2007] HDJ101 60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),STONE,TRIM1# |
71076-60A30-B1 |
US $425.15 |
||
|
71076S
|
71076S
71076-6A010-A0 Cover, Rear Seat Cushion, Lh (For Separate Type)[08.2002 - 05.2005] HDJ101 IVORY,TRIM0# |
71076-6A010-A0 |
US $425.15 |
||
|
71076S
|
71076S
71076-6A010-B0 Cover, Rear Seat Cushion, Lh (For Separate Type)[08.2002 - 05.2005] HDJ101 STONE,TRIM1# |
71076-6A010-B0 |
US $425.15 |
||
|
71078S
|
71078S
71078-60520-A1 Cover, Rear Seat Back, Lh(For Separate Type)[08.2002 - 05.2005] HDJ101,UZJ100..VXL ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
71078-60520-A1 |
US $982.80 |
||
|
71078S
|
71078S
71078-60A20-B0 Cover, Rear Seat Back, Lh(For Separate Type)[05.2005 -] HDJ101,UZJ100..VXL ﾂｰﾘﾝｸﾞｴﾃﾞｨｼｮﾝ *(K),*(L),*(M),*(N);ﾂｰﾘﾝｸﾞｴﾃﾞｨｼｮﾝ *(B),*(C),*(D),*(E),STONE,TRIM10 |
71078-60A20-B0 |
US $497.95 |
||
| replacement | |||||
|
71078S
|
71078S
71078-60A20-B1 Cover, Rear Seat Back, Lh(For Separate Type)[05.2005 -] HDJ101,UZJ100..VXL ﾂｰﾘﾝｸﾞｴﾃﾞｨｼｮﾝ *(K),*(L),*(M),*(N);ﾂｰﾘﾝｸﾞｴﾃﾞｨｼｮﾝ *(B),*(C),*(D),*(E),STONE,TRIM10 |
71078-60A20-B1 |
US $497.95 |
||
|
71078S
|
71078S
71078-60A20-B1 Cover, Rear Seat Back, Lh(For Separate Type)[04.2006 - 06.2007] HDJ101,UZJ100..VXL 60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),STONE,TRIM1# |
71078-60A20-B1 |
US $497.95 |
||
|
71078S
|
71078S
71078-6A210-A0 Cover, Rear Seat Back, Lh(For Separate Type)[08.2002 - 05.2005] HDJ101,UZJ100..VXL IVORY,TRIM0# |
71078-6A210-A0 |
US $497.95 |
||
|
71078S
|
71078S
71078-6A210-B0 Cover, Rear Seat Back, Lh(For Separate Type)[08.2002 - 05.2005] HDJ101,UZJ100..VXL STONE,TRIM1# |
71078-6A210-B0 |
US $497.95 |
||
|
71147
|
71147
71147-60010 Silencer, Seat Spring[08.2002 - 05.2005] HDJ101,UZJ100 ｱﾘ(ｾｶﾝﾄﾞｼ-ﾄ=TYPE A:ｲﾗｽﾄ ｻﾝｼﾖｳ) |
71147-60010 |
US $3.93 |
||
|
71147
|
71147
71147-60060 Silencer, Seat Spring[08.2002 - 05.2005] HDJ101,UZJ100 ｱﾘ(ｾｶﾝﾄﾞｼ-ﾄ=TYPE B:ｲﾗｽﾄ ｻﾝｼﾖｳ) |
71147-60060 |
US $3.93 |
||
|
71612A
|
71612A
71612-60090 Pad, Rear Seat Cushion, Lh[08.2002 - 05.2005] HDJ101,UZJ100..VXL ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
71612-60090 |
US $230.05 |
||
|
71612A
|
71612A
71612-60120 Pad, Rear Seat Cushion, Lh[05.2005 -] UZJ100..CYG; HDJ101,UZJ100..VXL ﾂｰﾘﾝｸﾞｴﾃﾞｨｼｮﾝ *(K),*(L),*(M),*(N);ﾂｰﾘﾝｸﾞｴﾃﾞｨｼｮﾝ *(B),*(C),*(D),*(E) |
71612-60120 |
US $230.05 |
||
|
71612A
|
71612A
71612-60140 Pad, Rear Seat Cushion, Lh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
71612-60140 |
US $230.05 |
||
|
71652S
|
71652S
71652-60130 Pad, Rear Seat Back, Lh(For Separate Type)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
71652-60130 |
US $147.06 |
||
|
71652S
|
71652S
71652-60160 Pad, Rear Seat Back, Lh(For Separate Type)[05.2005 -] UZJ100..CYG; HDJ101,UZJ100..VXL ﾂｰﾘﾝｸﾞｴﾃﾞｨｼｮﾝ *(K),*(L),*(M),*(N);ﾂｰﾘﾝｸﾞｴﾃﾞｨｼｮﾝ *(B),*(C),*(D),*(E) |
71652-60160 |
US $147.06 |
||
|
71702B
|
71702B
71702-60010-A2 Board Sub-Assy, Rear Seat Back, Lh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL IVORY,TRIM0# |
71702-60010-A2 |
US $157.25 |
||
|
71702B
|
71702B
71702-60010-B2 Board Sub-Assy, Rear Seat Back, Lh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
71702-60010-B2 |
US $157.25 |
||
|
71702B
|
71702B
71702-60020-A1 Board Sub-Assy, Rear Seat Back, Lh[08.2002 - 05.2005] UZJ100..CYG IVORY,TRIM0#; HDJ101,UZJ100..VXL ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
71702-60020-A1 |
US $99.01 |
||
|
71702B
|
71702B
71702-60020-B1 Board Sub-Assy, Rear Seat Back, Lh[04.2006 - 06.2007] HDJ101,UZJ100..VXL 60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),STONE,TRIM1# |
71702-60020-B1 |
US $99.01 |
||
|
71931A
|
71931A
71930-28040-A1 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ101,UZJ100 ロック付,IVORY,TRIM0#,右側 ＆ センター |
71930-28040-A1 |
US $16.89 |
||
|
71931A
|
71931A
71930-28040-P0 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ロック付,STONE,TRIM1#,右側 ＆ センター |
71930-28040-P0 |
US $16.89 |
||
|
71931A
|
71931A
71930-60030-A1 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ101,UZJ100 ロック付,IVORY,TRIM0#,左側 |
71930-60030-A1 |
US $16.89 |
||
|
71931A
|
71931A
71930-60030-B1
Support, Front Seat Headrest
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ロック付,STONE,TRIM1#,左側 |
71930-60030-B1 |
— | ||
|
71931A
|
71931A
71931-28050-A1 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ101,UZJ100 ロック無,IVORY,TRIM0#,右側 ＆ センター |
71931-28050-A1 |
from US $8.38 |
||
|
71931A
|
71931A
71931-28050-P0 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ロック無,STONE,TRIM1#,右側 ＆ センター |
71931-28050-P0 |
US $10.34 |
||
|
71931A
|
71931A
71931-60020-A1 Support, Front Seat Headrest[08.2002 - 05.2005] HDJ101,UZJ100 ロック無,IVORY,TRIM0#,左側 |
71931-60020-A1 |
US $10.34 |
||
|
71931A
|
71931A
71931-60020-B1
Support, Front Seat Headrest
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ロック無,STONE,TRIM1#,左側 |
71931-60020-B1 |
— | ||
|
71940A
|
71940A
71940-60250-A1 Headrest Assy, Rear Seat[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL IVORY,TRIM0# |
71940-60250-A1 |
US $398.94 |
||
|
71940A
|
71940A
71940-60250-B1 Headrest Assy, Rear Seat[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
71940-60250-B1 |
US $398.94 |
||
|
71940A
|
71940A
71940-60260-A1 Headrest Assy, Rear Seat[08.2002 - 05.2005] HDJ101,UZJ100..VXL ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
71940-60260-A1 |
US $503.78 |
||
|
71940A
|
71940A
71940-60350-B0 Headrest Assy, Rear Seat[05.2005 -] HDJ101,UZJ100..VXL ﾂｰﾘﾝｸﾞｴﾃﾞｨｼｮﾝ *(K),*(L),*(M),*(N);ﾂｰﾘﾝｸﾞｴﾃﾞｨｼｮﾝ *(B),*(C),*(D),*(E),STONE,TRIM10 |
71940-60350-B0 |
US $371.28 |
||
| replacement | |||||
|
71940A
|
71940A
71940-60350-B1 Headrest Assy, Rear Seat[05.2005 -] HDJ101,UZJ100..VXL ﾂｰﾘﾝｸﾞｴﾃﾞｨｼｮﾝ *(K),*(L),*(M),*(N);ﾂｰﾘﾝｸﾞｴﾃﾞｨｼｮﾝ *(B),*(C),*(D),*(E),STONE,TRIM10 |
71940-60350-B1 |
US $371.28 |
||
|
71940A
|
71940A
71940-60350-B1 Headrest Assy, Rear Seat[04.2006 - 06.2007] HDJ101,UZJ100..VXL 60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),STONE,TRIM1# |
71940-60350-B1 |
US $371.28 |
||
|
9046705020
|
9046705020
90467-05020 Clip(For Floor Carpet Set Bracket) |
90467-05020 |
US $1.31 |
||
| replacement | |||||
|
9046705020
|
9046705020
90467-05020-01 Clip(For Floor Carpet Set Bracket) |
90467-05020-01 |
US $1.10 |
||
