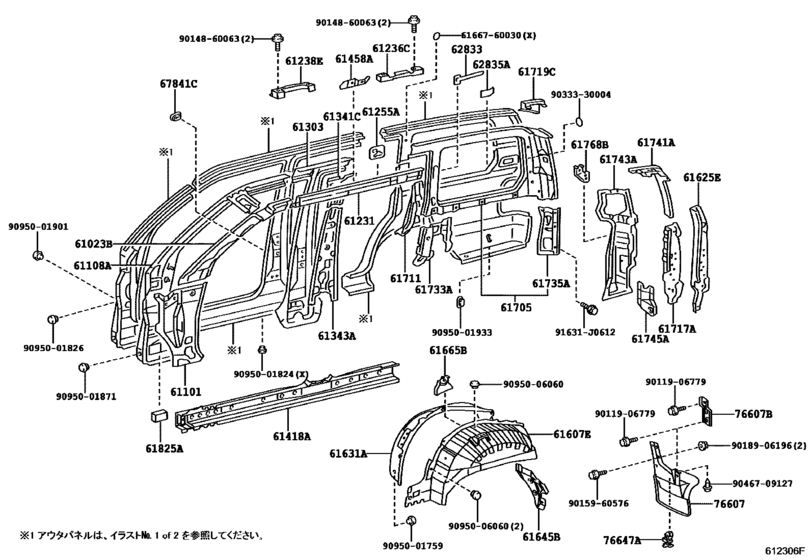

Side Member ([05.2005 - ] ｲﾝﾅﾊﾟﾈﾙ,RH (0505- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61023B
|
61023B
61023-60061
Pillar Sub-Assy, Front Body, Inner Rh
[08.2002 - 05.2005] HDJ101,UZJ100 |
61023-60061 |
— | ||
|
61101
|
61101
61101-60120 Panel Sub-Assy, Cowl Side, Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61101-60120 |
US $108.84 |
||
|
61108A
|
61108A
61108-60050
Reinforce Sub-Assy, Front Body Pillar, Lower Rh
[08.2002 - 05.2005] HDJ101,UZJ100 |
61108-60050 |
— | ||
|
61231
|
61231
61231-60081 Rail, Roof Side, Inner Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61231-60081 |
US $84.45 |
||
|
61231
|
61231
61231-60100
Rail, Roof Side, Inner Rh
[08.2002 - 05.2005] HDJ101,UZJ100 ｱﾘ(ｶ-ﾃﾝ ｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ) |
61231-60100 |
— | ||
|
61236C
|
61236C
61247-60060 Bracket, Assist Grip[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
61247-60060 |
US $18.75 |
||
|
61236C
|
61236C
61247-60070 Bracket, Assist Grip[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
61247-60070 |
US $20.68 |
||
|
61238E
|
61238E
61245-60020 Bracket, Assist Grip, No.2[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
61245-60020 |
US $19.26 |
||
|
61238E
|
61238E
61245-60030 Bracket, Assist Grip, No.2[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
61245-60030 |
US $20.68 |
||
|
61255A
|
61255A
61255-60010
Plate, Roof Side Rail, Outer Rh
[08.2002 - 05.2005] HDJ101,UZJ100 |
61255-60010 |
— | ||
|
61303
|
61303
61303-60050
Reinforce Sub-Assy, Center Body Pillar, Upper Rh
[08.2002 - 09.2004] HDJ101,UZJ100 |
61303-60050 |
— | ||
| replacement | |||||
|
61303
|
61303
61303-60051 Reinforce Sub-Assy, Center Body Pillar, Upper Rh[08.2002 - 09.2004] HDJ101,UZJ100 |
61303-60051 |
US $363.34 |
||
|
61303
|
61303
61303-60051 Reinforce Sub-Assy, Center Body Pillar, Upper Rh[10.2004 - 05.2005] HDJ101,UZJ100 |
61303-60051 |
US $363.34 |
||
|
61341C
|
61341C
61341-60050 Pillar, Center Body, Inner Upper Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61341-60050 |
US $121.61 |
||
|
61343A
|
61343A
61343-60120 Pillar, Center Body, Inner Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61343-60120 |
US $247.81 |
||
|
61418A
|
61418A
61418-60040 Reinforcement, Rocker Panel, Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61418-60040 |
US $202.60 |
||
|
61458A
|
61458A
61458-60010 Plate, Lower Rail, Inner Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61458-60010 |
from US $8.71 |
||
|
61607E
|
61607E
61607-60230
Panel, Quarter Wheel House, Inner Rh
[08.2002 - 05.2005] HDJ101,UZJ100 |
61607-60230 |
— | ||
| replacement | |||||
|
61607E
|
61607E
61607-60240
Panel, Quarter Wheel House, Inner Rh
[08.2002 - 05.2005] HDJ101,UZJ100 |
61607-60240 |
— | ||
|
61625E
|
61625E
61625-60120
Extension, Quarter Panel, Inner Rear Rh
[08.2002 - 05.2005] HDJ101,UZJ100 |
61625-60120 |
— | ||
| replacement | |||||
|
61625E
|
61625E
61625-60130 Extension, Quarter Panel, Inner Rear Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61625-60130 |
US $88.74 |
||
|
61625E
|
61625E
61625-60130 Extension, Quarter Panel, Inner Rear Rh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ) |
61625-60130 |
US $88.74 |
||
|
61631A
|
61631A
61631-60051 Panel, Quarter Wheel House, Outer Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61631-60051 |
from US $130.97 |
||
|
61645B
|
61645B
61645-60040 Gusset, Quarter Wheel House, Rear Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61645-60040 |
US $32.50 |
||
|
61665B
|
61665B
61665-60050 Reinforce, Seat Belt Anchorage To Quarter Wheel House, Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61665-60050 |
US $10.19 |
||
|
61705
|
61705
61705-60890 Panel Sub-Assy, Roof Side, Inner Rh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
61705-60890 |
US $590.84 |
||
|
61705
|
61705
61705-6A050 Panel Sub-Assy, Roof Side, Inner Rh[08.2002 - 05.2005] HDJ101,UZJ100 ｱﾘ(ｶ-ﾃﾝ ｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ) |
61705-6A050 |
US $590.84 |
||
|
61711
|
61711
61711-60041 Panel, Roof Side, Outer Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61711-60041 |
US $94.64 |
||
|
61717A
|
61717A
61031-60090 Reinforcement, Quarter Panel Extension, Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61031-60090 |
US $68 |
||
|
61719C
|
61719C
61719-60020 Bracket, Roof Side Rail, Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61719-60020 |
from US $21.47 |
||
|
61733A
|
61733A
61733-60041 Panel, Roof Side, Inner Front Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61733-60041 |
from US $24.74 |
||
|
61735A
|
61735A
61735-60040 Panel, Roof Side, Inner Rear Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61735-60040 |
US $32.03 |
||
|
61741A
|
61741A
61741-60050 Reinforcement, Back Door Opening, Upper Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61741-60050 |
from US $93.54 |
||
|
61743A
|
61743A
61033-60100 Reinforcement, Back Door Opening Side, Rh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ) |
61033-60100 |
US $155.79 |
||
|
61743A
|
61743A
61743-60070 Reinforcement, Back Door Opening Side, Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61743-60070 |
US $155.79 |
||
|
61745A
|
61745A
61745-60020 Reinforcement, Back Door Opening, Lower Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
61745-60020 |
US $20.68 |
||
|
61825A
|
61825A
61825-60010 Plate, Noise Control, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
61825-60010 |
US $19.80 |
||
| replacement | |||||
|
61825A
|
61825A
61824-12130 Seal, Center Body Pillar, Inner No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
61824-12130 |
US $26.50 |
||
|
67841C
|
67841C
67843-60010 Cover, Quarter Service Hole, Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
67843-60010 |
US $4.89 |
||
|
76607
|
76607
76625-60150 Mudguard Sub-Assy, Quarter Panel, Rear Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
76625-60150 |
from US $41.86 |
||
|
76607B
|
76607B
76645-60040 Bracket, Quarter Panel Rear Mudguard, Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
76645-60040 |
from US $5.42 |
||
|
76647A
|
76647A
76647-60040 Support, Rear Body Mudguard, Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
76647-60040 |
from US $1.08 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
6166760030
|
6166760030
61667-60030
Seal, Rear Floor, Rear
|
61667-60030 |
— | ||
| replacement | |||||
|
6166760030
|
6166760030
57899-60020 Seal, Rear Floor, Rear |
57899-60020 |
US $3.58 |
||
|
9011906779
|
9011906779
90119-06779 BOLT W-WASHER |
90119-06779 |
from US $0.67 |
||
|
9014860063
|
9014860063
90148-60063 New Genuine Part |
90148-60063 |
US $1.08 |
||
|
9015960576
|
9015960576
90159-60576 SCREW WWASHER |
90159-60576 |
from US $0.95 |
||
|
9018906196
|
9018906196
90189-06196 GROMMET SCREW |
90189-06196 |
from US $0.87 |
||
|
9033330004
|
9033330004
90333-30004 PLUG |
90333-30004 |
from US $0.91 |
||
|
9046709127
|
9046709127
90467-09127 Piece, Rear Bumper |
90467-09127 |
from US $1.62 |
||
|
9095001759
|
9095001759
90950-01759 PLUG |
90950-01759 |
from US $2.03 |
||
|
9095001824
|
9095001824
90950-01824 PLUG HOLE |
90950-01824 |
from US $1.92 |
||
|
9095001826
|
9095001826
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $1.94 |
||
|
9095001871
|
9095001871
90950-01871 PLUG |
90950-01871 |
from US $1.79 |
||
|
9095001901
|
9095001901
90950-01901 Cap, Spare Wheel Carrier Handle |
90950-01901 |
US $2.15 |
||
|
9095001933
|
9095001933
90950-01933 PLUG HOLE |
90950-01933 |
from US $2.34 |
||
|
9095006060
|
9095006060
90950-06060 New Genuine Part |
90950-06060 |
US $1.97 |
||
