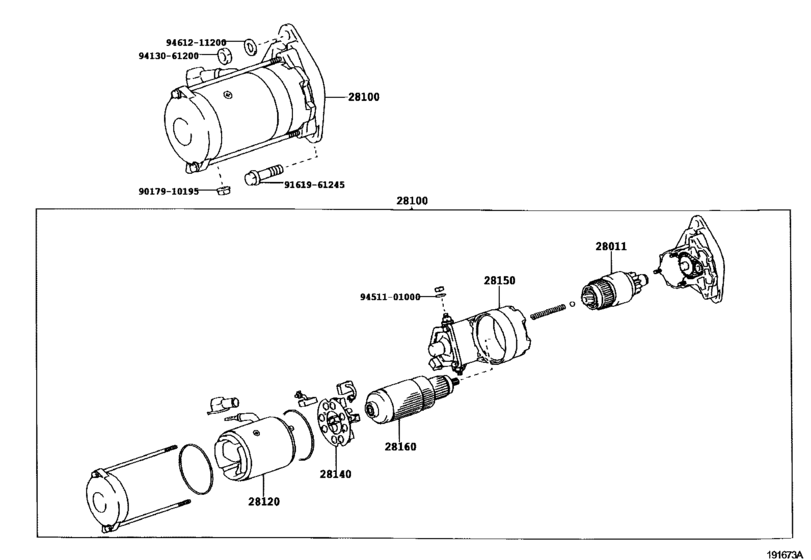

Starter ([08.2002 - ] 12V 3.0KW (0208- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[08.2002 - 05.2005] 1HDFTE..HDJ101 |
28011-54010 |
from US $184.93 |
||
|
28100
|
28100
28100-17070
Starter Assy
[08.2002 - 05.2005] 1HDFTE..HDJ101 １２Ｖ ３．０ＫＷ |
28100-17070 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-17081 Starter Assy[08.2002 - 05.2005] 1HDFTE..HDJ101 １２Ｖ ３．０ＫＷ |
28100-17081 |
US $1,494.72 |
||
|
28120
|
28120
28120-17070
Yoke Assy, Starter
[08.2002 - 05.2005] 1HDFTE..HDJ101 |
28120-17070 |
— | ||
|
28140
|
28140
28140-67090 Holder Assy, Starter Brush[08.2002 - 05.2005] 1HDFTE..HDJ101 |
28140-67090 |
US $42.94 |
||
|
28150
|
28150
28150-17070 Switch Assy, Magnet Starter[08.2002 - 05.2005] 1HDFTE..HDJ101 |
28150-17070 |
US $353.81 |
||
|
28160
|
28160
28160-67090 Armature Assy, Starter[08.2002 - 05.2005] 1HDFTE..HDJ101 |
28160-67090 |
US $283.92 |
||
|
9017910195
|
9017910195
90179-10195 NUT WWASHER |
90179-10195 |
US $1.97 |
||
|
9161961245
|
9161961245
91619-61245 Bolt(For Transaxle & Engine Setting) |
91619-61245 |
from US $1.77 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $0.95 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9461211200
|
9461211200
94612-11200 Washer |
94612-11200 |
from US $0.70 |
||
