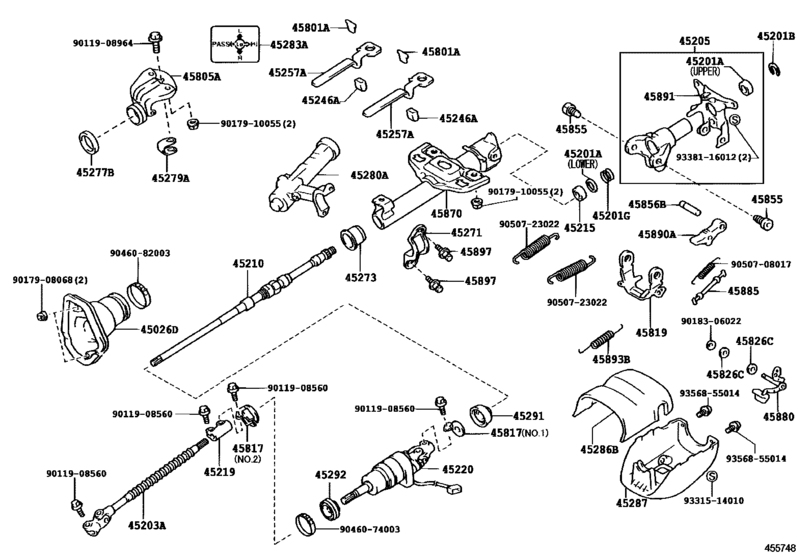

Steering Column & Shaft ([08.2003 - ] ｼｭﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ & ｱﾘ(VGRS) (0208- )UZJ100..VXL ; (0308- )HDJ101) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45026D
|
45026D
45025-60090 Cover Sub-Assy, Steering Column Hole[08.2002 - 08.2003] HDJ101,UZJ100 |
45025-60090 |
US $78.62 |
||
|
45026D
|
45026D
45025-60140
Cover Sub-Assy, Steering Column Hole
[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(*VGRS) |
45025-60140 |
— | ||
|
45201A
|
45201A
90363-18005 Bearing(For Steering Main Shaft)[08.2002 - 05.2005] HDJ101,UZJ100 下側 |
90363-18005 |
from US $5.59 |
||
|
45201A
|
45201A
90363-18009 Bearing(For Steering Main Shaft)[08.2002 - 05.2005] HDJ101,UZJ100 上側 |
90363-18009 |
from US $6.99 |
||
|
45201A
|
45201A
90363-18012 Bearing(For Steering Main Shaft)[05.2005 -] HDJ101,UZJ100..VX,VXL 下側 |
90363-18012 |
US $8.88 |
||
|
45201B
|
45201B
45263-60040 Ring, Shaft Snap(For Steering Main Shaft)[08.2003 - 05.2005] HDJ101 厚さ＝０．５,ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) & ｱﾘ(*VGRS),下側 |
45263-60040 |
from US $2.55 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL 厚さ＝１．２０; HDJ101,UZJ100..CYG,VXL 厚さ＝１．２０,ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
90520-17042 |
from US $0.80 |
||
|
45201B
|
45201B
90905-20003 Ring, Shaft Snap(For Steering Main Shaft)[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL 厚さ＝０．５,ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) & ﾅｼ(*VGRS),下側 |
90905-20003 |
from US $1.24 |
||
|
45201G
|
45201G
90501-40017 Spring, Compression(For Steering Main Shaft)[08.2002 - 05.2005] HDJ101,UZJ100 |
90501-40017 |
from US $3.32 |
||
|
45203A
|
45203A
45203-60090 Shaft, Steering Intermediate, No.2[08.2002 - 08.2003] HDJ101,UZJ100 |
45203-60090 |
from US $201.99 |
||
|
45203A
|
45203A
45203-60110 Shaft, Steering Intermediate, No.2[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(*VGRS) |
45203-60110 |
from US $204.80 |
||
|
45205
|
45205
45205-60170 Tube Sub-Assy, Steering Column[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
45205-60170 |
US $64.06 |
||
|
45210
|
45210
45210-60090
Shaft Assy, Steering Main
[08.2002 - 12.2002] HDJ101,UZJ100..VX,VXL ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45210-60090 |
— | ||
| replacement | |||||
|
45210
|
45210
45210-60091 Shaft Assy, Steering Main[08.2002 - 12.2002] HDJ101,UZJ100..VX,VXL ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45210-60091 |
from US $225.11 |
||
|
45210
|
45210
45210-60091 Shaft Assy, Steering Main[12.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45210-60091 |
from US $225.11 |
||
|
45210
|
45210
45210-60101 Shaft Assy, Steering Main[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45210-60101 |
from US $227.15 |
||
|
45210
|
45210
45210-60190 Shaft Assy, Steering Main[08.2003 - 05.2005] HDJ101 ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ & *VGRS) |
45210-60190 |
US $227.14 |
||
|
45215
|
45215
45215-12010 Collar, Main Shaft Bearing Thrust[08.2002 - 05.2005] HDJ101,UZJ100 |
45215-12010 |
from US $1.37 |
||
|
45219
|
45219
45219-60080 Yoke, Steering Sliding[08.2002 - 05.2005] HDJ101,UZJ100 |
45219-60080 |
from US $12.94 |
||
|
45220
|
45220
45220-60110 Shaft Assy, Steering Intermediate[08.2002 - 08.2003] HDJ101,UZJ100 |
45220-60110 |
from US $222.34 |
||
|
45220
|
45220
45220-60200
Shaft Assy, Steering Intermediate
[08.2003 - 10.2003] HDJ101,UZJ100..CYG,VXL ｱﾘ(*VGRS) |
45220-60200 |
— | ||
| replacement | |||||
|
45220
|
45220
45220-60202 Shaft Assy, Steering Intermediate[08.2003 - 10.2003] HDJ101,UZJ100..CYG,VXL ｱﾘ(*VGRS) |
45220-60202 |
from US $2,241.79 |
||
|
45220
|
45220
45220-60201
Shaft Assy, Steering Intermediate
[10.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(*VGRS) |
45220-60201 |
— | ||
| replacement | |||||
|
45220
|
45220
45220-60202 Shaft Assy, Steering Intermediate[10.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(*VGRS) |
45220-60202 |
from US $2,241.79 |
||
|
45220
|
45220
45220-60202 Shaft Assy, Steering Intermediate[02.2007 -] HDJ101,UZJ100..CYG,VXL ｱﾘ(*VGRS) |
45220-60202 |
from US $2,241.79 |
||
|
45246A
|
45246A
45246-12110 Guide, Steering Energy Absorbing Plate[08.2002 - 11.2003] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾏﾆﾕｱﾙ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45246-12110 |
US $3.06 |
||
|
45246A
|
45246A
45246-50040 Guide, Steering Energy Absorbing Plate[08.2002 - 11.2003] HDJ101,UZJ100..CYG,VXL ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45246-50040 |
US $2.33 |
||
|
45257A
|
45257A
45257-12070 Plate, Steering Column Energy Absorbing[08.2002 - 05.2005] HDJ101,UZJ100 |
45257-12070 |
US $5.24 |
||
|
45271
|
45271
45271-12060 Clamp, Steering Column, Upper[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45271-12060 |
US $15.05 |
||
|
45271
|
45271
45271-60030 Clamp, Steering Column, Upper[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45271-60030 |
US $53.73 |
||
|
45273
|
45273
45273-33030 Bush, Steering Main Shaft[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
45273-33030 |
from US $7.98 |
||
|
45277B
|
45277B
45848-60010 Cushion(For Tilt Steering Support)[08.2003 - 05.2005] HDJ101 ｱﾘ(*VGRS) |
45848-60010 |
US $3.49 |
||
|
45279A
|
45279A
45279-33030 Attachment, Steering Column Tube, Lwr[08.2002 - 05.2005] HDJ101,UZJ100 |
45279-33030 |
US $0.86 |
||
|
45280A
|
45280A
45280-60590 Bracket Assy, Steering Column, UpperManual tilt steering [08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45280-60590 |
from US $225.93 |
||
|
45280A
|
45280A
45280-60610 Bracket Assy, Steering Column, UpperPower tilt steering [08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45280-60610 |
from US $242.06 |
||
|
45283A
|
45283A
45283-22010 Plate, Safety Caution[08.2002 - 05.2005] HDJ101,UZJ100 |
45283-22010 |
US $2.69 |
||
|
45286B
|
45286B
45286-60340-B1 Cover, Steering Column, Upr[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL DK.GRAY,TRIM1# |
45286-60340-B1 |
from US $30.58 |
||
|
45286B
|
45286B
45286-60340-E1
Cover, Steering Column, Upr
[08.2002 - 05.2005] HDJ101,UZJ100 SANDAL WOOD,TRIM0# |
45286-60340-E1 |
— | ||
| replacement | |||||
|
45286B
|
45286B
45286-60340-B1 Cover, Steering Column, Upr[08.2002 - 05.2005] HDJ101,UZJ100 SANDAL WOOD,TRIM0# |
45286-60340-B1 |
from US $30.58 |
||
|
45287
|
45287
45287-60331-B1 Cover, Steering Column, Lwr[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),DK.GRAY,TRIM1# |
45287-60331-B1 |
US $30.58 |
||
|
45287
|
45287
45287-60331-E1
Cover, Steering Column, Lwr
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),SANDAL WOOD,TRIM0# |
45287-60331-E1 |
— | ||
| replacement | |||||
|
45287
|
45287
45287-60331-B1 Cover, Steering Column, Lwr[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),SANDAL WOOD,TRIM0# |
45287-60331-B1 |
US $30.58 |
||
|
45287
|
45287
45287-60341-E1 Cover, Steering Column, Lwr[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),SANDAL WOOD,TRIM0# |
45287-60341-E1 |
US $28.30 |
||
|
45291
|
45291
45282-60020 Seal, Main Shaft Upper Dust[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL |
45282-60020 |
US $4.73 |
||
|
45292
|
45292
45292-60100
Seal, Main Shaft Lower Dust
[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL |
45292-60100 |
— | ||
| replacement | |||||
|
45292
|
45292
45292-60160 Seal, Main Shaft Lower Dust[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL |
45292-60160 |
from US $7.01 |
||
|
45292
|
45292
45292-60160 Seal, Main Shaft Lower Dust[08.2003 - 05.2005] HDJ101 ｱﾘ(*VGRS) |
45292-60160 |
from US $7.01 |
||
|
45801A
|
45801A
45875-12010 Support Sub-Assy, Steering Post[08.2002 - 05.2005] HDJ101,UZJ100 |
45875-12010 |
US $1.31 |
||
|
45805A
|
45805A
45805-60010 Support Sub-Assy, Tilt Steering[08.2002 - 05.2005] HDJ101,UZJ100 |
45805-60010 |
US $35.38 |
||
|
45805A
|
45805A
45805-60020 Support Sub-Assy, Tilt Steering[08.2003 - 05.2005] HDJ101 ｱﾘ(*VGRS) |
45805-60020 |
US $50.23 |
||
|
45817
|
45817
45808-60010 Stopper, Steering Shaft Thrust[08.2003 - 05.2005] HDJ101 アリ（＊ＶＧＲＳ），ＮＯ．２ |
45808-60010 |
US $122.30 |
||
|
45817
|
45817
45817-60020 Stopper, Steering Shaft Thrust[08.2002 - 05.2005] HDJ101,UZJ100 ＮＯ．１ |
45817-60020 |
from US $9.12 |
||
|
45817
|
45817
45817-60040 Stopper, Steering Shaft Thrust[08.2002 - 05.2005] HDJ101,UZJ100 ＮＯ．２ |
45817-60040 |
US $10.13 |
||
|
45819
|
45819
45819-60010 Retainer, Tilt Lever[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
45819-60010 |
US $8.15 |
||
|
45826C
|
45826C
90389-08120 Bush(For Steering Tilt Lever)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
90389-08120 |
US $4.19 |
||
|
45855
|
45855
45855-35010 Bolt, Tilt Steering, No.1[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL 外径＝１０ |
45855-35010 |
from US $4.09 |
||
|
45855
|
45855
45855-60010 Bolt, Tilt Steering, No.1[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL 外径＝１１．９９３−１１．９７９ |
45855-60010 |
from US $3.19 |
||
|
45856B
|
45856B
45856-42010 Shaft, T1Lt Steering, No.2[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45856-42010 |
US $4.08 |
||
|
45856B
|
45856B
45856-60010 Shaft, T1Lt Steering, No.2[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45856-60010 |
from US $2.76 |
||
|
45870
|
45870
45870-60130 Tube Assy, Steering Column[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45870-60130 |
US $103.38 |
||
|
45870
|
45870
45870-60160 Tube Assy, Steering Column[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45870-60160 |
US $64.06 |
||
|
45880
|
45880
45880-60030 Lever Assy, Steering Tilt[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
45880-60030 |
US $17.33 |
||
|
45885
|
45885
45885-35010 Link, Tilt Lever[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
45885-35010 |
US $3.05 |
||
|
45890A
|
45890A
45890-35010 Pawl Assy, Tilt Steering[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
45890-35010 |
US $15.72 |
||
|
45891
|
45891
45891-60030 Bracket, Turn Signal[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｱﾘ(ｼﾕﾄﾞｳｼｷ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45891-60030 |
US $15.72 |
||
|
45891
|
45891
45891-60040 Bracket, Turn Signal[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
45891-60040 |
US $13.10 |
||
|
45893B
|
45893B
90905-07013 Spring, Tension(For Tilt Steering Pawl Stopper)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
90905-07013 |
US $3.79 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[08.2002 - 05.2005] HDJ101,UZJ100 |
45897-12020 |
from US $2.62 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.43 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 New Genuine Part |
90080-11555 |
US $4.23 |
||
|
9011908964
|
9011908964
90119-08964 New Genuine Part |
90119-08964 |
US $1.31 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.78 |
||
|
9017910055
|
9017910055
90179-10055 NUT |
90179-10055 |
US $2.62 |
||
|
9018306022
|
9018306022
90183-06022 New Genuine Part |
90183-06022 |
US $0.70 |
||
|
9046074003
|
9046074003
90460-74003 CLAMP HOSE |
90460-74003 |
US $4.73 |
||
|
9046082003
|
9046082003
90460-82003 CLAMP HOSE |
90460-82003 |
US $4.95 |
||
|
9050708017
|
9050708017
90507-08017 Spring, Tension(For Tilt Steering Pawl Assy) |
90507-08017 |
US $0.87 |
||
|
9050723022
|
9050723022
90507-23022 SPRING TENSION |
90507-23022 |
US $4.22 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.74 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.51 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
