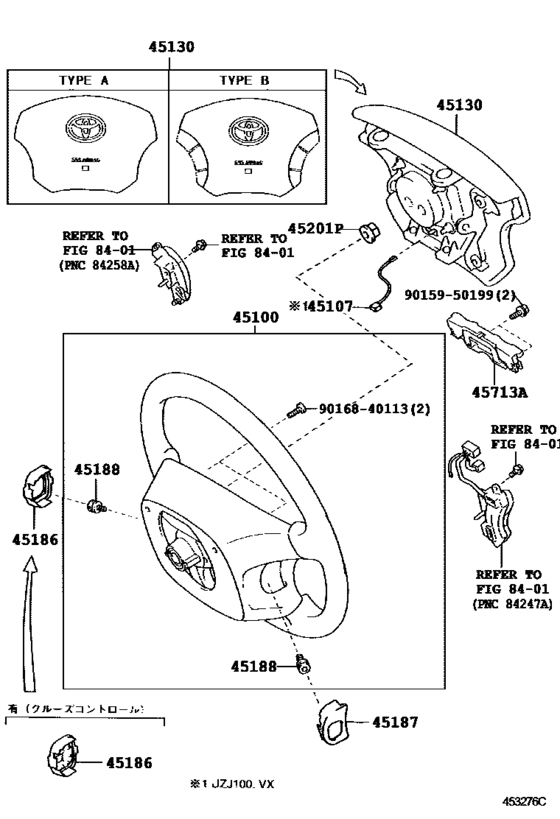

Steering Wheel ([08.2002 - ] 4-SPOKE (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-60490-B0
Wheel Assy, Steering
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ４本スポーク，レザー,DK.GRAY,TRIM1# |
45100-60490-B0 |
— | ||
| replacement | |||||
|
45100
|
45100
45100-60490-C0 Wheel Assy, Steering[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ４本スポーク，レザー,DK.GRAY,TRIM1# |
45100-60490-C0 |
US $903.30 |
||
|
45100
|
45100
45100-60490-E0 Wheel Assy, Steering[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ４本スポーク，レザー,SANDAL WOOD,TRIM0# |
45100-60490-E0 |
US $835.16 |
||
|
45100
|
45100
45100-60500-B0 Wheel Assy, Steering[08.2002 - 05.2005] HDJ101,UZJ100..VXL ４本スポーク，ウッド＆レザー,DK.GRAY,TRIM1# |
45100-60500-B0 |
US $2,067.52 |
||
| replacement | |||||
|
45100
|
45100
45100-60500-C0 Wheel Assy, Steering[08.2002 - 05.2005] HDJ101,UZJ100..VXL ４本スポーク，ウッド＆レザー,DK.GRAY,TRIM1# |
45100-60500-C0 |
US $1,703.52 |
||
|
45100
|
45100
45100-60500-E0 Wheel Assy, Steering[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ４本スポーク，ウッド＆レザー,SANDAL WOOD,TRIM0# |
45100-60500-E0 |
US $1,991.81 |
||
|
45100
|
45100
45100-60590-B0 Wheel Assy, Steering[04.2006 - 06.2007] HDJ101,UZJ100..CYG,VXL ４本スポーク，ウッド＆レザー,60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*( U),*(V),*(W),DK.GRAY,TRIM1# |
45100-60590-B0 |
US $2,067.52 |
||
|
45130
|
45130
45130-60290-B0 Button Assy, Horn[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1# |
45130-60290-B0 |
US $1,039.58 |
||
| replacement | |||||
|
45130
|
45130
45130-60291-B0 Button Assy, Horn[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1# |
45130-60291-B0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60290-E0 Button Assy, Horn[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0# |
45130-60290-E0 |
US $1,039.58 |
||
| replacement | |||||
|
45130
|
45130
45130-60291-E0 Button Assy, Horn[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0# |
45130-60291-E0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60291-B0 Button Assy, Horn[11.2005 - 08.2007] HDJ101,UZJ100..VX,VXL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1# |
45130-60291-B0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60291-E0 Button Assy, Horn[11.2005 - 08.2007] HDJ101,UZJ100..VX,VXL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0# |
45130-60291-E0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60320-B0 Button Assy, Horn[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1# |
45130-60320-B0 |
US $1,039.58 |
||
| replacement | |||||
|
45130
|
45130
45130-60321-B0 Button Assy, Horn[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1# |
45130-60321-B0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60320-E0 Button Assy, Horn[08.2002 - 05.2005] HDJ101,UZJ100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0# |
45130-60320-E0 |
US $1,039.58 |
||
| replacement | |||||
|
45130
|
45130
45130-60321-E0 Button Assy, Horn[08.2002 - 05.2005] HDJ101,UZJ100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0# |
45130-60321-E0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60321-B0 Button Assy, Horn[11.2005 - 08.2007] HDJ101,UZJ100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.GRAY,TRIM1# |
45130-60321-B0 |
US $1,039.58 |
||
|
45130
|
45130
45130-60321-E0 Button Assy, Horn[11.2005 - 08.2007] HDJ101,UZJ100 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0# |
45130-60321-E0 |
US $1,039.58 |
||
|
45186
|
45186
45186-58020-B0 Cover, Steering Wheel, Lower No.2[08.2002 - 05.2005] HDJ101,UZJ100..VXL ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),DK.GRAY,TRIM1# |
45186-58020-B0 |
from US $3.80 |
||
|
45186
|
45186
45186-58020-E1 Cover, Steering Wheel, Lower No.2[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),SANDAL WOOD,TRIM0# |
45186-58020-E1 |
US $5.73 |
||
| replacement | |||||
|
45186
|
45186
45186-58020-B0 Cover, Steering Wheel, Lower No.2[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),SANDAL WOOD,TRIM0# |
45186-58020-B0 |
from US $3.80 |
||
|
45187
|
45187
45187-58010-B0 Cover, Steering Wheel, Lower No.3[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL DK.GRAY,TRIM1# |
45187-58010-B0 |
from US $3.71 |
||
|
45187
|
45187
45187-58010-E1
Cover, Steering Wheel, Lower No.3
[08.2002 - 05.2005] HDJ101,UZJ100 SANDAL WOOD,TRIM0# |
45187-58010-E1 |
— | ||
| replacement | |||||
|
45187
|
45187
45187-58010-B0 Cover, Steering Wheel, Lower No.3[08.2002 - 05.2005] HDJ101,UZJ100 SANDAL WOOD,TRIM0# |
45187-58010-B0 |
from US $3.71 |
||
|
45188
|
45188
45188-60010 Screw, Steering Wheel Pad Attaching[08.2002 - 05.2005] HDJ101,UZJ100 長さ＝１８ |
45188-60010 |
US $2.87 |
||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[08.2002 - 05.2005] HDJ101,UZJ100 |
90179-12071 |
from US $1.48 |
||
|
45713A
|
45713A
45713-60030 Damper, Steering Shake[08.2002 - 05.2005] HDJ101 |
45713-60030 |
US $39.98 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.67 |
||
|
9016840113
|
9016840113
90168-40113 Screw, Steering Wheel Pad Attaching |
90168-40113 |
US $1.08 |
||
