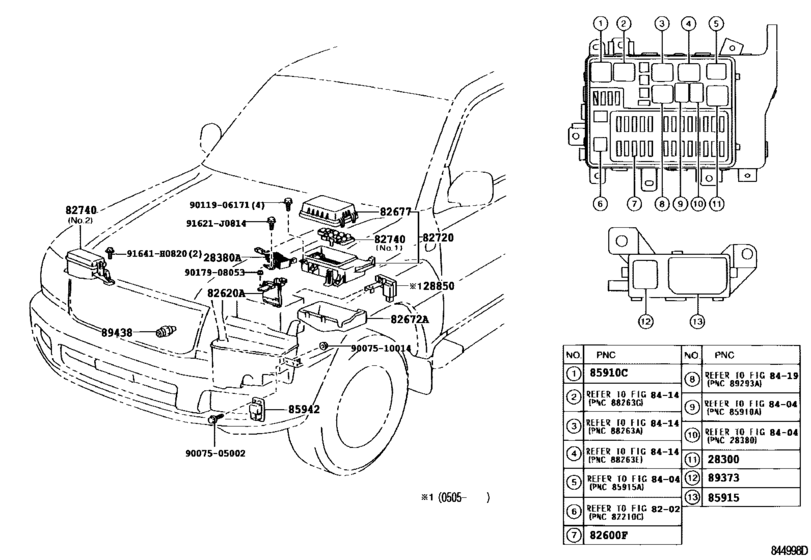

Switch & Relay & Computer ([08.2002 - ] ｴﾝｼﾞﾝ ﾙ-ﾑ (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
90987-02025 Relay[08.2002 - 05.2005] 1HDFTE,2UZFE..HDJ101,UZJ100 |
90987-02025 |
from US $48.62 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 １０Ａ，ミニ ヒューズ |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $0.48 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.91 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 ２５Ａ，ミニ ヒューズ |
90982-09012 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 ３０Ａ，ミニ ヒューズ |
90982-09013 |
from US $0.91 |
||
|
82620A
|
82620A
82620-60030 Block Assy, Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 |
82620-60030 |
from US $35.74 |
||
|
82672A
|
82672A
82674-60010 Cover, Junction Block[08.2002 - 05.2005] HDJ101,UZJ100 |
82674-60010 |
from US $39.12 |
||
|
82677
|
82677
82677-60040 Cover, Junction Block, Upper No.2[08.2002 - 05.2005] HDJ101 |
82677-60040 |
from US $33 |
||
|
82720
|
82720
82720-60070 Block Assy, Engine Room Junction[08.2002 - 05.2005] HDJ101 |
82720-60070 |
from US $314.56 |
||
|
82740
|
82740
82740-60020 Block Assy, Engine Room Relay[08.2002 - 05.2005] HDJ101,UZJ100 ＮＯ．１ |
82740-60020 |
from US $46.06 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[08.2002 - 05.2005] HDJ101,UZJ100 |
90987-04010 |
from US $46.95 |
||
|
85942
|
85942
85942-33010 Relay, Cleaner Control[08.2002 - 05.2005] HDJ101,UZJ100 |
85942-33010 |
from US $154.20 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[08.2002 - 05.2005] HDJ101 |
89438-33010 |
from US $29.01 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.67 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
9007505002
|
9007505002
90075-05002 New Genuine Part |
90075-05002 |
US $1.14 |
||
|
9007510014
|
9007510014
90075-10014 New Genuine Part |
90075-10014 |
US $1.05 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.33 |
||
|
9017908053
|
9017908053
90179-08053 Nut (For Differential Side Gear Shaft) |
90179-08053 |
from US $1.41 |
