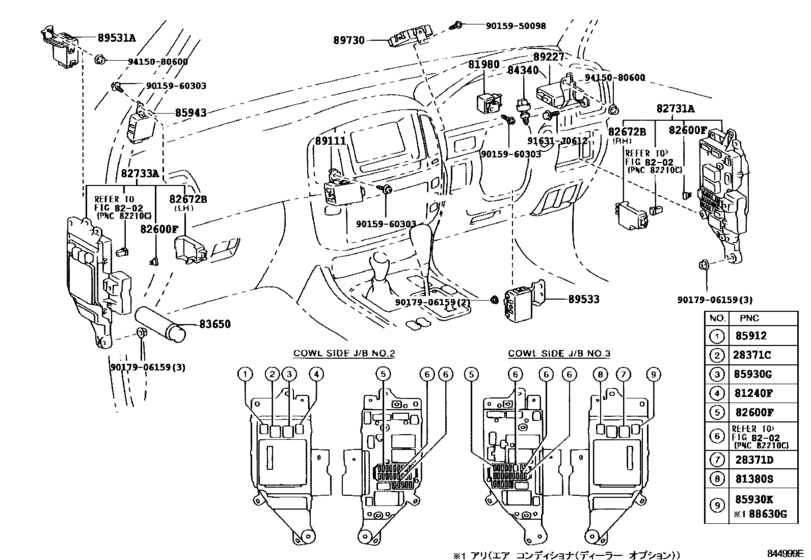

Switch & Relay & Computer ([08.2002 - ] ｶｳﾙ (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371C
|
28371C
90987-02025 Relay[08.2002 - 05.2005] 1HDFTE,2UZFE..HDJ101,UZJ100 |
90987-02025 |
from US $48.62 |
||
|
28371D
|
28371D
90987-02025 Relay[08.2002 - 05.2005] 1HDFTE,2UZFE..HDJ101,UZJ100 |
90987-02025 |
from US $48.62 |
||
|
81240F
|
81240F
90987-02022 Relay, Starter Cut[08.2002 - 05.2005] HDJ101,UZJ100 |
90987-02022 |
from US $50.18 |
||
|
81380S
|
81380S
90987-02022 Relay, Starter Cut[08.2002 - 05.2005] HDJ101,UZJ100..VXL |
90987-02022 |
from US $50.18 |
||
|
81980
|
81980
81980-60030 Flasher Assy, Turn Signal[08.2002 - 05.2005] HDJ101,UZJ100 |
81980-60030 |
from US $73.17 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 １０Ａ，ミニ ヒューズ |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $0.48 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.91 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 ２５Ａ，ミニ ヒューズ |
90982-09012 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 ３０Ａ，ミニ ヒューズ |
90982-09013 |
from US $0.91 |
||
|
82672B
|
82672B
82672-60030 Cover, Junction Block[08.2002 - 05.2005] HDJ101,UZJ100 左側 |
82672-60030 |
US $13.10 |
||
|
82672B
|
82672B
82672-60031 Cover, Junction Block[05.2005 -] HDJ101,UZJ100 左側 |
82672-60031 |
US $13.54 |
||
|
82672B
|
82672B
82672-60060 Cover, Junction Block[08.2002 - 05.2005] HDJ101,UZJ100 右側 |
82672-60060 |
US $13.10 |
||
|
82731A
|
82731A
82731-60100 Block, Cowl Side Junction, Rh[08.2002 - 05.2005] HDJ101,UZJ100..VXL |
82731-60100 |
US $639.48 |
||
|
82733A
|
82733A
82733-60130 Block, Cowl Side Junction, Lh[08.2002 - 12.2003] HDJ101,UZJ100 |
82733-60130 |
US $658.69 |
||
|
82733A
|
82733A
82733-60131 Block, Cowl Side Junction, Lh[12.2003 - 05.2005] HDJ101,UZJ100 |
82733-60131 |
US $693.06 |
||
|
83650
|
83650
90986-01005
Fusee
[08.2002 - 05.2005] HDJ101,UZJ100 |
90986-01005 |
— | ||
|
84340
|
84340
84340-42020 Switch Assy, Stop Lamp[08.2002 - 05.2005] HDJ101,UZJ100 |
84340-42020 |
from US $19.87 |
||
|
84340
|
84340
84340-47020 Switch Assy, Stop Lamp[05.2005 -] HDJ101,UZJ100 |
84340-47020 |
from US $48.30 |
||
|
85912
|
85912
90987-04004 Relay, Starter Cut[08.2002 - 05.2005] HDJ101,UZJ100 |
90987-04004 |
from US $47.21 |
||
|
85930G
|
85930G
90987-02025 Relay[08.2002 - 05.2005] HDJ101,UZJ100 |
90987-02025 |
from US $48.62 |
||
|
88630G
|
88630G
90987-04004 Relay, Starter Cut[08.2002 - 05.2005] HDJ101 |
90987-04004 |
from US $47.21 |
||
|
89111
|
89111
89111-60030 Computer, Network Gateway[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
89111-60030 |
US $286.54 |
||
|
89227
|
89227
89227-60070 Computer, Multiplex Tilt & Telescopic[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
89227-60070 |
US $430.98 |
||
|
89531A
|
89531A
89531-60040 Relay, Transmission Control[08.2002 - 05.2005] HDJ101,UZJ100 |
89531-60040 |
US $220.15 |
||
|
89533
|
89533
89533-60200
Computer, 4 Wheel Drive Control
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
89533-60200 |
— | ||
|
89730
|
89730
89730-60030 Computer Assy, Security Warning[08.2002 - 05.2005] HDJ101,UZJ100 |
89730-60030 |
US $566.38 |
||
|
89730
|
89730
89730-60050 Computer Assy, Security Warning[05.2005 -] HDJ101,UZJ100 |
89730-60050 |
US $566.38 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
