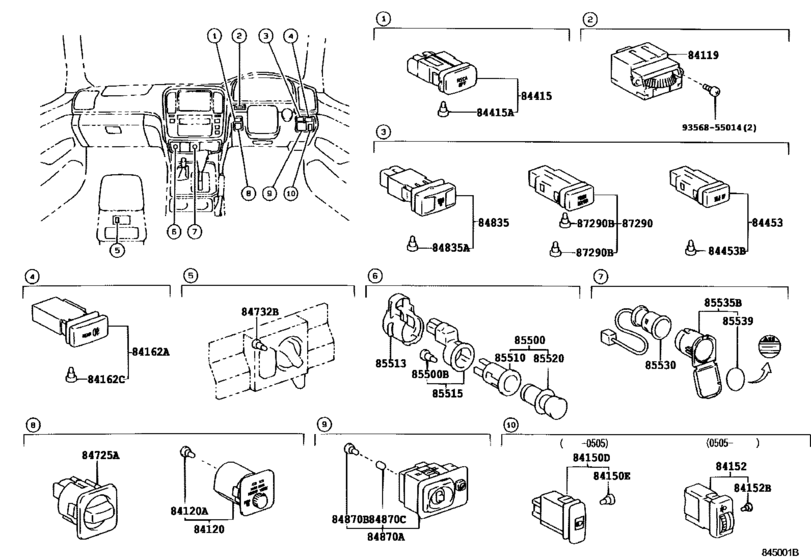

Switch & Relay & Computer ([08.2002 - ] ｲﾝﾊﾟﾈ ｽｲﾂﾁ (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-60130 Rheostat, Light Control[08.2002 - 05.2005] HDJ101,UZJ100 |
84119-60130 |
US $118.81 |
||
|
84150D
|
84150D
84150-60030 Switch Assy, Headlamp Cleaner[08.2002 - 05.2005] HDJ101,UZJ100 |
84150-60030 |
US $60.28 |
||
|
84150E
|
84150E
90010-01039 Blub, Center Cluster Module Switch[08.2002 - 05.2005] HDJ101,UZJ100 １４Ｖ０．９１Ｗ，グリーン キャップ付き |
90010-01039 |
from US $3.08 |
||
|
84152
|
84152
84152-44020 Switch, Headlamp Leveling[05.2005 -] HDJ101,UZJ100 |
84152-44020 |
from US $74.95 |
||
|
84152B
|
84152B
90010-08107 Bulb (For Headlamp Leveling Switch)[05.2005 -] HDJ101,UZJ100 １４Ｖ ４０ＭＡ，グリーン キャップ付き |
90010-08107 |
from US $2.60 |
||
|
84162A
|
84162A
84165-60050 Switch, Rear Fog Lamp[08.2002 - 05.2005] HDJ101,UZJ100 |
84165-60050 |
US $57.51 |
||
|
84162C
|
84162C
90010-01039 Blub, Center Cluster Module Switch[08.2002 - 05.2005] HDJ101,UZJ100 １４Ｖ０．９１Ｗ，グリーン キャップ付き |
90010-01039 |
from US $3.08 |
||
|
84415
|
84415
84415-60020 Switch, Curtain Airbag Cutoff[08.2002 - 05.2005] HDJ101,UZJ100 |
84415-60020 |
US $57.51 |
||
|
84415A
|
84415A
90010-01061 Bulb (For Headlamp Leveling Switch)[08.2002 - 05.2005] HDJ101,UZJ100 |
90010-01061 |
from US $3.44 |
||
|
84453
|
84453
84453-60040 Switch, Idle Up[08.2002 - 05.2005] HDJ101 |
84453-60040 |
US $60.45 |
||
|
84453B
|
84453B
90010-01039 Blub, Center Cluster Module Switch[08.2002 - 05.2005] HDJ101 |
90010-01039 |
from US $3.08 |
||
|
84725A
|
84725A
84725-60030 Switch, Center Differential Lock[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
84725-60030 |
from US $29.81 |
||
|
84732B
|
84732B
84999-70007 Bulb, Air Conditioner Control[08.2002 - 05.2005] HDJ101;UZJ100..VX １４Ｖ １．４Ｗ |
84999-70007 |
from US $7.30 |
||
|
84870A
|
84870A
84870-60080 Switch Assy, Outer Mirror[08.2002 - 05.2005] HDJ101,UZJ100 |
84870-60080 |
from US $116.44 |
||
|
84870B
|
84870B
84999-10470 Bulb, Hazard Warning Signal Switch[08.2002 - 05.2005] HDJ101,UZJ100 １４Ｖ １．１２Ｗ |
84999-10470 |
from US $4.92 |
||
|
84870C
|
84870C
84998-10430 Cap, Outer Mirror Switch Bulb[08.2002 - 05.2005] HDJ101,UZJ100 |
84998-10430 |
from US $1.71 |
||
|
85500
|
85500
85500-89106
Lighter Assy, Cigarette
[08.2002 - 05.2005] HDJ101,UZJ100 |
85500-89106 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[08.2002 - 05.2005] HDJ101,UZJ100 |
85500-12240 |
from US $26.71 |
||
|
85500B
|
85500B
90010-01022 Bulb, Key Cylinder Lamp[08.2002 - 05.2005] HDJ101,UZJ100 １４Ｖ １．４Ｗ，グリーン キャップ付き |
90010-01022 |
from US $2.51 |
||
|
85510
|
85510
85510-16040 Socket & Retainer Assy, Cigarlighter[08.2002 - 05.2005] HDJ101,UZJ100 |
85510-16040 |
US $27.05 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[08.2002 - 05.2005] HDJ101,UZJ100 |
85513-12020 |
from US $4.85 |
||
|
85515
|
85515
85515-60010 Stay, Cigarette Lighter Bezel[08.2002 - 05.2005] HDJ101,UZJ100 |
85515-60010 |
from US $6.76 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[08.2002 - 05.2005] HDJ101,UZJ100 |
85520-89101 |
from US $16.74 |
||
|
85530
|
85530
85530-33020 Socket Assy, Power Outlet, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
85530-33020 |
from US $14.95 |
||
| replacement | |||||
|
85530
|
85530
85530-06010 Socket Assy, Power Outlet, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
85530-06010 |
from US $26.06 |
||
|
85535B
|
85535B
85535-60030-C0
Cover, Power Outlet Socket, No.1
[08.2002 - 05.2005] HDJ101,UZJ100 BLACK,TRIM0#,1# |
85535-60030-C0 |
— | ||
| replacement | |||||
|
85535B
|
85535B
85535-60040-C0 Cover, Power Outlet Socket (BLACK)[08.2002 - 05.2005] HDJ101,UZJ100 BLACK,TRIM0#,1# |
85535-60040-C0 |
from US $10.05 |
||
|
85539
|
85539
85539-60010 Label, Power Outlet Notice[08.2002 - 05.2005] HDJ101,UZJ100 |
85539-60010 |
US $1.14 |
||
|
87290
|
87290
87290-60060 Switch Assy, Heater[08.2002 - 05.2005] HDJ101 |
87290-60060 |
US $67.97 |
||
|
87290B
|
87290B
84999-10310 Bulb, Air Conditioner Control[08.2002 - 05.2005] HDJ101 １４Ｖ ０．９１Ｗ |
84999-10310 |
from US $2.85 |
||
|
87290B
|
87290B
90010-01039 Blub, Center Cluster Module Switch[08.2002 - 05.2005] HDJ101 １４Ｖ０．９１Ｗ，グリーン キャップ付き |
90010-01039 |
from US $3.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
