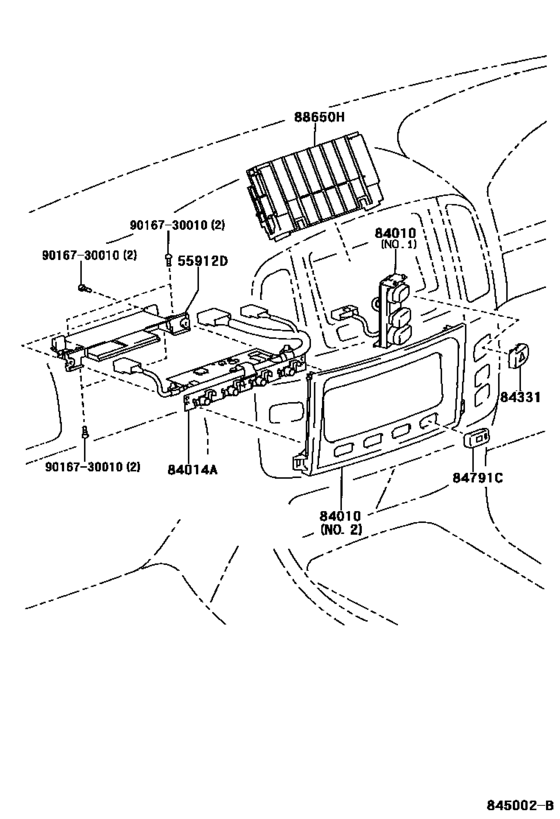

Switch & Relay & Computer ([08.2002 - ] ｾﾝﾀｸﾗｽﾀ ｲﾝﾃｸﾞﾚ-ｼﾖﾝ (0208- )VX,VXL) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55912D
|
55912D
55912-60170
Housing, Heater Control
[08.2002 - 05.2005] HDJ101,UZJ100..VXL |
55912-60170 |
— | ||
|
84010
|
84010
84010-60480 Switch Assy, Center Cluster Integration[12.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ＮＯ．１ |
84010-60480 |
from US $97.41 |
||
|
84010
|
84010
84010-60490 Switch Assy, Center Cluster Integration[08.2002 - 12.2002] HDJ101,UZJ100..VX,VXL ＮＯ．１ |
84010-60490 |
US $70.76 |
||
|
84010
|
84010
84012-60300 Switch Assy, Center Cluster Integration[08.2002 - 05.2005] HDJ101,UZJ100..VXL ＮＯ．２ |
84012-60300 |
US $64.06 |
||
|
84014A
|
84014A
84014-60250
Board Sub-Assy, Printed Wire Integration, No.2
[08.2002 - 05.2005] HDJ101,UZJ100..VXL |
84014-60250 |
— | ||
|
84331
|
84331
84331-60050
Knob, Hazard Warning Signal Switch
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
84331-60050 |
— | ||
|
84791C
|
84791C
84791-60030
Knob, Defogger Time Switch
[08.2002 - 05.2005] HDJ101,UZJ100..VXL |
84791-60030 |
— | ||
|
88650H
|
88650H
88650-60870
Amplifier Assy, Air Conditioner
[08.2002 - 08.2003] HDJ101 |
88650-60870 |
— | ||
|
88650H
|
88650H
88650-60871
Amplifier Assy, Air Conditioner
[08.2003 - 05.2005] HDJ101 |
88650-60871 |
— | ||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
