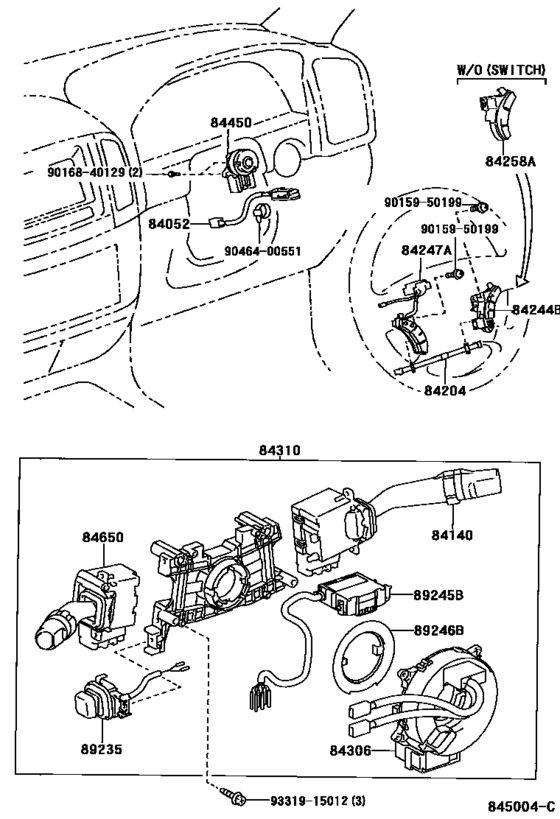

Switch & Relay & Computer ([08.2002 - ] ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-33040 Switch Assy, Un-Lock Warning[08.2002 - 05.2005] HDJ101,UZJ100 |
84052-33040 |
US $22.54 |
||
|
84140
|
84140
84140-26160 Switch Assy, Headlamp Dimmer[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
84140-26160 |
US $154.16 |
||
|
84204
|
84204
84204-58010 Cable Sub-Assy, Steering Pad Switch[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL |
84204-58010 |
from US $33.08 |
||
|
84244B
|
84244B
84244-60061-B0 Switch, Steering Pad, Rh[08.2003 - 05.2005] HDJ101,UZJ100..VXL DK.GRAY,TRIM1# |
84244-60061-B0 |
US $93.18 |
||
| replacement | |||||
|
84244B
|
84244B
84244-60061-C0 Switch, Steering Pad, Rh[08.2003 - 05.2005] HDJ101,UZJ100..VXL DK.GRAY,TRIM1# |
84244-60061-C0 |
from US $48.45 |
||
|
84244B
|
84244B
84244-60061-E0 Switch, Steering Pad, Rh[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL SANDAL WOOD,TRIM0# |
84244-60061-E0 |
from US $75.71 |
||
|
84247A
|
84247A
84247-58020-B0 Switch, Steering Pad, Lh[08.2003 - 05.2005] HDJ101,UZJ100..VXL DK.GRAY,TRIM1# |
84247-58020-B0 |
US $132.84 |
||
|
84247A
|
84247A
84247-58020-E1 Switch, Steering Pad, Lh[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL SANDAL WOOD,TRIM0# |
84247-58020-E1 |
from US $90.27 |
||
|
84247A
|
84247A
84247-60020-B0 Switch, Steering Pad, Lh[08.2002 - 08.2003] HDJ101,UZJ100..VXL DK.GRAY,TRIM1# |
84247-60020-B0 |
US $109.20 |
||
|
84247A
|
84247A
84247-60020-E0 Switch, Steering Pad, Lh[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL SANDAL WOOD,TRIM0# |
84247-60020-E0 |
US $109.20 |
||
| replacement | |||||
|
84247A
|
84247A
84247-60020-B0 Switch, Steering Pad, Lh[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL SANDAL WOOD,TRIM0# |
84247-60020-B0 |
US $109.20 |
||
|
84258A
|
84258A
84258-58010-B0
Cover, Steering Pad, Rh
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL DK.GRAY,TRIM1# |
84258-58010-B0 |
— | ||
| replacement | |||||
|
84258A
|
84258A
84258-58010-C0 Cover, Steering Pad, Rh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL DK.GRAY,TRIM1# |
84258-58010-C0 |
US $22.13 |
||
|
84258A
|
84258A
84258-58010-E1 Cover, Steering Pad, Rh[08.2002 - 05.2005] HDJ101,UZJ100 SANDAL WOOD,TRIM0# |
84258-58010-E1 |
US $22.89 |
||
|
84306
|
84306
84306-33090
Cable Sub-Assy, Spiral
[08.2002 - 04.2003] HDJ101,UZJ100..VX,VXL |
84306-33090 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-60080 Cable Sub-Assy, Spiral[08.2002 - 04.2003] HDJ101,UZJ100..VX,VXL |
84306-60080 |
from US $165.98 |
||
|
84306
|
84306
84306-60080 Cable Sub-Assy, Spiral[04.2003 - 05.2005] HDJ101,UZJ100 ｱﾘ(AHC) |
84306-60080 |
from US $165.98 |
||
|
84310
|
84310
84310-60B70 Switch Assy, Turn Signal[05.2005 -] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-60B70 |
84310-60B70 |
US $668.30 |
||
|
84310
|
84310
84310-60B80 Switch Assy, Turn Signal[05.2005 -] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-60B80 |
84310-60B80 |
US $628.99 |
||
|
84310
|
84310
84310-60B90 Switch Assy, Turn Signal[05.2005 -] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-60B90 |
84310-60B90 |
US $668.30 |
||
|
84310
|
84310
84310-60C00 Switch Assy, Turn Signal[05.2005 -] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-60C00 |
84310-60C00 |
US $628.99 |
||
|
84310
|
84310
84310-60C10 Switch Assy, Turn Signal[05.2005 -] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-60C10 |
84310-60C10 |
US $576.58 |
||
| replacements | |||||
|
84310
|
84310
84140-26160 Switch Assy, Headlamp Dimmer[05.2005 -] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-60C10 |
84140-26160 |
US $154.16 |
||
|
84310
|
84310
84306-60080 Cable Sub-Assy, Spiral[05.2005 -] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-60C10 |
84306-60080 |
from US $165.98 |
||
|
84310
|
84310
84319-60060 Housing, Steering Wheel Switch[05.2005 -] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-60C10 |
84319-60060 |
US $36.40 |
||
|
84310
|
84310
84652-60A10 Switch Assy, Windshield Wiper[05.2005 -] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-60C10 |
84652-60A10 |
US $177.63 |
||
|
84310
|
84310
84310-6B110
Switch Assy, Turn Signal
[08.2002 - 05.2005] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-6B110 |
84310-6B110 |
— | ||
|
84310
|
84310
84310-6B120 Switch Assy, Turn Signal[08.2002 - 05.2005] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-6B120 |
84310-6B120 |
US $391.66 |
||
| replacements | |||||
|
84310
|
84310
84652-35492 Switch Assy, Windshield Wiper[08.2002 - 05.2005] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-6B120 |
84652-35492 |
US $127.92 |
||
|
84310
|
84310
84140-26160 Switch Assy, Headlamp Dimmer[08.2002 - 05.2005] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-6B120 |
84140-26160 |
US $154.16 |
||
|
84310
|
84310
84306-60080 Cable Sub-Assy, Spiral[08.2002 - 05.2005] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-6B120 |
84306-60080 |
from US $165.98 |
||
|
84310
|
84310
84319-33020 Housing, Steering Wheel Switch[08.2002 - 05.2005] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-6B120 |
84319-33020 |
US $26.79 |
||
|
84310
|
84310
84310-6B310 Switch Assy, Turn Signal[08.2003 - 05.2005] HDJ101 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-6B310 |
84310-6B310 |
US $624.62 |
||
|
84310
|
84310
84310-6B330 Switch Assy, Turn Signal[08.2002 - 05.2005] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-6B330 |
84310-6B330 |
US $662.48 |
||
|
84310
|
84310
84310-6B340 Switch Assy, Turn Signal[08.2003 - 05.2005] HDJ101 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-6B340 |
84310-6B340 |
US $662.48 |
||
|
84310
|
84310
84310-6B410 Switch Assy, Turn Signal[08.2002 - 07.2004] HDJ101,UZJ100..VXL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84310-6B410 |
84310-6B410 |
US $509.60 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[08.2002 - 05.2005] HDJ101,UZJ100 |
84450-12200 |
from US $54.43 |
||
|
84650
|
84650
84652-35491
Switch Assy, Windshield Wiper
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
84652-35491 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-35492 Switch Assy, Windshield Wiper[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
84652-35492 |
US $127.92 |
||
|
84650
|
84650
84652-60A10 Switch Assy, Windshield Wiper[05.2005 -] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾍﾂﾄﾞﾗﾝﾌﾟｸﾘ-ﾅ) |
84652-60A10 |
US $177.63 |
||
|
89235
|
89235
89235-60010 Switch, Tilt Steering[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
89235-60010 |
US $49.62 |
||
|
89245B
|
89245B
89245-33010 Sensor, Steering[08.2002 - 05.2005] UZJ100..VXL; HDJ101 ｱﾘ(AHC) |
89245-33010 |
from US $301.82 |
||
|
89245B
|
89245B
89245-60020 Sensor, Steering[08.2003 - 05.2005] HDJ101 ｱﾘ(VGRS) |
89245-60020 |
US $326.73 |
||
|
89246B
|
89246B
89246-22020 Disc, Sensor Steering[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
89246-22020 |
from US $78.64 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.67 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $1.08 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
