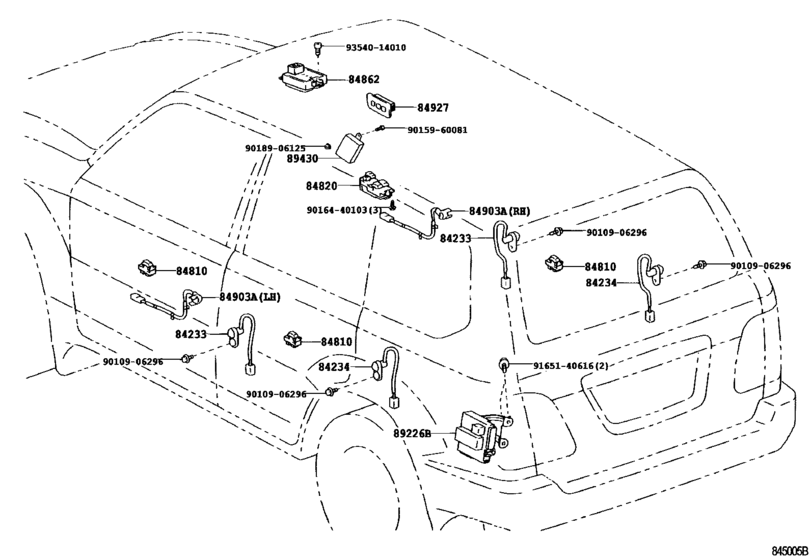

Switch & Relay & Computer ([08.2002 - ] ﾄｱ, ﾙ-ﾌ (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[08.2002 - 05.2005] HDJ101,UZJ100 |
84231-60070 |
from US $11.83 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[08.2002 - 05.2005] HDJ101,UZJ100 |
84231-60070 |
from US $11.83 |
||
|
84810
|
84810
84030-60070 Switch Assy, Power Window Regulator[08.2002 - 05.2005] HDJ101,UZJ100 |
84030-60070 |
US $165.98 |
||
| replacement | |||||
|
84810
|
84810
84030-60071
Switch Assy, Power Window Regulator
[08.2002 - 05.2005] HDJ101,UZJ100 |
84030-60071 |
— | ||
|
84810
|
84810
84030-60071
Switch Assy, Power Window Regulator
[08.2005 - 08.2007] HDJ101,UZJ100 |
84030-60071 |
— | ||
|
84820
|
84820
84040-60080
Master Switch Assy, Power Window Regulator
[08.2002 - 05.2005] HDJ101,UZJ100 |
84040-60080 |
— | ||
| replacement | |||||
|
84820
|
84820
84040-60081 Master Switch Assy, Power Window Regulator[08.2002 - 05.2005] HDJ101,UZJ100 |
84040-60081 |
from US $478.92 |
||
|
84820
|
84820
84040-60081 Master Switch Assy, Power Window Regulator[08.2005 - 08.2007] HDJ101,UZJ100 |
84040-60081 |
from US $478.92 |
||
|
84862
|
84862
84862-60020-A1
Switch, Slide Roof Motor
[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0# |
84862-60020-A1 |
— | ||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0# |
84862-60021-B0 |
US $82.12 |
||
|
84862
|
84862
84862-60020-B1 Switch, Slide Roof Motor[08.2002 - 05.2005] HDJ101,UZJ100..VXL STONE,TRIM1# |
84862-60020-B1 |
US $84.45 |
||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[08.2002 - 05.2005] HDJ101,UZJ100..VXL STONE,TRIM1# |
84862-60021-B0 |
US $82.12 |
||
|
84862
|
84862
84862-60021-A1
Switch, Slide Roof Motor
[10.2005 - 08.2007] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0# |
84862-60021-A1 |
— | ||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[10.2005 - 08.2007] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0# |
84862-60021-B0 |
US $82.12 |
||
|
84862
|
84862
84862-60021-B1 Switch, Slide Roof Motor[10.2005 - 08.2007] HDJ101,UZJ100..CYG,VXL STONE,TRIM1# |
84862-60021-B1 |
US $84.45 |
||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[10.2005 - 08.2007] HDJ101,UZJ100..CYG,VXL STONE,TRIM1# |
84862-60021-B0 |
US $82.12 |
||
|
84903A
|
84903A
84903-60060 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] HDJ101,UZJ100 左側 |
84903-60060 |
US $60.28 |
||
|
84903A
|
84903A
84903-60070 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] HDJ101,UZJ100 右側 |
84903-60070 |
US $62.03 |
||
|
84903A
|
84903A
84903-60080 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] HDJ101,UZJ100 バックドア |
84903-60080 |
US $43.51 |
||
|
9010906296
|
9010906296
90109-06296 BOLT |
90109-06296 |
US $1.61 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.25 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.72 |
||
|
9018906125
|
9018906125
90189-06125 NUT |
90189-06125 |
US $2.33 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.89 |
||
