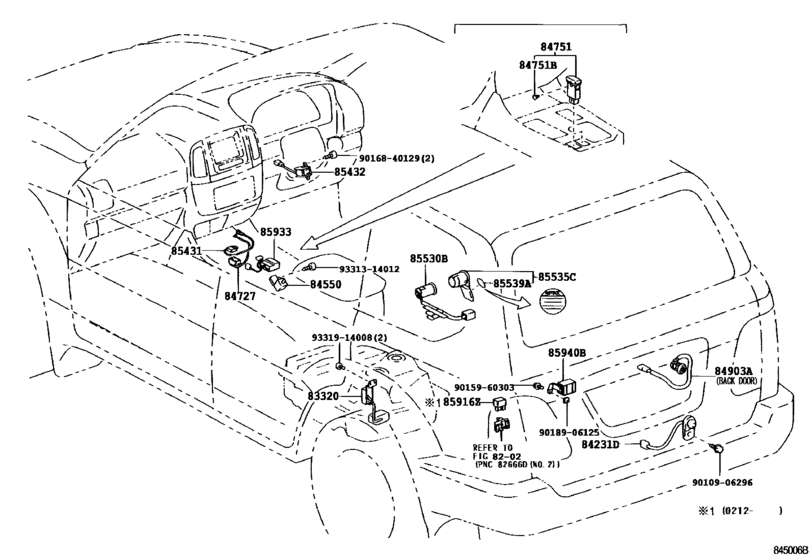

Switch & Relay & Computer ([08.2002 - ] ﾌﾛｱ, ﾊﾞﾂｸ ﾄﾞｱ (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-60340 Gage Assy, Fuel Sender[08.2002 - 05.2005] HDJ101,UZJ100 |
83320-60340 |
from US $128.12 |
||
|
84231D
|
84231D
84231-60040 Switch, Courtesy Lamp (For Tire Carrier)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
84231-60040 |
US $15.20 |
||
| replacement | |||||
|
84231D
|
84231D
84231-28080 Switch, Courtesy Lamp (For Slide Door)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
84231-28080 |
from US $13.62 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[08.2002 - 05.2005] HDJ101,UZJ100 |
84550-16060 |
from US $19.32 |
||
|
84727
|
84727
84727-53020
Switch, Shift Lock Control
[08.2002 - 05.2005] HDJ101,UZJ100 |
84727-53020 |
— | ||
|
84751
|
84751
84751-60070 Switch, Seat Heater[08.2002 - 05.2005] HDJ101,UZJ100 右側 |
84751-60070 |
US $61.44 |
||
|
84751
|
84751
84751-60080 Switch, Seat Heater[08.2002 - 05.2005] HDJ101,UZJ100 左側 |
84751-60080 |
US $61.44 |
||
|
84751B
|
84751B
84999-10310 Bulb, Air Conditioner Control[08.2002 - 05.2005] HDJ101,UZJ100 １４Ｖ ０．９１Ｗ |
84999-10310 |
from US $2.85 |
||
|
84903A
|
84903A
84903-60060 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] HDJ101,UZJ100 左側 |
84903-60060 |
US $60.28 |
||
|
84903A
|
84903A
84903-60070 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] HDJ101,UZJ100 右側 |
84903-60070 |
US $62.03 |
||
|
84903A
|
84903A
84903-60080 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] HDJ101,UZJ100 バックドア |
84903-60080 |
US $43.51 |
||
|
85431
|
85431
85431-35090 Solenoid, Shift Lock[08.2002 - 05.2005] HDJ101,UZJ100 |
85431-35090 |
US $39.84 |
||
|
85432
|
85432
85432-60050 Solenoid, Key Inter Lock[08.2002 - 05.2005] HDJ101,UZJ100 |
85432-60050 |
US $62.38 |
||
|
85530B
|
85530B
85530-60010 Socket Assy, Power Outlet, Rear No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
85530-60010 |
from US $33.16 |
||
|
85535C
|
85535C
85535-60030-A1 Cover, Power Outlet Socket, Rear[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
85535-60030-A1 |
US $11.65 |
||
| replacement | |||||
|
85535C
|
85535C
85535-60040-C0 Cover, Power Outlet Socket (BLACK)[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
85535-60040-C0 |
from US $10.05 |
||
|
85535C
|
85535C
85535-60030-B1 Cover, Power Outlet Socket, Rear[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
85535-60030-B1 |
US $11.65 |
||
| replacement | |||||
|
85535C
|
85535C
85535-60040-C0 Cover, Power Outlet Socket (BLACK)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
85535-60040-C0 |
from US $10.05 |
||
|
85539A
|
85539A
85539-60010 Label, Power Outlet Notice[08.2002 - 05.2005] HDJ101,UZJ100 |
85539-60010 |
US $1.14 |
||
|
85916Z
|
85916Z
90987-02022 Relay, Starter Cut[12.2002 - 05.2005] HDJ101,UZJ100 |
90987-02022 |
from US $50.18 |
||
|
85933
|
85933
85933-60080 Computer, Shift Lock Control[08.2002 - 05.2005] HDJ101,UZJ100 |
85933-60080 |
US $110.66 |
||
|
85940B
|
85940B
85940-60110 Relay Assy, Rear Wiper[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
85940-60110 |
from US $152.88 |
||
|
9010906296
|
9010906296
90109-06296 BOLT |
90109-06296 |
US $1.61 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $1.08 |
||
|
9018906125
|
9018906125
90189-06125 NUT |
90189-06125 |
US $2.33 |
||
|
9331314012
|
9331314012
93313-14012 SCREW |
93313-14012 |
US $1.08 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.43 |
||
