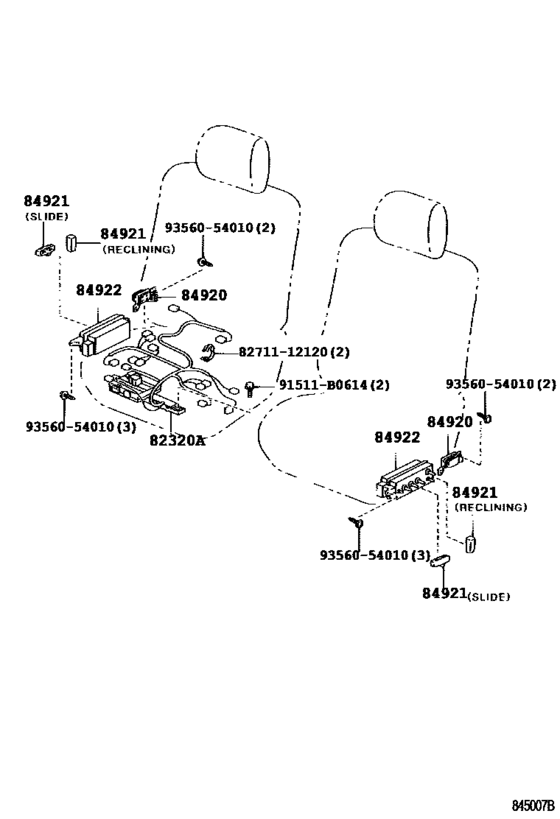

Switch & Relay & Computer ([08.2002 - ] ｼ-ﾄ (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84920
|
84920
84920-24010-A0
Switch Assy, Power Seat
[08.2002 - 07.2004] HDJ101,UZJ100 IVORY,TRIM0# |
84920-24010-A0 |
— | ||
| replacement | |||||
|
84920
|
84920
84920-24010-C0 Switch Assy, Power Seat (Black)[08.2002 - 07.2004] HDJ101,UZJ100 IVORY,TRIM0# |
84920-24010-C0 |
US $52.42 |
||
|
84920
|
84920
84920-24010-B3
Switch Assy, Power Seat
[08.2002 - 07.2004] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
84920-24010-B3 |
— | ||
| replacement | |||||
|
84920
|
84920
84920-24010-C0 Switch Assy, Power Seat (Black)[08.2002 - 07.2004] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
84920-24010-C0 |
US $52.42 |
||
|
84920
|
84920
84920-60060-A0
Switch Assy, Power Seat
[07.2004 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
84920-60060-A0 |
— | ||
| replacement | |||||
|
84920
|
84920
84920-60060-B0 Switch Assy, Power Seat (Gray)[07.2004 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
84920-60060-B0 |
US $70.76 |
||
|
84920
|
84920
84920-60060-B0 Switch Assy, Power Seat (Gray)[07.2004 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
84920-60060-B0 |
US $70.76 |
||
|
84921
|
84921
84921-33040-A1
Knob, Power Seat Switch
[08.2002 - 06.2004] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0#,リクライニング |
84921-33040-A1 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-60130-B0 Knob, Power Seat Switch (Gray)[08.2002 - 06.2004] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0#,リクライニング |
84921-60130-B0 |
US $6.64 |
||
|
84921
|
84921
84921-33040-B4
Knob, Power Seat Switch
[08.2002 - 06.2004] HDJ101,UZJ100..VXL STONE,TRIM1#,リクライニング |
84921-33040-B4 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-33040-C0 Knob, Power Seat Switch (For Reclining) (Black)[08.2002 - 06.2004] HDJ101,UZJ100..VXL STONE,TRIM1#,リクライニング |
84921-33040-C0 |
US $6.84 |
||
|
84921
|
84921
84921-60050-A1
Knob, Power Seat Switch
[08.2002 - 06.2004] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0#,スライド，ライト |
84921-60050-A1 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-60051-B1 Knob, Power Seat Switch (Gray)[08.2002 - 06.2004] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0#,スライド，ライト |
84921-60051-B1 |
US $11.21 |
||
|
84921
|
84921
84921-60050-B1 Knob, Power Seat Switch[08.2002 - 06.2004] HDJ101,UZJ100..VXL STONE,TRIM1#,スライド，ライト |
84921-60050-B1 |
US $11.21 |
||
| replacement | |||||
|
84921
|
84921
84921-60051-B1 Knob, Power Seat Switch (Gray)[08.2002 - 06.2004] HDJ101,UZJ100..VXL STONE,TRIM1#,スライド，ライト |
84921-60051-B1 |
US $11.21 |
||
|
84921
|
84921
84921-60051-A1
Knob, Power Seat Switch
[07.2004 - 05.2005] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0#,スライド，ライト |
84921-60051-A1 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-60051-B1 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0#,スライド，ライト |
84921-60051-B1 |
US $11.21 |
||
|
84921
|
84921
84921-60051-B1 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ101,UZJ100..VXL STONE,TRIM1#,スライド，ライト |
84921-60051-B1 |
US $11.21 |
||
|
84921
|
84921
84921-60060-A1
Knob, Power Seat Switch
[08.2002 - 06.2004] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0#,スライド，レフト |
84921-60060-A1 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-60061-B1 Knob, Power Seat Switch (Gray)[08.2002 - 06.2004] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0#,スライド，レフト |
84921-60061-B1 |
US $10.83 |
||
|
84921
|
84921
84921-60060-B1 Knob, Power Seat Switch[08.2002 - 06.2004] HDJ101,UZJ100..VXL STONE,TRIM1#,スライド，レフト |
84921-60060-B1 |
US $11.21 |
||
| replacement | |||||
|
84921
|
84921
84921-60061-B1 Knob, Power Seat Switch (Gray)[08.2002 - 06.2004] HDJ101,UZJ100..VXL STONE,TRIM1#,スライド，レフト |
84921-60061-B1 |
US $10.83 |
||
|
84921
|
84921
84921-60061-A1
Knob, Power Seat Switch
[07.2004 - 05.2005] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0#,スライド，レフト |
84921-60061-A1 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-60061-B1 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0#,スライド，レフト |
84921-60061-B1 |
US $10.83 |
||
|
84921
|
84921
84921-60061-B1 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ101,UZJ100..VXL STONE,TRIM1#,スライド，レフト |
84921-60061-B1 |
US $10.83 |
||
|
84921
|
84921
84921-60130-A0
Knob, Power Seat Switch
[07.2004 - 05.2005] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0#,リクライニング，ライト |
84921-60130-A0 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-60130-B0 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0#,リクライニング，ライト |
84921-60130-B0 |
US $6.64 |
||
|
84921
|
84921
84921-60130-B0 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ101,UZJ100..VXL STONE,TRIM1#,リクライニング，ライト |
84921-60130-B0 |
US $6.64 |
||
|
84921
|
84921
84921-60140-A0
Knob, Power Seat Switch
[07.2004 - 05.2005] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0#,リクライニング，レフト |
84921-60140-A0 |
— | ||
| replacement | |||||
|
84921
|
84921
84921-60140-B0 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0#,リクライニング，レフト |
84921-60140-B0 |
US $6.64 |
||
|
84921
|
84921
84921-60140-B0 Knob, Power Seat Switch (Gray)[07.2004 - 05.2005] HDJ101,UZJ100..VXL STONE,TRIM1#,リクライニング，レフト |
84921-60140-B0 |
US $6.64 |
||
|
84922
|
84922
84922-60090 Switch, Front Power Seat[08.2002 - 05.2005] HDJ101,UZJ100..VXL 右側 |
84922-60090 |
US $144.14 |
||
|
84922
|
84922
84922-60100 Switch, Front Power Seat[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL 左側 |
84922-60100 |
US $153.75 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
8271112120
|
8271112120
82711-12120 Clamp(Rear Seat) |
82711-12120 |
US $3.40 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.25 |
||
