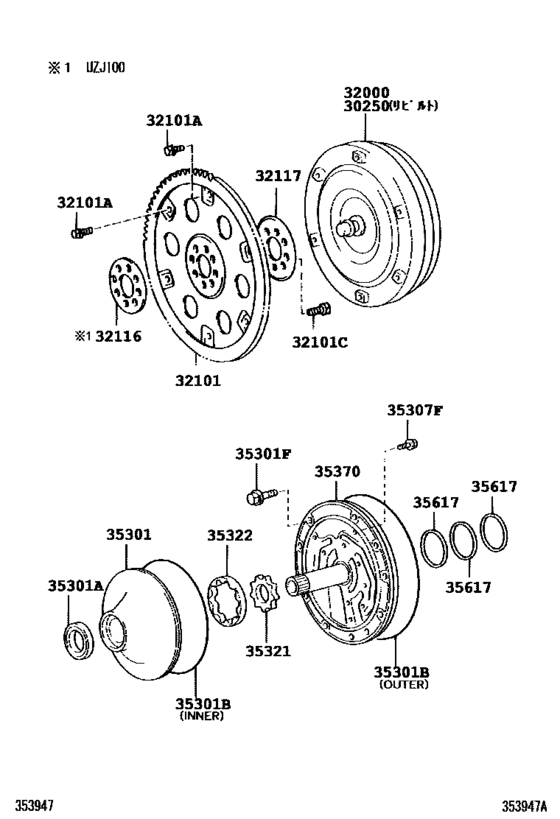

Torque Converter, Front Oil Pump & Chain (Atm) ([08.2002 - ] A750F (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30250
|
30250
30250-60260 Converter Assy, Torque, Rebuilt[08.2002 - 08.2003] HDJ101 |
30250-60260 |
US $738.19 |
||
|
30250
|
30250
30250-60290 Converter Assy, Torque, Rebuilt[08.2003 - 05.2005] HDJ101 |
30250-60290 |
US $1,352.62 |
||
|
32000
|
32000
32000-60260
Converter Assy, Torque
[08.2002 - 08.2003] HDJ101 |
32000-60260 |
— | ||
| replacement | |||||
|
32000
|
32000
32000-60290 Converter Assy, Torque[08.2002 - 08.2003] HDJ101 |
32000-60290 |
from US $1,589.49 |
||
|
32000
|
32000
32000-60290 Converter Assy, Torque[08.2003 - 05.2005] HDJ101 |
32000-60290 |
from US $1,589.49 |
||
|
32101
|
32101
32101-60040 Gear Sub-Assy, Drive Plate & Ring[08.2002 - 05.2005] HDJ101 |
32101-60040 |
US $334.88 |
||
|
32101A
|
32101A
90119-10789 Bolt(For Drive Plate & Torque Converter Setting)[08.2002 - 05.2005] HDJ101 ＊１０−１．２５ＰＸ１４−９,グリ−ン ＯＲ ブラック |
90119-10789 |
US $1.38 |
||
|
32101A
|
32101A
90119-10790
Bolt(For Drive Plate & Torque Converter Setting)
[08.2002 - 02.2005] HDJ101 ＊１０−１．２５ＰＸ１４−９,ブラック |
90119-10790 |
— | ||
| replacement | |||||
|
32101A
|
32101A
90119-10954 Bolt(For Drive Plate & Torque Converter Setting)[08.2002 - 02.2005] HDJ101 ＊１０−１．２５ＰＸ１４−９,ブラック |
90119-10954 |
US $2.51 |
||
|
32101A
|
32101A
90119-10954 Bolt(For Drive Plate & Torque Converter Setting)[03.2005 - 05.2005] HDJ101 ＊１０−１．２５ＰＸ１４−９,シルバー |
90119-10954 |
US $2.51 |
||
|
32101C
|
32101C
90105-12198 Bolt, Hexagon(For Drive Plate Setting)[08.2002 - 05.2005] HDJ101 |
90105-12198 |
US $5.56 |
||
|
32117
|
32117
32117-60030 Spacer, Drive Plate, Rear[08.2002 - 05.2005] HDJ101 |
32117-60030 |
US $20.38 |
||
|
35301
|
35301
35301-60030 Body Sub-Assy, Front Oil Pump[08.2002 - 05.2005] HDJ101,UZJ100 |
35301-60030 |
from US $169.48 |
||
|
35301A
|
35301A
90311-38083 Seal, Oil (For Front Oil Pump)[08.2002 - 05.2005] HDJ101,UZJ100 |
90311-38083 |
from US $5.20 |
||
|
35301B
|
35301B
90301-99139 Ring, O (For Front Oil Pump Body)[08.2002 - 05.2005] HDJ101,UZJ100 外側 |
90301-99139 |
from US $5.38 |
||
|
35301B
|
35301B
90301-99148 Ring, O (For Front Oil Pump Body)[08.2002 - 05.2005] HDJ101,UZJ100 内側 |
90301-99148 |
from US $2.75 |
||
|
35301F
|
35301F
90105-08451 Bolt (For Front Oil Pump Setting)[10.2006 -] HDJ101,UZJ100 ＊８−１．２５ＰＸ４０−３０ |
90105-08451 |
US $0.79 |
||
|
35301F
|
35301F
91511-K0840 Bolt(For Crankshaft Bearing Cap Set)[08.2002 - 05.2005] HDJ101,UZJ100 ＊８−１．２５ＰＸ４０−３０ |
91511-K0840 |
US $3.05 |
||
|
35307F
|
35307F
90148-60027 Bolt (For Stator Shaft)[08.2002 - 07.2003] HDJ101,UZJ100 |
90148-60027 |
US $0.73 |
||
|
35307F
|
35307F
90148-60079 Bolt (For Stator Shaft)[07.2003 - 05.2005] HDJ101,UZJ100 |
90148-60079 |
from US $0.52 |
||
|
35321
|
35321
35321-50010 Gear, Front Oil Pump Drive[09.2003 - 05.2005] HDJ101,UZJ100 厚さ＝１０．７３６−１０．７４２ |
35321-50010 |
US $38.44 |
||
|
35321
|
35321
35321-50020 Gear, Front Oil Pump Drive[07.2003 - 05.2005] HDJ101 厚さ＝１０．７４３−１０．７４９ |
35321-50020 |
US $39.60 |
||
|
35321
|
35321
35321-50030 Gear, Front Oil Pump Drive[07.2003 - 05.2005] HDJ101 厚さ＝１０．７５０−１０．７５６ |
35321-50030 |
US $39.60 |
||
|
35321
|
35321
35321-50040 Gear, Front Oil Pump Drive[09.2003 - 05.2005] HDJ101,UZJ100 厚さ＝１０．７５７−１０．７６３ |
35321-50040 |
from US $39.60 |
||
|
35321
|
35321
35321-50050 Gear, Front Oil Pump Drive[07.2003 - 05.2005] HDJ101 厚さ＝１０．７６４−１０．７７０ |
35321-50050 |
US $38.44 |
||
|
35321
|
35321
35321-50060 Gear, Front Oil Pump Drive[07.2003 - 05.2005] HDJ101 厚さ＝１０．７７１−１０．７７７ |
35321-50060 |
US $38.44 |
||
|
35321
|
35321
35321-50070 Gear, Front Oil Pump Drive[07.2003 - 05.2005] HDJ101 厚さ＝１０．７７８−１０．７８４ |
35321-50070 |
US $38.44 |
||
|
35321
|
35321
35321-60110
Gear, Front Oil Pump Drive
[08.2002 - 07.2003] HDJ101 厚さ＝１０．７４０−１０．７４９ |
35321-60110 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-50020 Gear, Front Oil Pump Drive[08.2002 - 07.2003] HDJ101 厚さ＝１０．７４０−１０．７４９ |
35321-50020 |
US $39.60 |
||
|
35321
|
35321
35321-60120
Gear, Front Oil Pump Drive
[08.2002 - 07.2003] HDJ101 厚さ＝１０．７５０−１０．７５９ |
35321-60120 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-50030 Gear, Front Oil Pump Drive[08.2002 - 07.2003] HDJ101 厚さ＝１０．７５０−１０．７５９ |
35321-50030 |
US $39.60 |
||
|
35321
|
35321
35321-60130
Gear, Front Oil Pump Drive
[08.2002 - 07.2003] HDJ101 厚さ＝１０．７６０−１０．７７０ |
35321-60130 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-50050 Gear, Front Oil Pump Drive[08.2002 - 07.2003] HDJ101 厚さ＝１０．７６０−１０．７７０ |
35321-50050 |
US $38.44 |
||
|
35321
|
35321
35321-60140
Gear, Front Oil Pump Drive
[08.2002 - 07.2003] HDJ101 厚さ＝１０．７７１−１０．７８０ |
35321-60140 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-50060 Gear, Front Oil Pump Drive[08.2002 - 07.2003] HDJ101 厚さ＝１０．７７１−１０．７８０ |
35321-50060 |
US $38.44 |
||
|
35321
|
35321
35321-60150
Gear, Front Oil Pump Drive
[08.2002 - 07.2003] HDJ101 厚さ＝１０．７８１−１０．７９０ |
35321-60150 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-50070 Gear, Front Oil Pump Drive[08.2002 - 07.2003] HDJ101 厚さ＝１０．７８１−１０．７９０ |
35321-50070 |
US $38.44 |
||
|
35322
|
35322
35322-50010 Gear, Front Oil Pump Driven[09.2003 - 05.2005] HDJ101,UZJ100 厚さ＝１０．７３６−１０．７４２ |
35322-50010 |
from US $32.67 |
||
|
35322
|
35322
35322-50020 Gear, Front Oil Pump Driven[07.2003 - 05.2005] HDJ101 厚さ＝１０．７４３−１０．７４９ |
35322-50020 |
US $33.63 |
||
|
35322
|
35322
35322-50030 Gear, Front Oil Pump Driven[07.2003 - 05.2005] HDJ101 厚さ＝１０．７５０−１０．７５６ |
35322-50030 |
US $33.63 |
||
|
35322
|
35322
35322-50040 Gear, Front Oil Pump Driven[09.2003 - 05.2005] HDJ101,UZJ100 厚さ＝１０．７５７−１０．７６３ |
35322-50040 |
US $33.63 |
||
|
35322
|
35322
35322-50050 Gear, Front Oil Pump Driven[07.2003 - 05.2005] HDJ101 厚さ＝１０．７６４−１０．７７０ |
35322-50050 |
US $32.67 |
||
|
35322
|
35322
35322-50060 Gear, Front Oil Pump Driven[07.2003 - 05.2005] HDJ101 厚さ＝１０．７７１−１０．７７７ |
35322-50060 |
US $33.63 |
||
|
35322
|
35322
35322-50070 Gear, Front Oil Pump Driven[07.2003 - 05.2005] HDJ101 厚さ＝１０．７７８−１０．７８４ |
35322-50070 |
US $33.63 |
||
|
35322
|
35322
35322-60110
Gear, Front Oil Pump Driven
[08.2002 - 07.2003] HDJ101 厚さ＝１０．７４０−１０．７４９ |
35322-60110 |
— | ||
| replacement | |||||
|
35322
|
35322
35322-50020 Gear, Front Oil Pump Driven[08.2002 - 07.2003] HDJ101 厚さ＝１０．７４０−１０．７４９ |
35322-50020 |
US $33.63 |
||
|
35322
|
35322
35322-60120
Gear, Front Oil Pump Driven
[08.2002 - 07.2003] HDJ101 厚さ＝１０．７５０−１０．７５９ |
35322-60120 |
— | ||
| replacement | |||||
|
35322
|
35322
35322-50030 Gear, Front Oil Pump Driven[08.2002 - 07.2003] HDJ101 厚さ＝１０．７５０−１０．７５９ |
35322-50030 |
US $33.63 |
||
|
35322
|
35322
35322-60130
Gear, Front Oil Pump Driven
[08.2002 - 07.2003] HDJ101 厚さ＝１０．７６０−１０．７７０ |
35322-60130 |
— | ||
| replacement | |||||
|
35322
|
35322
35322-50050 Gear, Front Oil Pump Driven[08.2002 - 07.2003] HDJ101 厚さ＝１０．７６０−１０．７７０ |
35322-50050 |
US $32.67 |
||
|
35322
|
35322
35322-60140
Gear, Front Oil Pump Driven
[08.2002 - 07.2003] HDJ101 厚さ＝１０．７７１−１０．７８０ |
35322-60140 |
— | ||
| replacement | |||||
|
35322
|
35322
35322-50060 Gear, Front Oil Pump Driven[08.2002 - 07.2003] HDJ101 厚さ＝１０．７７１−１０．７８０ |
35322-50060 |
US $33.63 |
||
|
35322
|
35322
35322-60150
Gear, Front Oil Pump Driven
[08.2002 - 07.2003] HDJ101 厚さ＝１０．７８１−１０．７９０ |
35322-60150 |
— | ||
| replacement | |||||
|
35322
|
35322
35322-50070 Gear, Front Oil Pump Driven[08.2002 - 07.2003] HDJ101 厚さ＝１０．７８１−１０．７９０ |
35322-50070 |
US $33.63 |
||
|
35370
|
35370
35370-60020 Shaft Assy, Stator[08.2002 - 07.2003] HDJ101 |
35370-60020 |
US $320.32 |
||
| replacement | |||||
|
35370
|
35370
35370-60030 Shaft Assy, Stator[08.2002 - 07.2003] HDJ101 |
35370-60030 |
US $321.78 |
||
|
35370
|
35370
35370-60030 Shaft Assy, Stator[07.2003 - 05.2005] HDJ101 |
35370-60030 |
US $321.78 |
||
|
35617
|
35617
35617-50030 Ring, Clutch Drum Oil Seal[09.2007 -] HDJ101,UZJ100 |
35617-50030 |
from US $4.02 |
||
|
35617
|
35617
35617-60020 Ring, Clutch Drum Oil Seal[08.2002 - 05.2005] HDJ101,UZJ100 |
35617-60020 |
US $6.64 |
||
