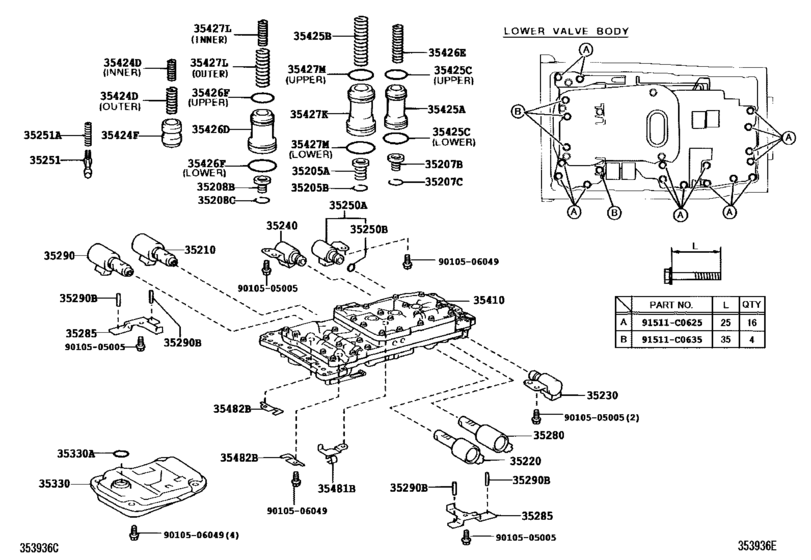

Valve Body & Oil Strainer (Atm) ([08.2002 - ] A750F (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35205A
|
35205A
35205-60010 Spring Sub-Assy, B-3 Accumulator[08.2002 - 05.2005] HDJ101,UZJ100 |
35205-60010 |
US $2.62 |
||
|
35205B
|
35205B
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[08.2002 - 05.2005] HDJ101,UZJ100 |
90521-22004 |
from US $1.24 |
||
|
35207B
|
35207B
35207-22010 Spring Sub-Assy, B-0 Accumulator[08.2002 - 05.2005] HDJ101,UZJ100 |
35207-22010 |
US $2.45 |
||
|
35207C
|
35207C
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[08.2002 - 05.2005] HDJ101,UZJ100 |
90521-22004 |
from US $1.24 |
||
|
35208B
|
35208B
35208-22010 Spring Sub-Assy, B-2 Accumulator[08.2002 - 05.2005] HDJ101 |
35208-22010 |
US $2.45 |
||
|
35208C
|
35208C
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[08.2002 - 05.2005] HDJ101,UZJ100 |
90521-22004 |
from US $1.24 |
||
|
35210
|
35210
35210-60010 Solenoid Assy, Clutch Control, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
35210-60010 |
US $171.20 |
||
|
35220
|
35220
35220-60010 Solenoid Assy, Clutch Control, No.2[08.2002 - 05.2005] HDJ101,UZJ100 |
35220-60010 |
from US $161.61 |
||
|
35230
|
35230
35230-60010 Solenoid Assy, Transmission 3Way, No.2[08.2002 - 05.2005] HDJ101,UZJ100 |
35230-60010 |
from US $176 |
||
|
35240
|
35240
35240-60010 Solenoid Assy, Automatic Transmission 3Way[08.2002 - 05.2005] HDJ101,UZJ100 |
35240-60010 |
US $257.60 |
||
|
35250A
|
35250A
35250-60010 Solenoid Assy, Transmission, No.3[08.2002 - 05.2005] HDJ101,UZJ100 |
35250-60010 |
from US $176 |
||
|
35250B
|
35250B
90301-06004 Ring, O No.3(For Transmission Solenoid)[08.2002 - 05.2005] HDJ101,UZJ100 |
90301-06004 |
from US $2.15 |
||
|
35251
|
35251
35251-30020 Body, Check Ball[08.2002 - 05.2005] HDJ101,UZJ100 |
35251-30020 |
US $14.50 |
||
|
35251A
|
35251A
90501-03005 Spring, Compression (For Check Ball Body)[08.2002 - 05.2005] HDJ101,UZJ100 |
90501-03005 |
from US $0.79 |
||
|
35280
|
35280
35280-60010 Solenoid Assy, Lock Up Control[08.2002 - 05.2005] HDJ101,UZJ100 |
35280-60010 |
US $171.20 |
||
|
35285
|
35285
35285-34010 Plate, Solenoid Lock[09.2003 - 05.2005] HDJ101,UZJ100 |
35285-34010 |
US $2.62 |
||
|
35285
|
35285
35285-60020 Plate, Solenoid Lock[08.2002 - 09.2003] HDJ101,UZJ100 |
35285-60020 |
US $1.60 |
||
|
35290
|
35290
35290-60030 Solenoid Assy, Line Pressure Control[08.2002 - 09.2003] HDJ101,UZJ100 |
35290-60030 |
US $130.68 |
||
|
35290
|
35290
35290-60040 Solenoid Assy, Line Pressure Control[09.2003 - 05.2005] HDJ101,UZJ100 |
35290-60040 |
US $171.20 |
||
|
35290B
|
35290B
90250-03045 Pin, Straight (For Line Pressure Contorol Solenoid)[08.2002 - 05.2005] HDJ101,UZJ100 |
90250-03045 |
US $1.61 |
||
|
35330
|
35330
35330-60050 Strainer Assy, Valve Body Oil[08.2002 - 05.2005] HDJ101,UZJ100 |
35330-60050 |
from US $59.15 |
||
|
35330A
|
35330A
90301-31014 O-ring (For Oil Strainer)[08.2002 - 05.2005] HDJ101,UZJ100 |
90301-31014 |
from US $2.07 |
||
|
35410
|
35410
35410-60520 Body Assy, Transmission Valve[09.2003 - 05.2005] HDJ101,UZJ100 |
35410-60520 |
US $1,557.92 |
||
|
35410
|
35410
35410-60540 Body Assy, Transmission Valve[08.2002 - 09.2003] HDJ101,UZJ100 |
35410-60540 |
US $1,557.92 |
||
|
35424D
|
35424D
90501-20173 Spring, Compression (For C-1 Accumulator Piston)[08.2002 - 05.2005] HDJ101,UZJ100 内側 |
90501-20173 |
US $1.31 |
||
|
35424D
|
35424D
90501-21040 Spring, Compression (For C-1 Accumulator Piston)[08.2002 - 05.2005] HDJ101,UZJ100 外側 |
90501-21040 |
US $2.80 |
||
|
35424F
|
35424F
35424-60030 Valve, C-1 Accumulator[08.2002 - 05.2005] HDJ101,UZJ100 |
35424-60030 |
from US $13.80 |
||
|
35425A
|
35425A
35425-50020 Piston, C-2 Accumulator[08.2006 -] HDJ101,UZJ100 |
35425-50020 |
US $10.66 |
||
|
35425A
|
35425A
35425-60060 Piston, C-2 Accumulator[08.2002 - 05.2005] HDJ101,UZJ100 |
35425-60060 |
US $20.82 |
||
| replacement | |||||
|
35425A
|
35425A
35425-50020 Piston, C-2 Accumulator[08.2002 - 05.2005] HDJ101,UZJ100 |
35425-50020 |
US $10.66 |
||
|
35425B
|
35425B
90501-27036 Spring, Compression (For C-2 Accumulator Piston)[08.2002 - 05.2005] HDJ101,UZJ100 |
90501-27036 |
from US $2.62 |
||
|
35425C
|
35425C
90301-20008 Ring, O (For C-2 Accumulator Piston)[08.2002 - 05.2005] HDJ101,UZJ100 上側 |
90301-20008 |
from US $1.79 |
||
|
35425C
|
35425C
90301-28008 Ring, O (For C-2 Accumulator Piston)[08.2002 - 05.2005] HDJ101,UZJ100 下側 |
90301-28008 |
from US $2.34 |
||
|
35426D
|
35426D
35426-50020 Piston, C-3 Accumulator[08.2006 -] HDJ101,UZJ100 |
35426-50020 |
US $19.04 |
||
|
35426D
|
35426D
35426-60020 Piston, C-3 Accumulator[08.2002 - 05.2005] HDJ101,UZJ100 |
35426-60020 |
US $43.97 |
||
| replacement | |||||
|
35426D
|
35426D
35426-50020 Piston, C-3 Accumulator[08.2002 - 05.2005] HDJ101,UZJ100 |
35426-50020 |
US $19.04 |
||
|
35426E
|
35426E
90501-22062 Spring, Compression (For C-2 Accumulator Piston)[08.2002 - 05.2005] HDJ101,UZJ100 |
90501-22062 |
US $3.32 |
||
|
35426F
|
35426F
90301-26011 Ring, O (For C-3 Accumulator Piston)[08.2002 - 05.2005] HDJ101,UZJ100 上側 |
90301-26011 |
US $1.79 |
||
|
35426F
|
35426F
90301-34011 Ring, O (For C-3 Accumulator Piston)[08.2002 - 05.2005] HDJ101,UZJ100 下側 |
90301-34011 |
from US $1.93 |
||
|
35427K
|
35427K
35427-50020 Piston, B-3 Accumulator[08.2006 -] HDJ101,UZJ100 |
35427-50020 |
US $16.77 |
||
|
35427K
|
35427K
35427-60020 Piston, B-3 Accumulator[08.2002 - 05.2005] HDJ101,UZJ100 |
35427-60020 |
US $38.29 |
||
| replacement | |||||
|
35427K
|
35427K
35427-50020 Piston, B-3 Accumulator[08.2002 - 05.2005] HDJ101,UZJ100 |
35427-50020 |
US $16.77 |
||
|
35427L
|
35427L
90501-24038 Spring, Compression (For C-3 Accumulator Piston)[08.2002 - 05.2005] HDJ101,UZJ100 内側 |
90501-24038 |
US $2.80 |
||
|
35427L
|
35427L
90501-25028 Spring, Compression (For B-2 Accumulator Piston)[08.2002 - 05.2005] HDJ101,UZJ100 外側 |
90501-25028 |
US $2.62 |
||
|
35427M
|
35427M
90301-23010 Ring (For Accumulator Piston No.1)[08.2002 - 05.2005] HDJ101,UZJ100 上側 |
90301-23010 |
from US $1.79 |
||
|
35427M
|
35427M
90301-34011 Ring, O (For C-3 Accumulator Piston)[08.2002 - 05.2005] HDJ101,UZJ100 下側 |
90301-34011 |
from US $1.93 |
||
|
35481B
|
35481B
35481-60010 Clamp, Valve Body Wire Harness[08.2002 - 05.2005] HDJ101,UZJ100 |
35481-60010 |
US $3.93 |
||
|
35482B
|
35482B
35482-60040 Clamp, Temperature Sensor[08.2002 - 05.2005] HDJ101,UZJ100 |
35482-60040 |
US $3.06 |
||
|
91511C0625
|
91511C0625
91511-C0625
Bolt(For Cylinder Head Cover)
|
91511-C0625 |
— | ||
| replacement | |||||
|
91511C0625
|
91511C0625
91551-A0625 Bolt(For Cylinder Head Cover) |
91551-A0625 |
US $1.08 |
||
|
91511C0635
|
91511C0635
91511-C0635 BOLT FLANGE |
91511-C0635 |
US $1.79 |
||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
|
9010506049
|
9010506049
90105-06049 Bolt(For Transmission Case No.2 Plate) |
90105-06049 |
US $1.25 |
||
