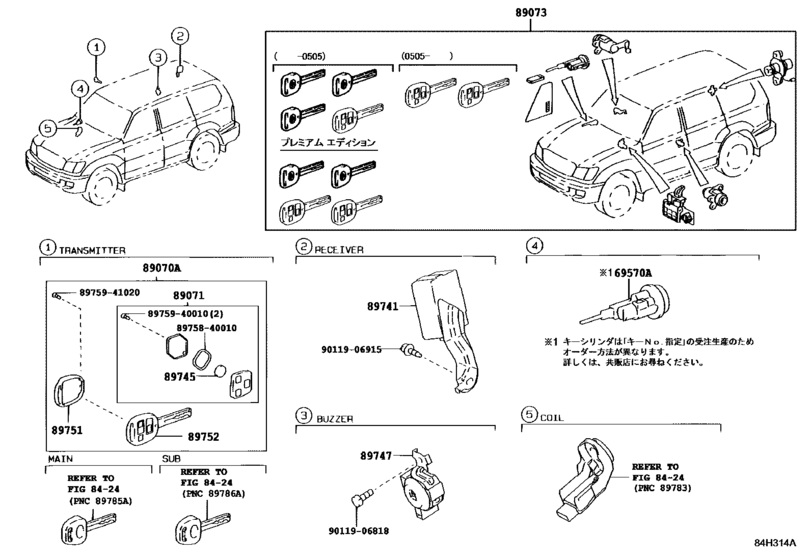

Wireless Door Lock ([08.2002 - ] (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69570A
|
69570A
69570-60170 Cylinder Assy, Ignition Switch Lock[08.2002 - 05.2005] HDJ101,UZJ100 |
69570-60170 |
US $244.61 |
||
|
89070A
|
89070A
89070-4D110
Transmitter, Door Control (Cut Key)
[05.2005 - 12.2005] HDJ101,UZJ100 |
89070-4D110 |
— | ||
| replacement | |||||
|
89070A
|
89070A
89070-4D112 Transmitter Assy, Door Control (Cut Key)[05.2005 - 12.2005] HDJ101,UZJ100 |
89070-4D112 |
US $464.88 |
||
|
89070A
|
89070A
89070-4D111
Transmitter, Door Control (Cut Key)
[01.2006 -] HDJ101,UZJ100 |
89070-4D111 |
— | ||
| replacement | |||||
|
89070A
|
89070A
89070-4D112 Transmitter Assy, Door Control (Cut Key)[01.2006 -] HDJ101,UZJ100 |
89070-4D112 |
US $464.88 |
||
|
89070A
|
89070A
89070-60840 Transmitter, Door Control (Cut Key)[08.2002 - 05.2005] HDJ101,UZJ100 |
89070-60840 |
US $469.56 |
||
|
89070A
|
89070A
89070-60A80 Transmitter, Door Control (Cut Key)[08.2003 - 07.2004] HDJ101,UZJ100..VXL ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(A) |
89070-60A80 |
US $416.42 |
||
|
89071
|
89071
89071-48140 Module Set, Transmitter Sub-Assy, Door Control[05.2005 -] HDJ101,UZJ100 |
89071-48140 |
US $224.40 |
||
|
89071
|
89071
89071-60160 Module Set, Transmitter Sub-Assy, Door Control[08.2002 - 05.2005] HDJ101,UZJ100 |
89071-60160 |
US $241.70 |
||
| replacement | |||||
|
89071
|
89071
89071-48140 Module Set, Transmitter Sub-Assy, Door Control[08.2002 - 05.2005] HDJ101,UZJ100 |
89071-48140 |
US $224.40 |
||
|
89073
|
89073
69005-6B840 Cylinder Set, Lock W/transmitter Housing(Less Module)[08.2003 - 07.2004] HDJ101,UZJ100..CYG,VXL ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(A) |
69005-6B840 |
US $942.03 |
||
|
89073
|
89073
69005-6B880
Cylinder Set, Lock W/transmitter Housing(Less Module)
[05.2005 - 04.2006] HDJ101,UZJ100..VX,VXL |
69005-6B880 |
— | ||
| replacement | |||||
|
89073
|
89073
69005-6B881 Cylinder Set, Lock W/transmitter Housing(Less Module)[05.2005 - 04.2006] HDJ101,UZJ100..VX,VXL |
69005-6B881 |
US $438.69 |
||
|
89073
|
89073
69005-6B881 Cylinder Set, Lock W/transmitter Housing(Less Module)[05.2006 -] HDJ101,UZJ100..VX,VXL |
69005-6B881 |
US $438.69 |
||
|
89073
|
89073
69005-6C410 Cylinder Set, Lock W/transmitter Housing(Less Module)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
69005-6C410 |
US $943.49 |
||
| replacement | |||||
|
89073
|
89073
69005-6C420 Cylinder Set, Lock W/transmitter Housing(Less Module)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
69005-6C420 |
US $981.34 |
||
|
89073
|
89073
69005-6C420 Cylinder Set, Lock W/transmitter Housing(Less Module)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾛﾂｸﾂｷ ｽﾍﾟｱﾎｲ-ﾙ ｷﾔﾘｱ = ﾊﾞﾂｸﾄﾞｱ ﾂﾞｹ) |
69005-6C420 |
US $981.34 |
||
|
89741
|
89741
89741-60400
Receiver, Door Control
[08.2002 - 05.2005] HDJ101,UZJ100 |
89741-60400 |
— | ||
|
89745
|
89745
89745-40010 Transmitter Battery[08.2002 - 05.2005] HDJ101,UZJ100 |
89745-40010 |
from US $7.88 |
||
|
89745
|
89745
89745-48030 Battery, Transmitter[05.2005 -] HDJ101,UZJ100 |
89745-48030 |
US $5.82 |
||
|
89751
|
89751
89751-50010
Cover, Transmitter Housing
[08.2002 - 05.2005] HDJ101,UZJ100 |
89751-50010 |
— | ||
| replacement | |||||
|
89751
|
89751
89751-50011 Cover, Transmitter Housing[08.2002 - 05.2005] HDJ101,UZJ100 |
89751-50011 |
from US $9.31 |
||
|
89751
|
89751
89751-50011 Cover, Transmitter Housing[01.2006 -] HDJ101,UZJ100 |
89751-50011 |
from US $9.31 |
||
|
89751
|
89751
89751-60030
Cover, Transmitter Housing
[08.2003 - 07.2004] HDJ101,UZJ100..VXL ﾌﾟﾚﾐｱﾑ ｴﾃﾞｲｼﾖﾝ *(A) |
89751-60030 |
— | ||
|
89752
|
89752
89752-48070 Case, Transmitter HousingTRANSMITTER HOUSING [08.2002 - 05.2005] HDJ101,UZJ100 カット キー |
89752-48070 |
US $198.40 |
||
|
8975840010
|
8975840010
89758-40010 Packing, Door Control Transmitter |
89758-40010 |
US $2.27 |
||
|
8975940010
|
8975940010
89759-40010 Screw, Door Control Transmitter |
89759-40010 |
US $2.15 |
||
|
8975941020
|
8975941020
89759-41020 Screw, Door Control Transmitter |
89759-41020 |
from US $1.08 |
||
|
9011906818
|
9011906818
90119-06818 BOLT WWASHER |
90119-06818 |
from US $0.70 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
