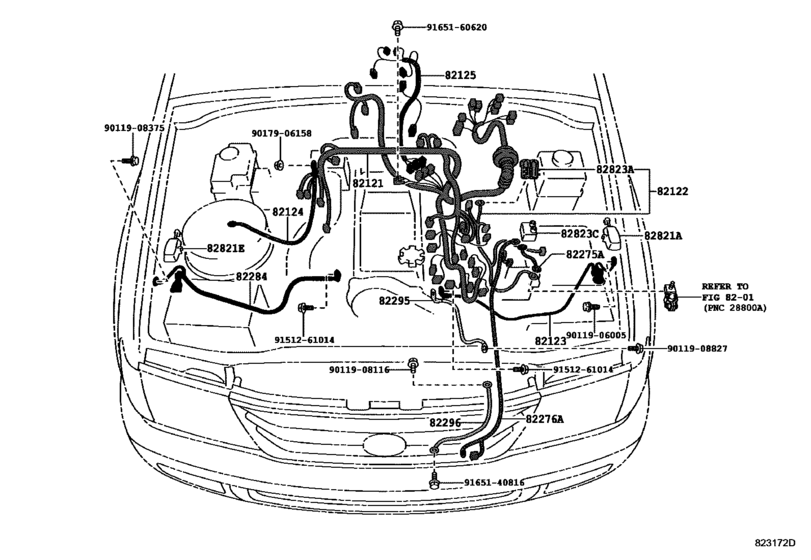

Wiring & Clamp ([08.2002 - ] ｴﾝｼﾞﾝ (0208- )HDJ101) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-6A880
Wire, Engine
[08.2002 - 05.2005] HDJ101 |
82121-6A880 |
— | ||
|
82122
|
82122
82122-60371
Wire, Engine, No.2
[08.2002 - 05.2005] HDJ101 |
82122-60371 |
— | ||
|
82123
|
82123
82123-60252 Wire, Engine, No.3[08.2002 - 05.2005] HDJ101 |
82123-60252 |
US $84.45 |
||
|
82123
|
82123
82123-60253
Wire, Engine, No.3
[10.2006 -] HDJ101 |
82123-60253 |
— | ||
|
82124
|
82124
82124-60080 Wire, Engine, No.4[08.2002 - 05.2005] HDJ101 |
82124-60080 |
US $68.72 |
||
|
82125
|
82125
82125-60560
Wire, Transmission
[08.2002 - 08.2003] HDJ101 |
82125-60560 |
— | ||
|
82125
|
82125
82125-60561
Wire, Transmission
[08.2003 - 05.2005] HDJ101 |
82125-60561 |
— | ||
|
82275A
|
82275A
82275-60100 Cable, Battery To Magnet Switch[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
82275-60100 |
US $18.35 |
||
|
82276A
|
82276A
82276-60071 Cable, Magnet Switch To Winch[08.2002 - 05.2005] HDJ101 |
82276-60071 |
US $117.94 |
||
|
82284
|
82284
82284-60101
Wire, Earth
[08.2002 - 05.2005] HDJ101 |
82284-60101 |
— | ||
|
82295
|
82295
82295-60030
Wire, Winch Earth
[08.2002 - 05.2005] HDJ101 |
82295-60030 |
— | ||
|
82296
|
82296
82296-60010 Wire, Winch Earth, No.2[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
82296-60010 |
US $45.78 |
||
|
82821A
|
82821A
82821-60070 Cover, Connector(For Battery Terminal Negative)[05.2005 -] HDJ101 |
82821-60070 |
from US $8.21 |
||
|
82821E
|
82821E
82821-60070 Cover, Connector(For Battery Terminal Negative)[08.2002 - 05.2005] HDJ101 |
82821-60070 |
from US $8.21 |
||
|
82823A
|
82823A
82823-30100 Cap, Terminal, No.1[08.2002 - 05.2005] HDJ101 |
82823-30100 |
US $5.56 |
||
|
82823C
|
82823C
82823-90300
Cap, Terminal, No.1
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
82823-90300 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011908116
|
9011908116
90119-08116 Bolt W Washer |
90119-08116 |
US $4.30 |
||
|
9011908375
|
9011908375
90119-08375 BOLT |
90119-08375 |
US $1.43 |
||
|
9011908827
|
9011908827
90119-08827 New Genuine Part |
90119-08827 |
US $1.61 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9151261014
|
9151261014
91512-61014 BOLT FLANGE |
91512-61014 |
US $1.31 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
US $1.43 |
