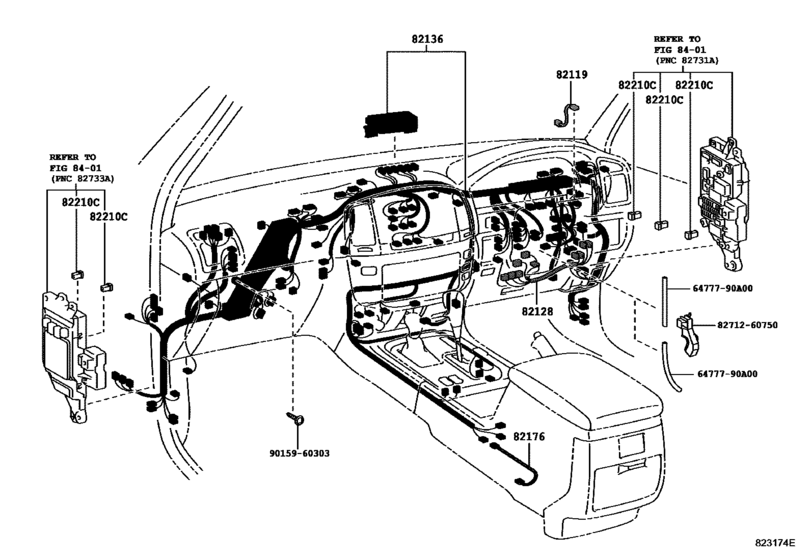

Wiring & Clamp ([08.2002 - ] ｶｳﾙ (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82119
|
82119
82219-60030 Wire, Sensor[08.2002 - 05.2005] HDJ101 |
82219-60030 |
US $12.23 |
||
|
82128
|
82128
82128-60033 Wire, Column[08.2002 - 08.2003] HDJ101,UZJ100..VX,VXL |
82128-60033 |
US $141.23 |
||
| replacement | |||||
|
82128
|
82128
82128-60035 Wire, Column[08.2002 - 08.2003] HDJ101,UZJ100..VX,VXL |
82128-60035 |
US $139.78 |
||
|
82128
|
82128
82128-60034 Wire, Column[08.2003 - 05.2005] HDJ101,UZJ100..VX,VXL |
82128-60034 |
US $139.78 |
||
| replacement | |||||
|
82128
|
82128
82128-60035 Wire, Column[08.2003 - 05.2005] HDJ101,UZJ100..VX,VXL |
82128-60035 |
US $139.78 |
||
|
82128
|
82128
82128-60035 Wire, Column[05.2005 -] HDJ101,UZJ100..VX,VXL |
82128-60035 |
US $139.78 |
||
|
82128
|
82128
82128-60043
Wire, Column
[08.2002 - 08.2003] UZJ100..CYG; HDJ101,UZJ100..VXL ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
82128-60043 |
— | ||
|
82128
|
82128
82128-60044 Wire, Column[08.2003 - 05.2005] UZJ100..CYG; HDJ101,UZJ100..VXL ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
82128-60044 |
US $218.40 |
||
| replacement | |||||
|
82128
|
82128
82128-60045 Wire, Column[08.2003 - 05.2005] UZJ100..CYG; HDJ101,UZJ100..VXL ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
82128-60045 |
US $218.40 |
||
|
82128
|
82128
82128-60045 Wire, Column[05.2005 -] UZJ100..CYG; HDJ101,UZJ100..VXL ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
82128-60045 |
US $218.40 |
||
|
82136
|
82136
82136-60147
Wire, Dash
[08.2002 - 08.2003] HDJ101 ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
82136-60147 |
— | ||
|
82136
|
82136
82136-60148 Wire, Dash[08.2003 - 05.2005] HDJ101 ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ & VGRS) |
82136-60148 |
US $2,504.32 |
||
| replacement | |||||
|
82136
|
82136
82136-60149 Wire, Dash[08.2003 - 05.2005] HDJ101 ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ & VGRS) |
82136-60149 |
US $2,737.28 |
||
|
82136
|
82136
82136-60149 Wire, Dash[05.2005 -] HDJ101 ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ & VGRS) |
82136-60149 |
US $2,737.28 |
||
|
82136
|
82136
82136-60157 Wire, Dash[08.2002 - 08.2003] HDJ101 ｱﾘ(ｱﾝﾌﾟﾘﾌｱｲﾔ) |
82136-60157 |
US $2,023.84 |
||
|
82136
|
82136
82136-60158 Wire, Dash[08.2003 - 05.2005] HDJ101 ｱﾘ(ｱﾝﾌﾟﾘﾌｱｲﾔ) |
82136-60158 |
US $2,256.80 |
||
| replacement | |||||
|
82136
|
82136
82136-60159 Wire, Dash[08.2003 - 05.2005] HDJ101 ｱﾘ(ｱﾝﾌﾟﾘﾌｱｲﾔ) |
82136-60159 |
US $2,504.32 |
||
|
82136
|
82136
82136-60159 Wire, Dash[05.2005 -] HDJ101 |
82136-60159 |
US $2,504.32 |
||
|
82136
|
82136
82136-60396 Wire, Dash[08.2002 - 08.2003] HDJ101 ｱﾘ(6 ｽﾋﾟ-ｶ) |
82136-60396 |
US $2,023.84 |
||
|
82136
|
82136
82136-60397 Wire, Dash[08.2003 - 05.2005] HDJ101 ｱﾘ(6 ｽﾋﾟ-ｶ) |
82136-60397 |
US $2,256.80 |
||
| replacement | |||||
|
82136
|
82136
82136-60398 Wire, Dash[08.2003 - 05.2005] HDJ101 ｱﾘ(6 ｽﾋﾟ-ｶ) |
82136-60398 |
US $2,504.32 |
||
|
82136
|
82136
82136-60398 Wire, Dash[05.2005 -] HDJ101 ｱﾘ(6 ｽﾋﾟ-ｶ) |
82136-60398 |
US $2,504.32 |
||
|
82136
|
82136
82136-60A00 Wire, Dash[08.2003 - 05.2005] HDJ101 ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
82136-60A00 |
US $2,504.32 |
||
| replacement | |||||
|
82136
|
82136
82136-60A01 Wire, Dash[08.2003 - 05.2005] HDJ101 ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
82136-60A01 |
US $2,737.28 |
||
|
82136
|
82136
82136-60A01 Wire, Dash[05.2005 -] HDJ101 ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
82136-60A01 |
US $2,737.28 |
||
|
82136
|
82136
82136-6A020 Wire, Dash[08.2002 - 08.2003] HDJ101 |
82136-6A020 |
US $2,023.84 |
||
|
82136
|
82136
82136-6A021 Wire, Dash[08.2003 - 05.2005] HDJ101 |
82136-6A021 |
US $2,256.80 |
||
| replacement | |||||
|
82136
|
82136
82136-60159 Wire, Dash[08.2003 - 05.2005] HDJ101 |
82136-60159 |
US $2,504.32 |
||
|
82176
|
82176
82176-60023 Wire, Rr Console Box[08.2002 - 09.2003] HDJ101;UZJ100..VX |
82176-60023 |
US $19.66 |
||
|
82176
|
82176
82176-60052 Wire, Rr Console Box[09.2003 - 05.2005] HDJ101;UZJ100..VX |
82176-60052 |
US $19.66 |
||
|
82210C
|
82210C
90982-08283 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 ３０Ａ，メス端子 |
90982-08283 |
from US $1.35 |
||
|
82210C
|
82210C
90982-08284 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 ４０Ａ，メス端子 |
90982-08284 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08285 Fusible Link[08.2002 - 05.2005] HDJ101,UZJ100 ５０Ａ，メス端子 |
90982-08285 |
from US $7.88 |
||
|
82210C
|
82210C
90982-08291 Fusible Link[08.2002 - 05.2005] HDJ101 ８０Ａ |
90982-08291 |
US $7.88 |
||
|
6477790A00
|
6477790A00
64777-90A00
Protector, Quarter, Inner
|
64777-90A00 |
— | ||
| replacement | |||||
|
6477790A00
|
6477790A00
64777-60030 Protector, Sun Roof Headlining, Center |
64777-60030 |
US $4.27 |
||
|
8271260750
|
8271260750
82712-60750 Hose, Suction |
82712-60750 |
US $13.54 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
