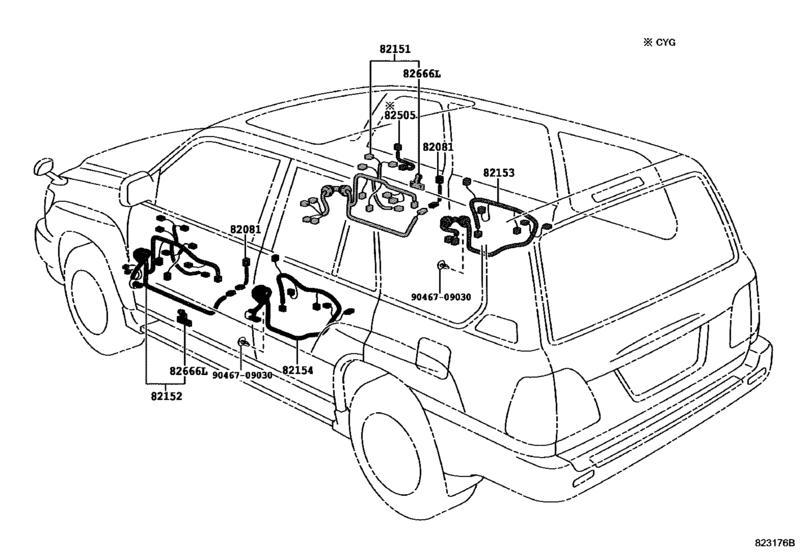

Wiring & Clamp ([08.2002 - ] ﾄﾞｱ (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82081
|
82081
82081-60010 Wiring Assy, Door Lock[08.2002 - 05.2005] HDJ101,UZJ100 右側 |
82081-60010 |
US $23 |
||
|
82081
|
82081
82081-60020 Wiring Assy, Door Lock[08.2002 - 05.2005] HDJ101,UZJ100 左側 |
82081-60020 |
US $23 |
||
|
82151
|
82151
82151-60303 Wire, Front Door, Rh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
82151-60303 |
US $232.74 |
||
|
82152
|
82152
82152-60293 Wire, Front Door, Lh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
82152-60293 |
US $250.43 |
||
|
82153
|
82153
82153-60143 Wire, Rear Door, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
82153-60143 |
US $182.51 |
||
|
82154
|
82154
82153-60143 Wire, Rear Door, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
82153-60143 |
US $182.51 |
||
|
82666L
|
82666L
82666-60300 Holder, Connector No.9[08.2002 - 05.2005] HDJ101,UZJ100 |
82666-60300 |
US $4.95 |
||
|
9046709030
|
9046709030
90467-09030 Clip, Radiator Support To Frame |
90467-09030 |
US $1.61 |
