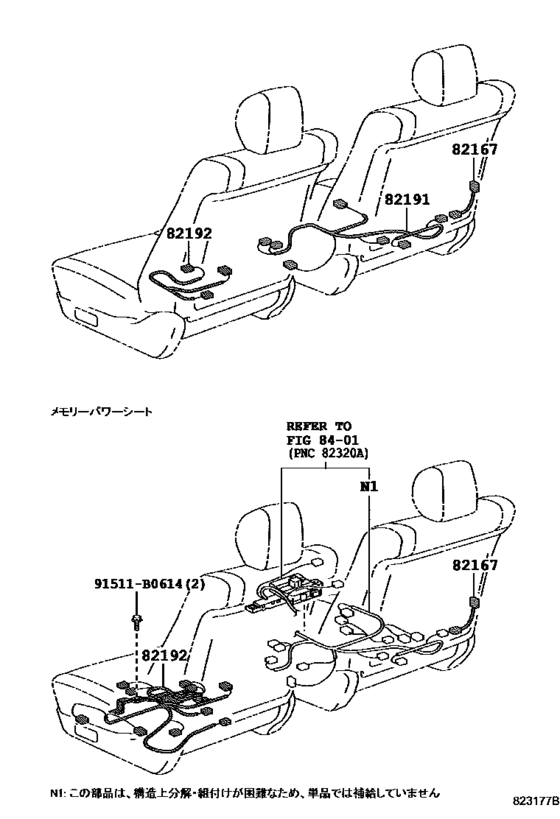

Wiring & Clamp ([08.2002 - ] ｼ-ﾄ (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82167
|
82167
82167-60121 Wire, Seat, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
82167-60121 |
US $7.86 |
||
|
82191
|
82191
82191-60031 Wire, Front Seat, Rh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
82191-60031 |
US $100.46 |
||
|
82191
|
82191
82191-60041 Wire, Front Seat, Rh[08.2002 - 05.2005] HDJ101,UZJ100..VXL ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
82191-60041 |
US $218.40 |
||
|
82192
|
82192
82192-60011 Wire, Front Seat, Lh[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ｼ-ﾄ ﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ) |
82192-60011 |
US $139.78 |
||
|
82192
|
82192
82192-60021 Wire, Front Seat, Lh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
82192-60021 |
US $19.66 |
||
|
82192
|
82192
82192-60061 Wire, Front Seat, Lh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｱﾘ(ｼ-ﾄﾋ-ﾀ) |
82192-60061 |
US $38.44 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
