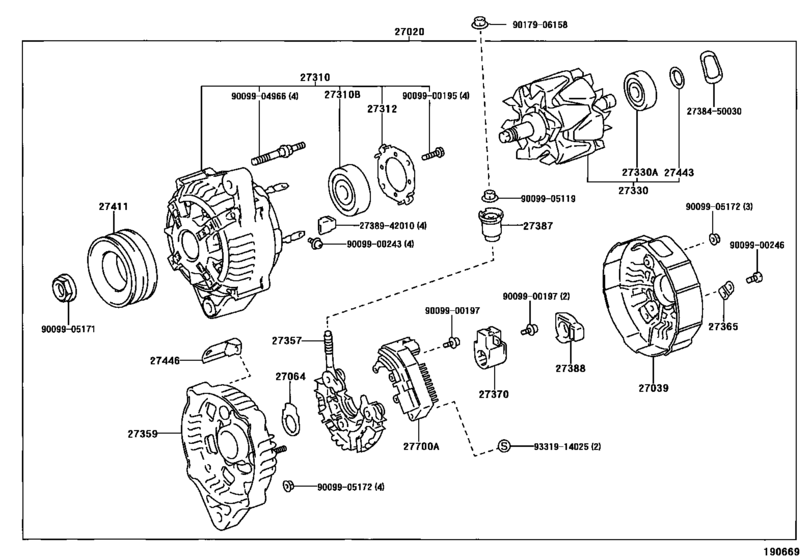

Alternator ([01.1998 - 08.2002] 12V 120A (9801-0208)1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-17230 Alternator Assy[01.1998 - 08.2002] 1HDFTE..HDJ101 １２Ｖ １２０Ａ |
27060-17230 |
from US $1,198.98 |
||
|
27039
|
27039
27039-17230
Cover, Alternator Rear End
[01.2001 - 08.2002] 1HDFTE..HDJ101 |
27039-17230 |
— | ||
|
27039
|
27039
27039-50090
Cover, Alternator Rear End
[01.1998 - 01.2001] 1HDFTE..HDJ101 |
27039-50090 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-17230
Cover, Alternator Rear End
[01.1998 - 01.2001] 1HDFTE..HDJ101 |
27039-17230 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[01.1998 - 08.2002] 1HDFTE,2UZFE..HDJ101,UZJ100 |
27064-42010 |
US $2.10 |
||
|
27310
|
27310
27310-17230
Frame Assy, Drive End, Alternator
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
27310-17230 |
— | ||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[01.1998 - 08.2002] 1HDFTE,2UZFE..HDJ101,UZJ100 |
90099-10192 |
from US $13.63 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[01.1998 - 08.2002] 1HDFTE,2UZFE..HDJ101,UZJ100 |
27312-42010 |
— | ||
|
27330
|
27330
27330-20070
Rotor Assy, Alternator
[07.2000 - 08.2002] 1HDFTE..HDJ101 |
27330-20070 |
— | ||
|
27330
|
27330
27330-64520
Rotor Assy, Alternator
[01.1998 - 07.2000] 1HDFTE..HDJ101 |
27330-64520 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-20070
Rotor Assy, Alternator
[01.1998 - 07.2000] 1HDFTE..HDJ101 |
27330-20070 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-17230 Holder, Alternator, W/rectifier[01.1998 - 08.2002] 1HDFTE..HDJ101 |
27357-17230 |
from US $103.08 |
||
|
27359
|
27359
27359-58050
Frame, Alternator Rectifier End
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
27359-58050 |
— | ||
|
27365
|
27365
27365-55080
Plate, Terminal
[01.1998 - 08.2002] 1HDFTE,2UZFE..HDJ101,UZJ100 |
27365-55080 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[01.1998 - 08.2002] 1HDFTE,2UZFE..HDJ101,UZJ100 |
27370-75060 |
from US $15.22 |
||
|
27387
|
27387
27387-42021
Insulator, Terminal
[01.1998 - 08.2002] 1HDFTE,2UZFE..HDJ101,UZJ100 |
27387-42021 |
— | ||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[01.1998 - 08.2002] 1HDFTE..HDJ101 |
27388-42010 |
from US $2.30 |
||
|
27411
|
27411
27411-17030 Pulley, Alternator[01.1998 - 08.2002] 1HDFTE..HDJ101 |
27411-17030 |
from US $42.75 |
||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[01.1998 - 08.2002] 1HDFTE,2UZFE..HDJ101,UZJ100 |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-62012
Clip, Alternator Cord
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
27446-62012 |
— | ||
|
27700A
|
27700A
27700-50030 Regulator Assy, Generator[07.1998 - 08.2002] 1HDFTE,2UZFE..HDJ101,UZJ100 |
27700-50030 |
from US $126.07 |
||
|
27700A
|
27700A
27700-50050 Regulator Assy, Generator[01.1998 - 07.1998] 1HDFTE,2UZFE..HDJ101,UZJ100 |
27700-50050 |
US $263.54 |
||
| replacement | |||||
|
27700A
|
27700A
27700-75020 Regulator Assy, Generator[01.1998 - 07.1998] 1HDFTE,2UZFE..HDJ101,UZJ100 |
27700-75020 |
from US $153.71 |
||
|
2738450030
|
2738450030
27384-50030 Holder, Alternator Brush, A |
27384-50030 |
from US $2.80 |
||
|
2738942010
|
2738942010
27389-42010
Insulator, Terminal
|
27389-42010 |
— | ||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.25 |
||
