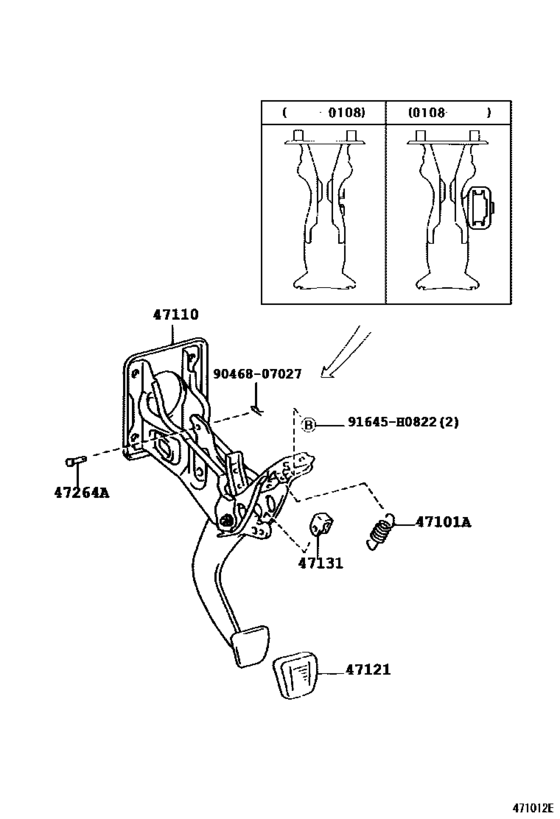

Brake Pedal & Bracket ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101A
|
47101A
90507-23023 Spring(For Brake Pedal Return)[01.1998 - 08.2002] HDJ101,UZJ100 |
90507-23023 |
US $3.84 |
||
|
47110
|
47110
47110-60040 Support Assy, Brake Pedal[01.1998 - 08.2001] HDJ101..MTM |
47110-60040 |
US $145.60 |
||
| replacement | |||||
|
47110
|
47110
47110-60041 Support Assy, Brake Pedal[01.1998 - 08.2001] HDJ101..MTM |
47110-60041 |
US $145.60 |
||
|
47110
|
47110
47110-60041 Support Assy, Brake Pedal[08.2001 - 08.2002] HDJ101..MTM |
47110-60041 |
US $145.60 |
||
|
47121
|
47121
31321-14020 Pad, Clutch Pedal[01.1998 - 08.2002] HDJ101..MTM |
31321-14020 |
from US $3.29 |
||
| replacement | |||||
|
47121
|
47121
31321YE010
PAD PEDAL
[01.1998 - 08.2002] HDJ101..MTM |
31321YE010 |
— | ||
|
47131
|
47131
90541-06063 Cushion(For Stop Lamp Switch)[01.1998 - 08.2002] HDJ101,UZJ100 |
90541-06063 |
from US $1.58 |
||
|
47264A
|
47264A
90240-06023 Pin(For Push Rod)[01.1998 - 08.2002] HDJ101,UZJ100 |
90240-06023 |
US $1.22 |
||
|
91645H0822
|
91645H0822
91645-H0822 New Genuine Part |
91645-H0822 |
US $1.75 |
||
| replacement | |||||
|
91645H0822
|
91645H0822
91641-H0822 New Genuine Part |
91641-H0822 |
US $1.05 |
||
|
9046807027
|
9046807027
90468-07027 Clip(For Push Rod Clevis Pin) |
90468-07027 |
from US $0.67 |
||
