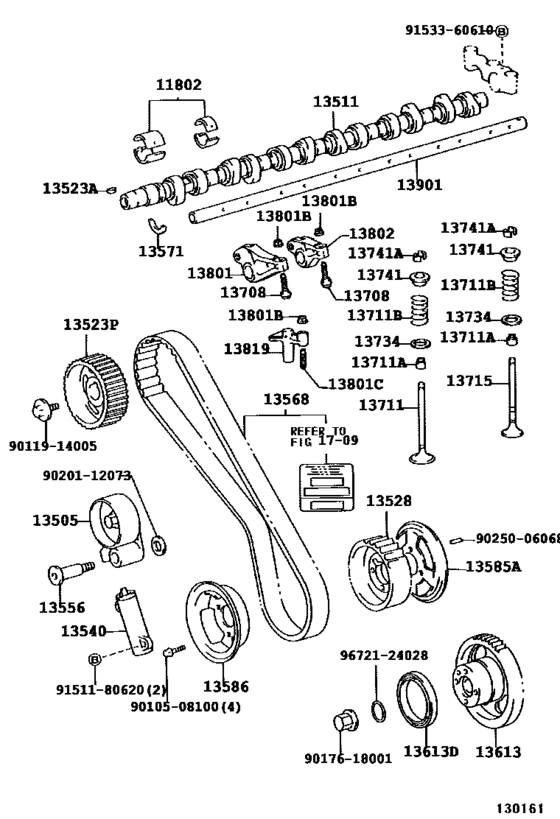

Camshaft & Valve ([01.1998 - ] (9801- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11802
|
11802
11801-17021 Bearing Set, Camshaft[01.1998 - 08.2002] 1HDFTE..HDJ101 ＳＴＤ |
11801-17021 |
from US $19.78 |
||
|
13505
|
13505
13505-17020 Idler Sub-Assy, Timing Belt, No.1[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13505-17020 |
from US $62.33 |
||
|
13511
|
13511
13511-17040
Camshaft
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13511-17040 |
— | ||
| replacement | |||||
|
13511
|
13511
13511-17041 Camshaft[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13511-17041 |
from US $751.89 |
||
|
13523A
|
13523A
90280-05004 Key, Woodruff(For Timing Gear)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90280-05004 |
from US $0.89 |
||
|
13523P
|
13523P
13523-17010 Pulley, Camshaft Timing[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13523-17010 |
from US $16.45 |
||
|
13528
|
13528
13528-17020 Gear, Camshaft Drive[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13528-17020 |
from US $25.84 |
||
|
13540
|
13540
13540-17011 Tensioner Assy No.1[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13540-17011 |
from US $47.41 |
||
|
13556
|
13556
13556-17010 Shaft, Timing Belt Idler[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13556-17010 |
from US $10.37 |
||
|
13568
|
13568
13568-19175 Belt, Timing[01.1998 - 08.2001] 1HDFTE..HDJ101 |
13568-19175 |
from US $77.08 |
||
| replacement | |||||
|
13568
|
13568
13568-YZZ17 BELT , TIMING[01.1998 - 08.2001] 1HDFTE..HDJ101 |
13568-YZZ17 |
US $44.06 |
||
|
13568
|
13568
13568-19176 Belt, Timing[08.2001 - 08.2002] 1HDFTE..HDJ101 |
13568-19176 |
from US $56.05 |
||
|
13571
|
13571
13571-17010 Plate, Camshaft Thrust[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13571-17010 |
from US $3.27 |
||
|
13585A
|
13585A
13585-17020 Flange, Camshaft Timing Pulley, No.1[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13585-17020 |
US $17.30 |
||
|
13586
|
13586
13586-17020 Flange, Camshaft Timing Pulley, No.2[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13586-17020 |
US $28.90 |
||
|
13613
|
13613
13613-17030 Gear, Injection Pump Drive[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13613-17030 |
US $117.06 |
||
|
13613D
|
13613D
90363-67001 Bearing, Radial Ball[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90363-67001 |
from US $19.38 |
||
|
13708
|
13708
13708-17010 Screw Sub-Assy, Valve Adjusting[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13708-17010 |
from US $8.97 |
||
|
13711
|
13711
13711-17020
Valve, Intake
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13711-17020 |
— | ||
| replacement | |||||
|
13711
|
13711
13711-17021 Valve, Intake[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13711-17021 |
from US $21.05 |
||
|
13711A
|
13711A
90913-02096 Seal Or Ring, O(For Valve Stem Oil)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90913-02096 |
from US $5.77 |
||
|
13711B
|
13711B
90501-35026 Spring, Compression(For Inner)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90501-35026 |
from US $7.88 |
||
|
13715
|
13715
13715-17030 Valve, Exhaust[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13715-17030 |
from US $32.28 |
||
|
13734
|
13734
13734-62020 Washer, Plate(For Valve Spring Seat)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13734-62020 |
from US $0.55 |
||
|
13741
|
13741
13741-17010 Retainer, Valve Spring[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13741-17010 |
from US $2.57 |
||
|
13741A
|
13741A
90913-03027 Lock, Valve Spring Retainer[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90913-03027 |
from US $0.97 |
||
|
13801
|
13801
13801-17010 Arm Sub-Assy, Valve Rocker, No.1[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13801-17010 |
from US $50.50 |
||
|
13801B
|
13801B
90179-08049 Nut, Hexagon(For Valve Adjusting)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90179-08049 |
from US $1.20 |
||
|
13801C
|
13801C
90913-05024 Screw, Valve Adjusting[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90913-05024 |
US $3.03 |
||
|
13802
|
13802
13802-17010 Arm Sub-Assy, Valve Rocker, No.2[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13802-17010 |
from US $45.71 |
||
|
13819
|
13819
13819-17010 Bridge, Valve[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13819-17010 |
from US $9.22 |
||
|
13901
|
13901
13901-17010 Shaft Sub-Assy, Valve Rocker, No.1[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13901-17010 |
from US $90.54 |
||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.16 |
||
|
9011914005
|
9011914005
90119-14005 Washer, Plate(For Crankshaft Pulley Set) |
90119-14005 |
from US $3.19 |
||
|
9017618001
|
9017618001
90176-18001 New Genuine Part |
90176-18001 |
US $4.89 |
||
|
9020112073
|
9020112073
90201-12073 WASHER PLATE |
90201-12073 |
from US $1.86 |
||
|
9025006068
|
9025006068
90250-06068 Pin, Straight |
90250-06068 |
from US $0.97 |
||
|
9151180620
|
9151180620
91511-80620 Direct |
91511-80620 |
US $1.97 |
||
|
9153360610
|
9153360610
91533-60610 Bolt, Flange |
91533-60610 |
US $1.97 |
||
|
9672124028
|
9672124028
96721-24028 Ring, O(For Oil Strainer) |
96721-24028 |
from US $2 |
||
