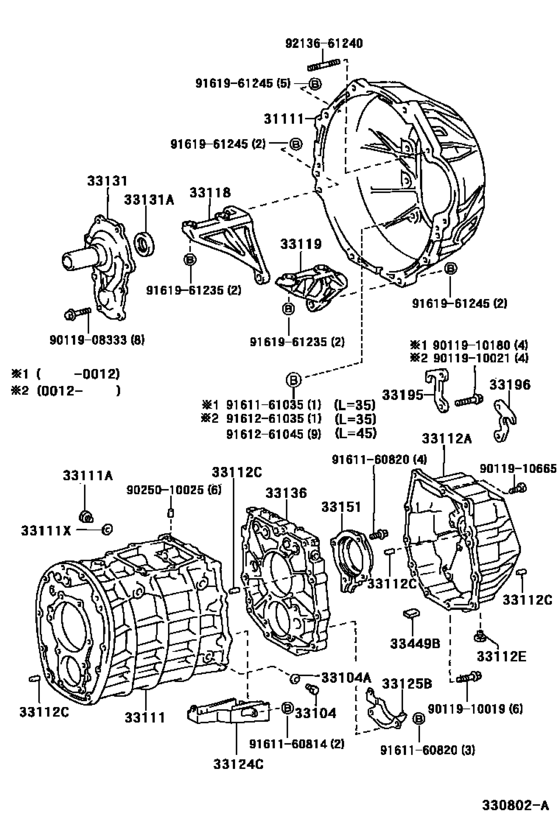

Clutch Housing & Transmission Case (Mtm) ([01.1998 - 08.2002] H151 (9801-0208)MTM) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-60290 Housing, Clutch[01.1998 - 08.2002] HDJ101..MTM |
31111-60290 |
from US $606.28 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[01.1998 - 08.2002] HDJ101..MTM |
90341-18006 |
from US $3.23 |
||
|
33104A
|
33104A
90430-18008 Gasket[01.1998 - 08.2002] HDJ101..MTM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.1998 - 08.2002] HDJ101..MTM |
90430-T0021 |
US $0.99 |
||
|
33111
|
33111
33101-60090 Case, Manual Transmission[01.1998 - 08.1999] HDJ101..MTM |
33101-60090 |
US $662.48 |
||
| replacement | |||||
|
33111
|
33111
33101-60130 Case, Manual TransmissionMANUAL TRANSMISSION [01.1998 - 08.1999] HDJ101..MTM |
33101-60130 |
US $417.87 |
||
|
33111
|
33111
33101-60091 Case, Manual Transmission[08.1999 - 08.2002] HDJ101..MTM |
33101-60091 |
US $662.48 |
||
| replacement | |||||
|
33111
|
33111
33101-60130 Case, Manual TransmissionMANUAL TRANSMISSION [08.1999 - 08.2002] HDJ101..MTM |
33101-60130 |
US $417.87 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[01.1998 - 08.2002] HDJ101..MTM |
90341-18006 |
from US $3.23 |
||
|
33111X
|
33111X
90430-18008 Gasket[01.1998 - 08.2002] HDJ101..MTM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33111X
|
33111X
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.1998 - 08.2002] HDJ101..MTM |
90430-T0021 |
US $0.99 |
||
|
33112A
|
33112A
36107-60030 Adapter, Transfer[01.1998 - 08.2002] HDJ101..MTM |
36107-60030 |
US $825.72 |
||
|
33112C
|
33112C
90250-12002 Pin, Straight(For Manual Transmission Case)[01.1998 - 08.2002] HDJ101..MTM |
90250-12002 |
from US $1.24 |
||
|
33112E
|
33112E
90341-12008 Plug, W/head Straight Screw(For Transfer Adapter)[01.1998 - 08.2002] HDJ101..MTM |
90341-12008 |
from US $3.25 |
||
|
33118
|
33118
33118-60060 Plate, Stiffener, Rh(Mtm)[01.1998 - 08.2002] HDJ101..MTM |
33118-60060 |
from US $58.01 |
||
|
33119
|
33119
33119-60070 Plate, Stiffener, Lh(Mtm)[01.1998 - 08.2002] HDJ101..MTM |
33119-60070 |
US $47.70 |
||
|
33124C
|
33124C
33124-60020
Pipe, Oil Receiver, No.1(Mtm)
[01.1998 - 08.2002] HDJ101..MTM |
33124-60020 |
— | ||
| replacement | |||||
|
33124C
|
33124C
33124-60070 Pipe, Oil Receiver, No.1(Mtm)[01.1998 - 08.2002] HDJ101..MTM |
33124-60070 |
US $15.72 |
||
|
33125B
|
33125B
33125-60010 Receiver, Manual Transmission Case[01.1998 - 08.2002] HDJ101..MTM |
33125-60010 |
from US $7.13 |
||
|
33131
|
33131
33131-60070 Retainer, Bearing, Front(Mtm)[01.1998 - 08.2002] HDJ101..MTM |
33131-60070 |
from US $77.65 |
||
|
33131A
|
33131A
90311-35023 Seal, Oil(For Transmission Front Bearing Retainer)[01.1998 - 08.2002] HDJ101..MTM |
90311-35023 |
from US $4.30 |
||
|
33136
|
33136
33136-60020 Plate, Transmission Intermediate[01.1998 - 05.1999] HDJ101..MTM |
33136-60020 |
US $266.45 |
||
| replacement | |||||
|
33136
|
33136
33136-60021 Plate, Transmission Intermediate[01.1998 - 05.1999] HDJ101..MTM |
33136-60021 |
US $167.44 |
||
|
33136
|
33136
33136-60021 Plate, Transmission Intermediate[05.1999 - 08.2002] HDJ101..MTM |
33136-60021 |
US $167.44 |
||
|
33151
|
33151
33151-60030 Retainer, Output Shaft Rear Bearing(Mtm)[01.1998 - 08.2002] HDJ101..MTM |
33151-60030 |
US $24.98 |
||
|
33195
|
33195
33195-60011 Hanger, Transmission Case, No.1[01.1998 - 08.1999] HDJ101..MTM |
33195-60011 |
US $8.30 |
||
| replacement | |||||
|
33195
|
33195
33195-60012 Hanger, Transmission Case, No.1[01.1998 - 08.1999] HDJ101..MTM |
33195-60012 |
US $6.26 |
||
|
33195
|
33195
33195-60012 Hanger, Transmission Case, No.1[08.1999 - 08.2002] HDJ101..MTM |
33195-60012 |
US $6.26 |
||
|
33196
|
33196
33196-60010 Hanger, Transmission Case, No.2[01.1998 - 08.2002] HDJ101..MTM |
33196-60010 |
US $5.10 |
||
|
33449B
|
33449B
33449-35010 Magnet, Transmission[01.1998 - 08.2002] HDJ101..MTM |
33449-35010 |
US $6.29 |
||
|
9011908333
|
9011908333
90119-08333 BOLT |
90119-08333 |
US $2.15 |
||
|
9011910019
|
9011910019
90119-10019 Bolt(For Transmission Case & Engine Setting) |
90119-10019 |
US $5.02 |
||
|
9011910021
|
9011910021
90119-10021 Bolt, Hexagon(For Idler Arm Support Setting) |
90119-10021 |
US $5.24 |
||
|
9011910180
|
9011910180
90119-10180 Bolt (For Transfer Extension Rear Housing) |
90119-10180 |
US $2.33 |
||
|
9011910665
|
9011910665
90119-10665 BOLT WWASHER |
90119-10665 |
US $2.04 |
||
|
9025010025
|
9025010025
90250-10025 Pin, Straight(For Transfer Adapter) |
90250-10025 |
US $0.96 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.15 |
||
|
9161961245
|
9161961245
91619-61245 Bolt(For Transaxle & Engine Setting) |
91619-61245 |
from US $1.77 |
||
|
9213661240
|
9213661240
92136-61240 Bolt, Stud(For Front Drive Shaft Bearing Bracket) |
92136-61240 |
US $1.51 |
||
