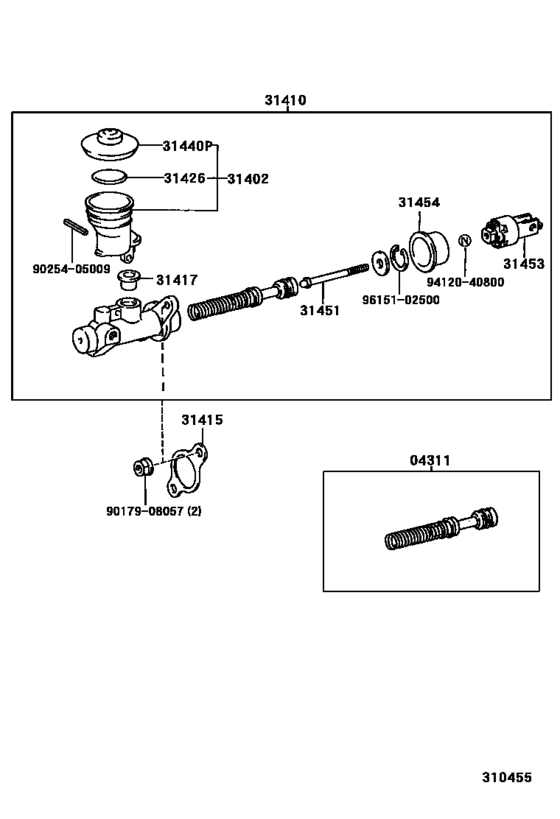

Clutch Master Cylinder ([01.1998 - 08.2002] (9801-0208)MTM) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04311
|
04311
04311-60100 Cylinder Kit, Clutch Master[01.1998 - 08.2002] HDJ101..MTM |
04311-60100 |
from US $22.29 |
||
|
31402
|
31402
31402-35030 Reservoir Sub-Assy, Clutch Master Cylinder[01.1998 - 08.2002] HDJ101..MTM |
31402-35030 |
US $22.01 |
||
|
31410
|
31410
31410-60610 Cylinder Assy, Clutch Master[01.1998 - 08.2002] HDJ101..MTM |
31410-60610 |
US $179.09 |
||
| replacement | |||||
|
31410
|
31410
31410-60650
Cylinder Assy, Clutch Master
[01.1998 - 08.2002] HDJ101..MTM |
31410-60650 |
— | ||
|
31415
|
31415
31415-60020 Gasket, Clutch Master Cylinder[01.1998 - 08.2002] HDJ101..MTM |
31415-60020 |
US $2.33 |
||
|
31417
|
31417
31417-35010 Grommet[01.1998 - 08.2002] HDJ101..MTM |
31417-35010 |
from US $1.96 |
||
|
31426
|
31426
31426-30011
Float, Clutch Master Cylinder Reservoir
[01.1998 - 08.2002] HDJ101..MTM |
31426-30011 |
— | ||
|
31440P
|
31440P
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[01.1998 - 08.2002] HDJ101..MTM |
47230-20040 |
from US $8.68 |
||
|
31451
|
31451
31451-60080 Rod, Clutch Master Cylinder Push[01.1998 - 08.2002] HDJ101..MTM |
31451-60080 |
US $8.39 |
||
|
31453
|
31453
31453-35010 Clevis, Clutch Master Cylinder Push Rod[01.1998 - 08.2002] HDJ101..MTM |
31453-35010 |
US $6.47 |
||
|
31454
|
31454
31454-60020 Boot, Clutch Master Cylinder[01.1998 - 08.2002] HDJ101..MTM |
31454-60020 |
US $3.84 |
||
|
9017908057
|
9017908057
90179-08057 NUT |
90179-08057 |
from US $0.74 |
||
|
9025405009
|
9025405009
90254-05009 New Genuine Part |
90254-05009 |
US $1.43 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9615102500
|
9615102500
96151-02500 Ring, Snap(For Hydraulic Gear Motor) |
96151-02500 |
US $1.31 |
||
