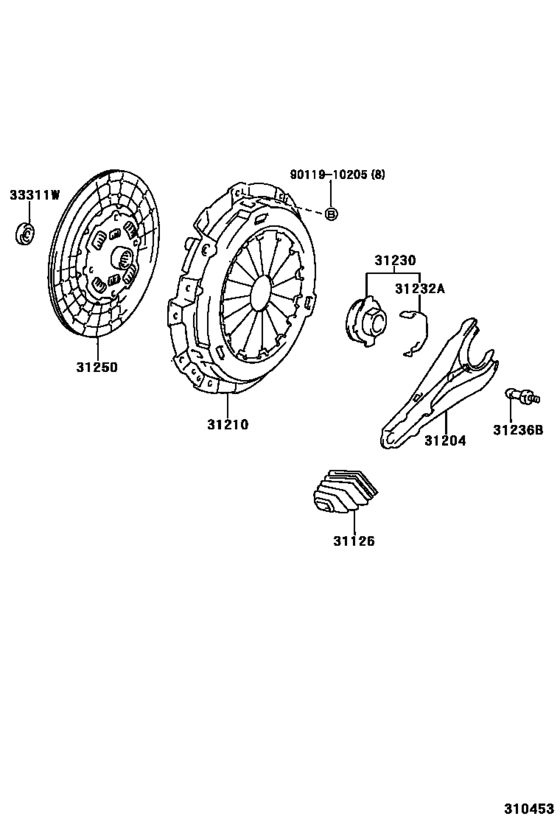

Clutch & Release Fork ([01.1998 - 08.2002] (9801-0208)MTM) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-36090 Boot, Clutch Release Fork[01.1998 - 08.2002] HDJ101..MTM |
31126-36090 |
from US $13.10 |
||
|
31204
|
31204
31204-36142 Fork Sub-Assy, Clutch Release[01.1998 - 08.2002] HDJ101..MTM |
31204-36142 |
from US $57.12 |
||
|
31210
|
31210
31210-36240
Cover Assy, Clutch
[01.1998 - 11.2001] HDJ101..MTM |
31210-36240 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-36320 Cover Assy, ClutchCLUTCH [01.1998 - 11.2001] HDJ101..MTM |
31210-36320 |
from US $251.16 |
||
|
31210
|
31210
31210-60210 Cover Assy, Clutch[11.2001 - 08.2002] HDJ101..MTM |
31210-60210 |
US $310.13 |
||
| replacement | |||||
|
31210
|
31210
31210-36320 Cover Assy, ClutchCLUTCH [11.2001 - 08.2002] HDJ101..MTM |
31210-36320 |
from US $251.16 |
||
|
31230
|
31230
31230-36210 Bearing Assy, Clutch Release[01.1998 - 08.2002] HDJ101..MTM |
31230-36210 |
from US $80.20 |
||
|
31232A
|
31232A
31232-36030 Clip Or Spring, Release Bearing Hub[01.1998 - 08.2002] HDJ101..MTM |
31232-36030 |
from US $1.41 |
||
|
31236B
|
31236B
31236-36060 Ball, Release Fork[01.1998 - 08.2002] HDJ101..MTM |
31236-36060 |
US $8.60 |
||
|
31250
|
31250
31250-60340
Disc Assy, Clutch
[01.1998 - 12.2000] HDJ101..MTM |
31250-60340 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-60391 Disc Assy, Clutch[01.1998 - 12.2000] HDJ101..MTM |
31250-60391 |
from US $308.92 |
||
|
31250
|
31250
31250-60341 Disc Assy, Clutch[12.2000 - 08.2001] HDJ101..MTM |
31250-60341 |
US $467.38 |
||
| replacement | |||||
|
31250
|
31250
31250-60391 Disc Assy, Clutch[12.2000 - 08.2001] HDJ101..MTM |
31250-60391 |
from US $308.92 |
||
|
31250
|
31250
31250-60342 Disc Assy, Clutch[08.2001 - 09.2001] HDJ101..MTM |
31250-60342 |
US $467.38 |
||
| replacement | |||||
|
31250
|
31250
31250-60391 Disc Assy, Clutch[08.2001 - 09.2001] HDJ101..MTM |
31250-60391 |
from US $308.92 |
||
|
31250
|
31250
31250-60343
Disc Assy, Clutch
[09.2001 - 08.2002] HDJ101..MTM |
31250-60343 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-60391 Disc Assy, Clutch[09.2001 - 08.2002] HDJ101..MTM |
31250-60391 |
from US $308.92 |
||
|
33311W
|
33311W
90363-15017 Bearing (For Input Shaft)[01.1998 - 08.2002] HDJ101..MTM |
90363-15017 |
from US $21.84 |
||
|
9011910205
|
9011910205
90119-10205 Bolt |
90119-10205 |
from US $1.05 |
||
