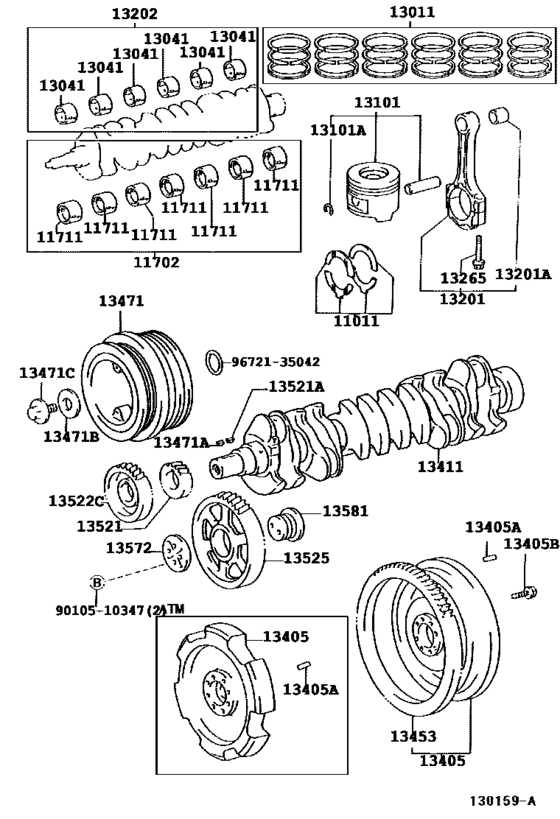

Crankshaft & Piston ([01.1998 - ] (9801- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-17010 Washer Set, Crankshaft Thrust[01.1998 - 08.2002] 1HDFTE..HDJ101 ＳＴＤ |
11011-17010 |
from US $34.73 |
||
|
11702
|
11702
11704-17011 Bearing Set, Crankshaft (US 0.25)[01.1998 - 08.2002] 1HDFTE..HDJ101 Ｕ／Ｓ ０．２５ |
11704-17011 |
from US $141.70 |
||
|
11702
|
11702
11705-17011 Bearing Set, Crankshaft (US 0.50)[01.1998 - 08.2002] 1HDFTE..HDJ101 Ｕ／Ｓ ０．５０ |
11705-17011 |
from US $138.49 |
||
|
11711
|
11711
11701-17011-02 Bearing, Crankshaft[01.1998 - 08.2002] 1HDFTE..HDJ101 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,マーク ２ |
11701-17011-02 |
from US $17.12 |
||
|
11711
|
11711
11701-17011-03 Bearing, Crankshaft[01.1998 - 08.2002] 1HDFTE..HDJ101 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,マーク ３ |
11701-17011-03 |
from US $17.01 |
||
|
11711
|
11711
11701-17011-04 Bearing, Crankshaft[01.1998 - 08.2002] 1HDFTE..HDJ101 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4,マーク ４ |
11701-17011-04 |
from US $17.02 |
||
|
11711
|
11711
11701-17011-05 Bearing, Crankshaft[01.1998 - 08.2002] 1HDFTE..HDJ101 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5,マーク ５ |
11701-17011-05 |
from US $17.08 |
||
|
11711
|
11711
11701-17011-06 Bearing, Crankshaft[01.1998 - 08.2002] 1HDFTE..HDJ101 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 6,マーク ６ |
11701-17011-06 |
from US $17.31 |
||
|
11711
|
11711
11701-17011-07 Bearing, Crankshaft[01.1998 - 08.2002] 1HDFTE..HDJ101 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 7,マーク ７ |
11701-17011-07 |
US $65.18 |
||
|
13011
|
13011
13011-17040 Ring Set, Piston[01.1998 - 08.2002] 1HDFTE..HDJ101 ＳＴＤ |
13011-17040 |
from US $395.75 |
||
|
13011
|
13011
13013-17040 Ring Set, Piston[01.1998 - 08.2002] 1HDFTE..HDJ101 Ｏ／Ｓ ０．５０ |
13013-17040 |
from US $458.41 |
||
|
13041
|
13041
13041-17011-02 Bearing, Connecting Rod[01.1998 - 08.2002] 1HDFTE..HDJ101 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2,マーク ２ |
13041-17011-02 |
from US $12.52 |
||
|
13041
|
13041
13041-17011-03 Bearing, Connecting Rod[01.1998 - 08.2002] 1HDFTE..HDJ101 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3,マーク ３ |
13041-17011-03 |
from US $12.73 |
||
|
13041
|
13041
13041-17011-04 Bearing, Connecting Rod[01.1998 - 08.2002] 1HDFTE..HDJ101 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4,マーク ４ |
13041-17011-04 |
from US $12.62 |
||
|
13041
|
13041
13041-17011-05 Bearing, Connecting Rod[01.1998 - 08.2002] 1HDFTE..HDJ101 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5,マーク ５ |
13041-17011-05 |
from US $13 |
||
|
13041
|
13041
13041-17011-06 Bearing, Connecting Rod[01.1998 - 08.2002] 1HDFTE..HDJ101 ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 6,マーク ６ |
13041-17011-06 |
from US $14.67 |
||
|
13101
|
13101
13101-17110-01 Piston Sub-Assy, W/pin[01.1998 - 08.2002] 1HDFTE..HDJ101 ＳＴＤ,ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
13101-17110-01 |
US $109.86 |
||
|
13101
|
13101
13101-17110-02 Piston Sub-Assy, W/pin[01.1998 - 08.2002] 1HDFTE..HDJ101 ＳＴＤ,ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
13101-17110-02 |
from US $114.29 |
||
|
13101
|
13101
13101-17110-03 Piston Sub-Assy, W/pin[01.1998 - 08.2002] 1HDFTE..HDJ101 ＳＴＤ,ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
13101-17110-03 |
US $186.37 |
||
|
13101
|
13101
13103-17110 Piston Sub-Assy, W/pin (OS 0.50)[01.1998 - 08.2002] 1HDFTE..HDJ101 Ｏ／Ｓ ０．５０ |
13103-17110 |
from US $138.68 |
||
|
13101A
|
13101A
90521-36001 Ring, Hole Snap(For Piston Pin)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90521-36001 |
US $3.05 |
||
|
13201
|
13201
13201-17022 Rod Sub-Assy, Connecting[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13201-17022 |
from US $216.41 |
||
|
13201A
|
13201A
90999-73137 Bush(For Connecting Rod Small End)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90999-73137 |
from US $17.92 |
||
|
13202
|
13202
13204-17011 Bearing Set, Connecting Rod (US 0.25)[01.1998 - 08.2002] 1HDFTE..HDJ101 Ｕ／Ｓ ０．２５ |
13204-17011 |
from US $90.95 |
||
|
13202
|
13202
13205-17011 Bearing Set, Connecting Rod (US 0.50)[01.1998 - 08.2002] 1HDFTE..HDJ101 Ｕ／Ｓ ０．５０ |
13205-17011 |
from US $92.26 |
||
|
13265
|
13265
13265-17010 Bolt, Connecting Rod[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13265-17010 |
from US $4.09 |
||
|
13405
|
13405
13405-17020 Flywheel Sub-Assy[01.1998 - 08.2002] 1HDFTE..HDJ101..MTM |
13405-17020 |
from US $616.99 |
||
|
13405A
|
13405A
90250-10192 Pin, Straight(For Timing Gear Cover Set)[01.1998 - 08.2002] 1HDFTE..HDJ101..MTM 長さ＝２２，外径＝１０ |
90250-10192 |
from US $0.97 |
||
|
13405B
|
13405B
90105-12169 Bolt, Flywheel Setting[01.1998 - 08.2002] 1HDFTE..HDJ101..MTM |
90105-12169 |
from US $1.82 |
||
|
13411
|
13411
13411-17011
Crankshaft
[01.1998 - 05.2001] 1HDFTE..HDJ101 |
13411-17011 |
— | ||
| replacements | |||||
|
13411
|
13411
13411-17012 Crankshaft[01.1998 - 05.2001] 1HDFTE..HDJ101 |
13411-17012 |
from US $1,329.11 |
||
|
13411
|
13411
90311-95008 Seal, Engine Rear Oil[01.1998 - 05.2001] 1HDFTE..HDJ101 |
90311-95008 |
from US $27.72 |
||
|
13411
|
13411
13411-17012 Crankshaft[05.2001 - 08.2002] 1HDFTE..HDJ101 |
13411-17012 |
from US $1,329.11 |
||
|
13453
|
13453
13453-17010 Gear, Flywheel Ring[01.1998 - 08.2002] 1HDFTE..HDJ101..MTM |
13453-17010 |
US $101.34 |
||
|
13471
|
13471
13408-17030 Pulley, Crankshaft[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13408-17030 |
from US $322.92 |
||
|
13471A
|
13471A
95161-30516 Key(For Oil Pump Drive Spline)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
95161-30516 |
from US $1.06 |
||
|
13471B
|
13471B
90201-27001 Washer, Plate(For Crankshaft Pulley Set)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90201-27001 |
from US $7.03 |
||
|
13471C
|
13471C
90105-24001 Bolt(For Crankshaft Pulley Set)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90105-24001 |
from US $6.97 |
||
|
13521
|
13521
13521-17030 Gear Or Sprocket, Crankshaft Timing[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13521-17030 |
from US $45.07 |
||
|
13521A
|
13521A
95161-30516 Key(For Oil Pump Drive Spline)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
95161-30516 |
from US $1.06 |
||
|
13522C
|
13522C
13522-17010 Gear, Pump Drive Shaft[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13522-17010 |
from US $32.01 |
||
|
13525
|
13525
13525-17030 Gear, Idle, No.1[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13525-17030 |
US $211.41 |
||
|
13572
|
13572
13572-17021 Plate, Idle Gear Thrust[01.1998 - 08.2002] 1HDFTE..HDJ101 |
13572-17021 |
from US $7.92 |
||
|
13581
|
13581
13581-17011
Shaft, Idle Gear, No.1
[01.1998 - 04.2001] 1HDFTE..HDJ101 |
13581-17011 |
— | ||
| replacement | |||||
|
13581
|
13581
13581-17012 Shaft, Idle Gear, No.1[01.1998 - 04.2001] 1HDFTE..HDJ101 |
13581-17012 |
from US $20.12 |
||
|
13581
|
13581
13581-17012 Shaft, Idle Gear, No.1[04.2001 - 08.2002] 1HDFTE..HDJ101 |
13581-17012 |
from US $20.12 |
||
|
9010510347
|
9010510347
90105-10347 BOLT WASHER BASED |
90105-10347 |
from US $1.31 |
||
|
9672135042
|
9672135042
96721-35042 RING |
96721-35042 |
from US $2.62 |
||
