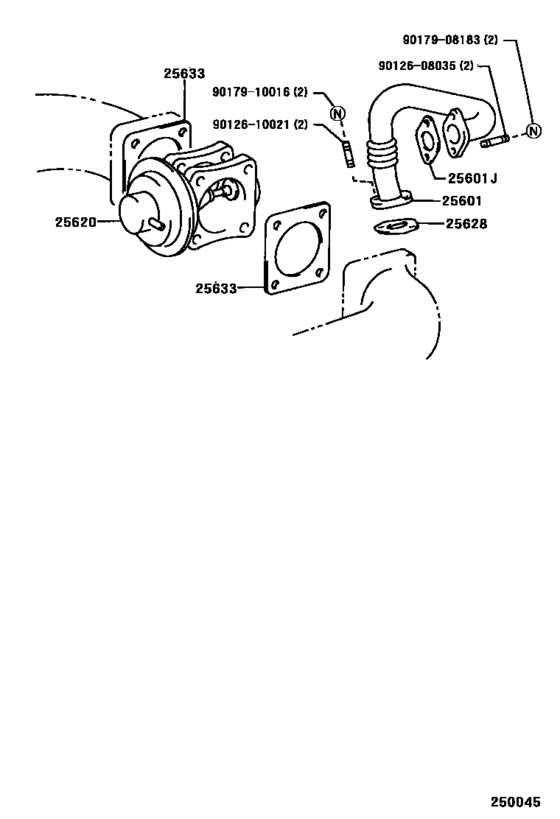

Exhaust Gas Recirculation System ([01.1998 - 08.2002] (9801-0208)1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-17010
Pipe Sub-Assy, Egr, No.1
[01.1998 - 08.2001] 1HDFTE..HDJ101 |
25601-17010 |
— | ||
| replacement | |||||
|
25601
|
25601
25601-17011 Pipe Sub-Assy, Egr, No.1[01.1998 - 08.2001] 1HDFTE..HDJ101 |
25601-17011 |
US $145.02 |
||
|
25601
|
25601
25601-17011 Pipe Sub-Assy, Egr, No.1[08.2001 - 08.2002] 1HDFTE..HDJ101 |
25601-17011 |
US $145.02 |
||
|
25601J
|
25601J
25634-17010 Gasket(For Egr Pipe, No.1)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
25634-17010 |
from US $2.87 |
||
|
25620
|
25620
25620-17020 Valve Assy, Egr[01.1998 - 08.2002] 1HDFTE..HDJ101 |
25620-17020 |
from US $220.97 |
||
|
25628
|
25628
25628-17010 Gasket, Egr Inlet[01.1998 - 08.2002] 1HDFTE..HDJ101 |
25628-17010 |
from US $9.35 |
||
|
25633
|
25633
25633-17010
Gasket, Egr Valve
[01.1998 - 08.2001] 1HDFTE..HDJ101 |
25633-17010 |
— | ||
| replacement | |||||
|
25633
|
25633
25633-17020 Gasket, Egr Valve[01.1998 - 08.2001] 1HDFTE..HDJ101 |
25633-17020 |
from US $4.50 |
||
|
25633
|
25633
25633-17020 Gasket, Egr Valve[08.2001 - 08.2002] 1HDFTE..HDJ101 |
25633-17020 |
from US $4.50 |
||
|
9012608035
|
9012608035
90126-08035 STUD, HEX LOBULAR |
90126-08035 |
from US $2.41 |
||
|
9012610021
|
9012610021
90126-10021 STUD, HEX LOBULAR |
90126-10021 |
US $7.71 |
||
|
9017908183
|
9017908183
90179-08183 NUT |
90179-08183 |
from US $1.05 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.91 |
||
