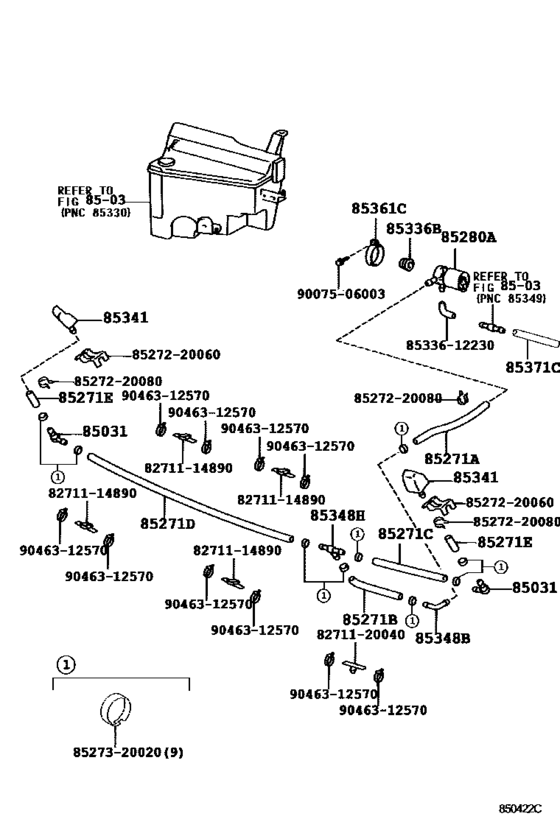

Headlamp Cleaner ([01.1998 - 08.2002] (9801-0208)VX,VXL) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031
|
85031
85031-30020 Valve, Headlamp Cleaner Washer Hose[01.1998 - 08.2002] HDJ101,UZJ100 |
85031-30020 |
from US $32.66 |
||
|
85271A
|
85271A
90075-15009 Hose, Headlamp Cleaner, No.2[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
90075-15009 |
US $16.31 |
||
|
85271B
|
85271B
85271-22060 Hose, Headlamp Cleaner, No.3[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL 長さ＝１０７０ |
85271-22060 |
US $11.07 |
||
|
85271C
|
85271C
85343-95A06 Hose, Headlamp Cleaner, No.4[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL 長さ＝９０ |
85343-95A06 |
US $9.76 |
||
| replacement | |||||
|
85271C
|
85271C
85375-20190 Hose, Headlamp Cleaner, No.2[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL 長さ＝９０ |
85375-20190 |
US $5.39 |
||
|
85271D
|
85271D
85275-50010 Hose, Headlamp Cleaner, No.5[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL 長さ＝１１２４ |
85275-50010 |
US $31.60 |
||
| replacement | |||||
|
85271D
|
85271D
85275-60340 Hose, Headlamp Cleaner, No.5HEADLAMP CLEANER, NO.4 [01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL 長さ＝１１２４ |
85275-60340 |
US $43.68 |
||
|
85271E
|
85271E
85375-16020 Hose, Headlamp Cleaner, No.5[01.1998 - 08.2002] HDJ101,UZJ100 長さ＝４０ |
85375-16020 |
from US $3.05 |
||
|
85280A
|
85280A
85280-30020 Motor And Pump Assy, Headlamp Cleaner[01.1998 - 08.2002] HDJ101,UZJ100 |
85280-30020 |
from US $161.84 |
||
|
85336B
|
85336B
85336-10010 Bush, Windshield Washer Jar[01.1998 - 08.2002] HDJ101,UZJ100 |
85336-10010 |
from US $3.61 |
||
|
85341
|
85341
85044-60060 Nozzle, Headlamp Cleaner Washer[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
85044-60060 |
from US $22.02 |
||
|
85348B
|
85348B
85379-90K04 Joint, Headlamp Cleaner Hose, No.2[01.1998 - 08.2002] HDJ101,UZJ100 |
85379-90K04 |
US $3.20 |
||
|
85348H
|
85348H
85352-12010 Joint, Headlamp Cleaner Hose, No.1[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
85352-12010 |
from US $5.72 |
||
|
85361C
|
85361C
85361-33020 Bracket, Washer[01.1998 - 08.2002] HDJ101,UZJ100 |
85361-33020 |
from US $5.70 |
||
|
85371C
|
85371C
85359-60120
Hose, Headlamp Cleaner, No.1
[01.1998 - 08.2002] HDJ101,UZJ100 長さ＝２７５ |
85359-60120 |
— | ||
|
8271114890
|
8271114890
82711-14890 Wire, Fuse To Fuse(for Combustion Heater) |
82711-14890 |
US $2.15 |
||
|
8271120040
|
8271120040
82711-20040 Wire, Fuse To Fuse(for Combustion Heater) |
82711-20040 |
US $2.33 |
||
|
8527220060
|
8527220060
85272-20060 Clamp, Headlamp Cleaner, No.1 |
85272-20060 |
from US $2 |
||
|
8527220080
|
8527220080
85272-20080 Clamp, Headlamp Cleaner, No.1 |
85272-20080 |
from US $1.77 |
||
|
8527320020
|
8527320020
85273-20020 Clamp, Headlamp Cleaner, No.1 |
85273-20020 |
from US $1.73 |
||
|
8533612230
|
8533612230
85336-12230 Joint, Windshield Washer Elbow, No.1 |
85336-12230 |
US $3.84 |
||
|
9007506003
|
9007506003
90075-06003 BOLT |
90075-06003 |
US $3.14 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.58 |
||
