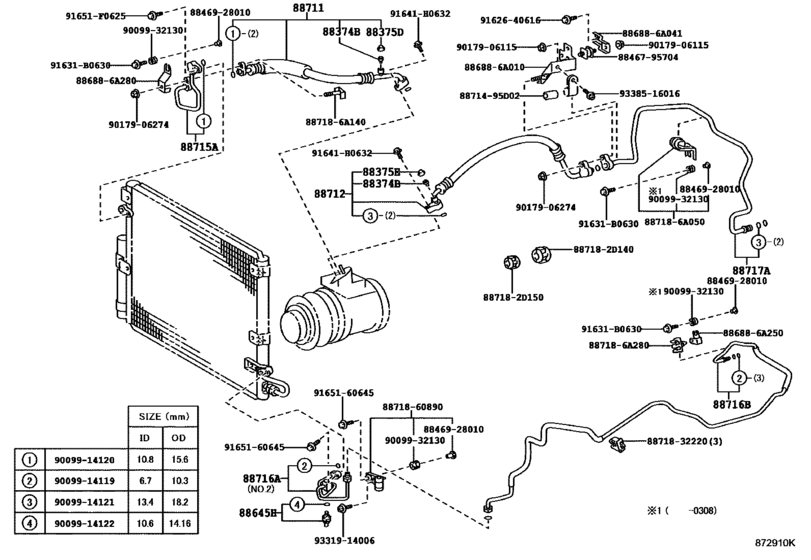

Heating & Air Conditioning - Cooler Piping ([01.1998 - ] ﾌﾛﾝﾄ(ｼﾝｸﾞﾙ ｴｱｺﾝ) (9801- )HDJ101) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[01.1998 - 08.2002] HDJ101,UZJ100 |
88374-30010 |
from US $3.08 |
||
|
88375D
|
88375D
88375-30280 Cap, Service Valve (For Cooler Pipe)[01.1998 - 08.2002] HDJ101,UZJ100 |
88375-30280 |
from US $0.98 |
||
|
88375E
|
88375E
88375-30290 Cap, Service Valve (For Cooler Pipe)[01.1998 - 08.2002] HDJ101,UZJ100 |
88375-30290 |
from US $0.78 |
||
|
88645H
|
88645H
88645-34010 Switch, Pressure[01.1998 - 08.2002] HDJ101 |
88645-34010 |
from US $31.94 |
||
| replacement | |||||
|
88645H
|
88645H
88645-04040 Switch, Pressure[01.1998 - 08.2002] HDJ101 |
88645-04040 |
US $120.41 |
||
|
88711
|
88711
88711-60430 Hose, Cooler Refrigerant Discharge, No.1[01.1998 - 08.2002] HDJ101 |
88711-60430 |
US $187.82 |
||
| replacement | |||||
|
88711
|
88711
88711-60431 Hose, Cooler Refrigerant Discharge, No.1[01.1998 - 08.2002] HDJ101 |
88711-60431 |
from US $184.49 |
||
|
88712
|
88712
88704-60160 Hose, Cooler Refrigerant Suction, No.1[01.1998 - 08.2002] HDJ101 |
88704-60160 |
US $224.22 |
||
|
88715A
|
88715A
88715-60140 Pipe, Cooler Refrigerant Discharge, A[01.1998 - 10.1998] HDJ101 |
88715-60140 |
US $63.77 |
||
|
88715A
|
88715A
88715-60141
Pipe, Cooler Refrigerant Discharge, A
[10.1998 - 08.2002] HDJ101 |
88715-60141 |
— | ||
|
88716A
|
88716A
88716-6A850 Pipe, Cooler Refrigerant Liquid, A[01.1998 - 08.2002] HDJ101 ＮＯ．１ |
88716-6A850 |
from US $34.83 |
||
|
88716A
|
88716A
88726-60420 Pipe, Cooler Refrigerant Liquid, A[01.1998 - 09.1998] HDJ101 ＮＯ．２ |
88726-60420 |
US $68.43 |
||
| replacement | |||||
|
88716A
|
88716A
88726-60421 Pipe, Cooler Refrigerant Liquid, A[01.1998 - 09.1998] HDJ101 ＮＯ．２ |
88726-60421 |
US $83.64 |
||
|
88716A
|
88716A
88726-60421 Pipe, Cooler Refrigerant Liquid, A[09.1998 - 08.2002] HDJ101 ＮＯ．２ |
88726-60421 |
US $83.64 |
||
|
88716A
|
88716A
88726-60430
Pipe, Cooler Refrigerant Liquid, A
[01.1998 - 08.2002] HDJ101 ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),ＮＯ．２ |
88726-60430 |
— | ||
|
88716B
|
88716B
88716-6B070
Pipe, Cooler Refrigerant Liquid, B
[01.1998 - 08.2002] HDJ101 |
88716-6B070 |
— | ||
|
88716B
|
88716B
88726-60440 Pipe, Cooler Refrigerant Liquid, B[01.1998 - 08.2002] HDJ101 ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
88726-60440 |
from US $29.56 |
||
|
88717A
|
88717A
88717-6A120 Pipe, Cooler Refrigerant Suction, A[01.1998 - 08.2002] HDJ101 |
88717-6A120 |
US $187.47 |
||
|
91631B0630
|
91631B0630
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.69 |
||
|
91641H0632
|
91641H0632
91641-H0632 BOLT WWASHER |
91641-H0632 |
US $1.60 |
||
|
91651F0625
|
91651F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
886886A010
|
886886A010
88688-6A010
Bracket, Cooler Diaphragm
|
88688-6A010 |
— | ||
|
886886A041
|
886886A041
88688-6A041
Bracket, Cooler Diaphragm
|
88688-6A041 |
— | ||
|
886886A250
|
886886A250
88688-6A250
Bracket, Cooler Diaphragm
|
88688-6A250 |
— | ||
|
886886A280
|
886886A280
88688-6A280
Bracket, Cooler Diaphragm
|
88688-6A280 |
— | ||
|
887182D140
|
887182D140
88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D140 |
from US $6.46 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.55 |
||
|
887186A050
|
887186A050
88718-6A050
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A050 |
— | ||
|
887186A140
|
887186A140
88718-6A140
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A140 |
— | ||
|
887186A280
|
887186A280
88718-6A280
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A280 |
— | ||
|
8871495D02
|
8871495D02
88714-95D02
Hose, Cooler Refrigerant Liquid, No.1
|
88714-95D02 |
— | ||
|
8846795704
|
8846795704
88467-95704 Cushion, Cooler Condenser, No.1 |
88467-95704 |
US $3.72 |
||
|
8846928010
|
8846928010
88469-28010
Collar, Condenser Bracket, No.1
|
88469-28010 |
— | ||
|
8871832220
|
8871832220
88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2 |
88718-32220 |
from US $1.43 |
||
|
8871860890
|
8871860890
88718-60890
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60890 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.62 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.67 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.79 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.54 |
||
|
9009914122
|
9009914122
90099-14122 O-RING |
90099-14122 |
from US $1.18 |
||
|
9009932130
|
9009932130
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9162640616
|
9162640616
91626-40616 New Genuine Part |
91626-40616 |
US $1.38 |
||
|
9165160645
|
9165160645
91651-60645 BOLT |
91651-60645 |
US $1.79 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
