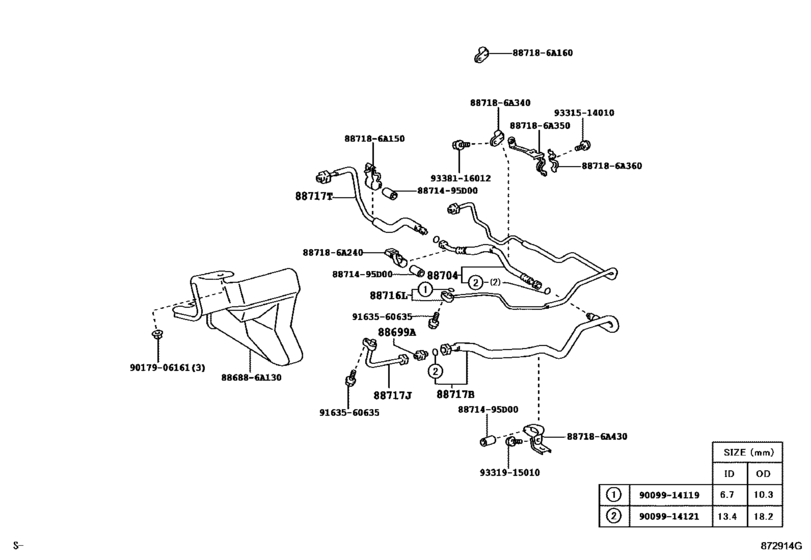

Heating & Air Conditioning - Cooler Piping ([01.1998 - ] ﾘﾔ,ｱﾘ(ｸｰﾙﾎﾞﾂｸｽ) (9801- )HDJ101) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88699A
|
88699A
88699-60010 Valve, Air[01.1998 - 08.2002] HDJ101,UZJ100 |
88699-60010 |
US $21.39 |
||
|
88704
|
88704
88704-60230 Hose Sub-Assy, Suction[01.1998 - 08.2002] HDJ101,UZJ100 |
88704-60230 |
US $190.44 |
||
|
88716L
|
88716L
88726-60660 Pipe, Cooler Refrigerant Liquid, L[01.1998 - 08.2002] HDJ101 |
88726-60660 |
US $153.75 |
||
|
88717B
|
88717B
88717-6A230 Pipe, Cooler Refrigerant Suction, B[01.1998 - 08.2002] HDJ101 ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
88717-6A230 |
US $454.27 |
||
|
88717J
|
88717J
88717-6A240 Pipe, Cooler Refrigerant Suction, J[01.1998 - 08.2002] HDJ101,UZJ100 |
88717-6A240 |
US $48.05 |
||
|
88717T
|
88717T
88717-6A270 Pipe, Cooler Refrigerant Suction, T[01.1998 - 08.2002] HDJ101,UZJ100 |
88717-6A270 |
US $217.60 |
||
|
886886A130
|
886886A130
88688-6A130
Bracket, Cooler Diaphragm
|
88688-6A130 |
— | ||
|
887186A150
|
887186A150
88718-6A150 Pipe, Cooler Refrigerant Suction, No.2 |
88718-6A150 |
US $8.74 |
||
|
887186A160
|
887186A160
88718-6A160
Clamp(For Cooler Refrigerant Pipe), No.5
|
88718-6A160 |
— | ||
|
887186A240
|
887186A240
88718-6A240
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A240 |
— | ||
|
887186A340
|
887186A340
88718-6A340
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A340 |
— | ||
|
887186A350
|
887186A350
88718-6A350
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A350 |
— | ||
|
887186A360
|
887186A360
88718-6A360
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A360 |
— | ||
|
887186A430
|
887186A430
88718-6A430
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A430 |
— | ||
|
8871495D00
|
8871495D00
88714-95D00 Hose, Cooler Refrigerant Liquid, No.1 |
88714-95D00 |
US $2.66 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.62 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.67 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.54 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.78 |
||
|
9163560635
|
9163560635
91635-60635 BOLT WWASHER |
91635-60635 |
US $1.75 |
||
| replacement | |||||
|
9163560635
|
9163560635
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.69 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.74 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.51 |
||
