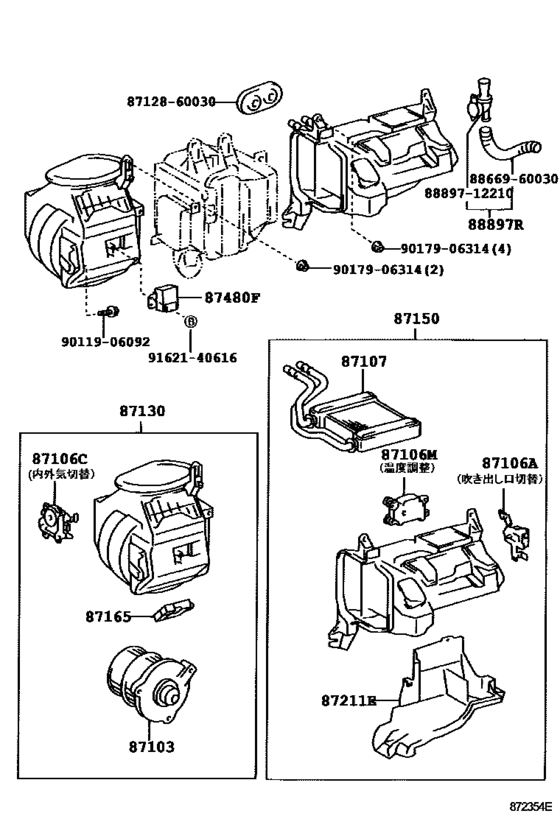

Heating & Air Conditioning - Heater Unit & Blower ([01.1998 - ] ﾌﾛﾝﾄ (9801- )) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87103
|
87103
87103-60190 Motor Sub-Assy, Heater Blower, W/fan[01.1998 - 08.2002] HDJ101,UZJ100 |
87103-60190 |
US $383.52 |
||
|
87106A
|
87106A
87106-60090 Servo Sub-Assy, Damper[01.1998 - 08.2002] HDJ101,UZJ100 |
87106-60090 |
from US $193.84 |
||
|
87106C
|
87106C
87106-60080
Servo Sub-Assy, Damper(For Blower)
[01.1998 - 08.2002] HDJ101,UZJ100 |
87106-60080 |
— | ||
|
87106M
|
87106M
87106-60100 Servo Sub-Assy, Damper, No.2[01.1998 - 08.2002] HDJ101,UZJ100 |
87106-60100 |
from US $150.20 |
||
|
87107
|
87107
87107-60290
Unit Sub-Assy, Heater Radiator
[01.1998 - 08.2002] HDJ101,UZJ100 |
87107-60290 |
— | ||
|
87107
|
87107
87107-60340
Unit Sub-Assy, Heater Radiator
[01.1998 - 08.2002] HDJ101 ｶﾝﾚｲﾁ ｼﾖｳ |
87107-60340 |
— | ||
|
87130
|
87130
87130-60340
Blower Assy, Heater, Front
[01.1998 - 06.1998] HDJ101,UZJ100 |
87130-60340 |
— | ||
| replacement | |||||
|
87130
|
87130
87130-60341
Blower Assy, Heater, Front
[01.1998 - 06.1998] HDJ101,UZJ100 |
87130-60341 |
— | ||
|
87130
|
87130
87130-60341
Blower Assy, Heater, Front
[06.1998 - 08.2002] HDJ101,UZJ100 |
87130-60341 |
— | ||
|
87150
|
87150
87150-60481
Radiator Assy, Heater
[01.1998 - 04.2002] HDJ101,UZJ100 |
87150-60481 |
— | ||
| replacement | |||||
|
87150
|
87150
87150-60790
Radiator Assy, Heater
[01.1998 - 04.2002] HDJ101,UZJ100 |
87150-60790 |
— | ||
|
87150
|
87150
87150-60651
Radiator Assy, Heater
[01.1998 - 04.2002] HDJ101 ｶﾝﾚｲﾁ ｼﾖｳ |
87150-60651 |
— | ||
| replacement | |||||
|
87150
|
87150
87150-60800
Radiator Assy, Heater
[01.1998 - 04.2002] HDJ101 ｶﾝﾚｲﾁ ｼﾖｳ |
87150-60800 |
— | ||
|
87150
|
87150
87150-60790
Radiator Assy, Heater
[04.2002 - 08.2002] HDJ101,UZJ100 |
87150-60790 |
— | ||
|
87150
|
87150
87150-60800
Radiator Assy, Heater
[04.2002 - 08.2002] HDJ101 ｶﾝﾚｲﾁ ｼﾖｳ |
87150-60800 |
— | ||
|
87165
|
87165
87165-60010 Control, Blower Motor, No.1[01.1998 - 08.2002] HDJ101,UZJ100 |
87165-60010 |
US $188.70 |
||
|
87211E
|
87211E
87211-60300
Duct, Air
[01.1998 - 08.2002] HDJ101,UZJ100 |
87211-60300 |
— | ||
|
87480F
|
87480F
87480-60010
Amplifier Assy, Heater
[01.1998 - 05.2000] HDJ101 |
87480-60010 |
— | ||
|
87480F
|
87480F
87480-60030
Amplifier Assy, Heater
[05.2000 - 08.2002] HDJ101 |
87480-60030 |
— | ||
|
88897R
|
88897R
88897-60040
Aspirator
[01.1998 - 08.2002] HDJ101,UZJ100 |
88897-60040 |
— | ||
|
8712860030
|
8712860030
87128-60030
Grommet, Heater
|
87128-60030 |
— | ||
|
8866960030
|
8866960030
88669-60030
Hose (For Cooler Thermistor)
|
88669-60030 |
— | ||
| replacement | |||||
|
8866960030
|
8866960030
88669-33090
Hose (For Cooler Thermistor)
|
88669-33090 |
— | ||
|
8889712210
|
8889712210
88897-12210
Aspirator
|
88897-12210 |
— | ||
|
9011906092
|
9011906092
90119-06092
New Genuine Part
|
90119-06092 |
— | ||
| replacement | |||||
|
9011906092
|
9011906092
90119-06699 BOLT WWASHER |
90119-06699 |
from US $0.68 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.78 |
||
|
9162140616
|
9162140616
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.43 |
||
