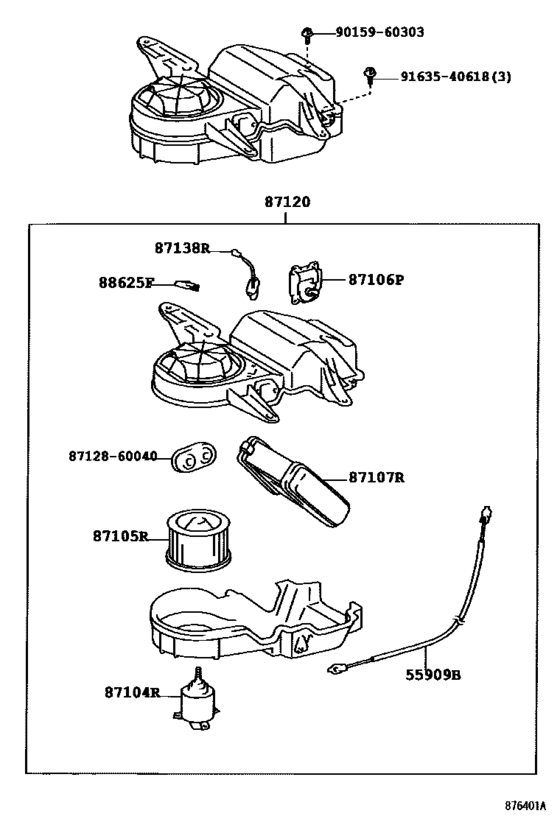

Heating & Air Conditioning - Heater Unit & Blower ([01.1998 - ] ﾘﾔ (9801- )) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55909B
|
55909B
55909-60090
Cable Sub-Assy, Airmix Damper Control
[01.1998 - 08.2002] HDJ101 |
55909-60090 |
— | ||
|
87104R
|
87104R
87104-60260 Motor Sub-Assy, Rear Heater Blower[01.1998 - 07.1998] HDJ101,UZJ100 |
87104-60260 |
US $260.62 |
||
| replacement | |||||
|
87104R
|
87104R
87104-60261 Motor Sub-Assy, Rear Heater Blower[01.1998 - 07.1998] HDJ101,UZJ100 |
87104-60261 |
from US $241.17 |
||
|
87104R
|
87104R
87104-60261 Motor Sub-Assy, Rear Heater Blower[07.1998 - 08.2002] HDJ101,UZJ100 |
87104-60261 |
from US $241.17 |
||
|
87105R
|
87105R
87105-26040 Fan Sub-Assy, Blower, Rear[01.1998 - 08.2002] HDJ101,UZJ100 |
87105-26040 |
US $21.11 |
||
|
87107R
|
87107R
87107-35040
Unit Sub-Assy, Rear Heater
[01.1998 - 08.2002] HDJ101,UZJ100 |
87107-35040 |
— | ||
|
87120
|
87120
87110-60240
Heater Assy, Rear
[01.1998 - 07.1998] HDJ101 |
87110-60240 |
— | ||
| replacements | |||||
|
87120
|
87120
87212-60122
Duct, Air, Rear No.1
[01.1998 - 07.1998] HDJ101 |
87212-60122 |
— | ||
|
87120
|
87120
87110-60241
Heater Assy, Rear
[01.1998 - 07.1998] HDJ101 |
87110-60241 |
— | ||
|
87120
|
87120
87110-60241
Heater Assy, Rear
[07.1998 - 08.2002] HDJ101 |
87110-60241 |
— | ||
|
87138R
|
87138R
87138-35070
Resistor, Rear Heater Blower
[01.1998 - 08.2002] HDJ101 |
87138-35070 |
— | ||
|
8712860040
|
8712860040
87128-60040
Grommet, Heater
|
87128-60040 |
— | ||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9163540618
|
9163540618
91635-40618 BOLT WWASHER |
91635-40618 |
from US $0.78 |
||
