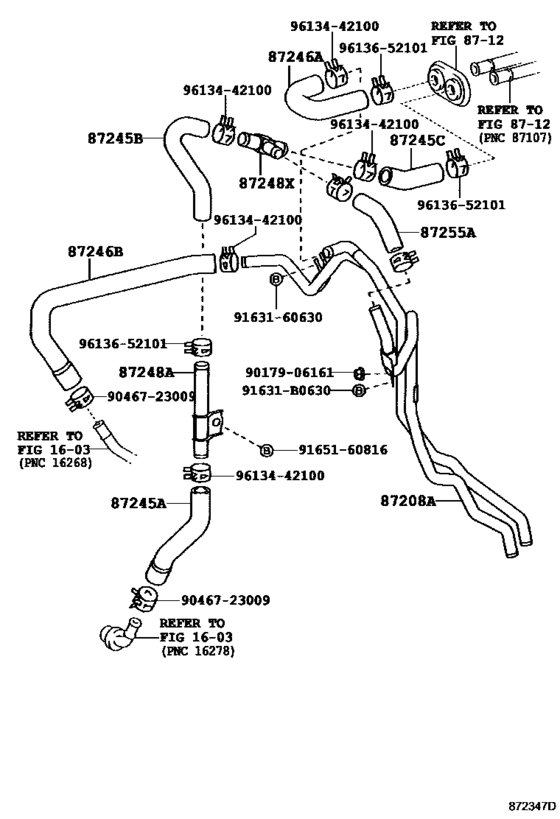

Heating & Air Conditioning - Water Piping ([01.1998 - ] ﾌﾛﾝﾄ (9801- )HDJ101) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87208A
|
87208A
87208-60590
Pipe Sub-Assy, Heater Water, A
[01.1998 - 08.2002] HDJ101 |
87208-60590 |
— | ||
|
87245A
|
87245A
87245-6A020 Hose, Heater Water, Inlet A[01.1998 - 08.2002] HDJ101 |
87245-6A020 |
US $14.33 |
||
|
87245B
|
87245B
87245-6A260 Hose, Heater Water, Inlet B[01.1998 - 08.2002] HDJ101 ｱﾘ(ﾋﾞｽｶｽﾋ-ﾀ) |
87245-6A260 |
US $17.56 |
||
|
87245B
|
87245B
87245-6A300 Hose, Heater Water, Inlet B[01.1998 - 08.2002] HDJ101 |
87245-6A300 |
from US $17.98 |
||
|
87245C
|
87245C
87245-6A250 Hose, Heater Water ,inlet C[01.1998 - 08.2002] HDJ101 |
87245-6A250 |
US $10.39 |
||
|
87246A
|
87246A
87245-6A270 Hose, Heater Water, Outlet A[01.1998 - 08.2002] HDJ101 |
87245-6A270 |
from US $17.56 |
||
|
87246B
|
87246B
87245-6A230
Hose, Heater Water, Outlet B
[01.1998 - 08.2001] HDJ101 |
87245-6A230 |
— | ||
| replacement | |||||
|
87246B
|
87246B
87245-6A231 Hose, Heater Water, Outlet B[01.1998 - 08.2001] HDJ101 |
87245-6A231 |
from US $20.97 |
||
|
87246B
|
87246B
87245-6A231 Hose, Heater Water, Outlet B[08.2001 - 08.2002] HDJ101 |
87245-6A231 |
from US $20.97 |
||
|
87248A
|
87248A
87208-60540 Pipe, Heater Water Inlet, A[01.1998 - 08.2002] HDJ101 |
87208-60540 |
US $17.12 |
||
|
87248X
|
87248X
87248-60460 Pipe Sub-Assy, Heater Water[01.1998 - 08.2002] HDJ101 |
87248-60460 |
from US $7.03 |
||
|
87255A
|
87255A
87245-6A280 Hose, Rear Heater Water Inlet, A(From Engine)[01.1998 - 08.2002] HDJ101 |
87245-6A280 |
from US $9.68 |
||
|
91631B0630
|
91631B0630
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.69 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.78 |
||
|
9046723009
|
9046723009
90467-23009 Clip Or Clamp(For Ventilation Hose) |
90467-23009 |
from US $2.36 |
||
|
9163160630
|
9163160630
91631-60630 BOLT WWASHER |
91631-60630 |
US $1.75 |
||
| replacement | |||||
|
9163160630
|
9163160630
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.69 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9613442100
|
9613442100
96134-42100 Clip(For Water By-Pass Hose Assy) |
96134-42100 |
from US $0.96 |
||
|
9613652101
|
9613652101
96136-52101 Clip(For Ventilation Hose) |
96136-52101 |
from US $2.37 |
||
