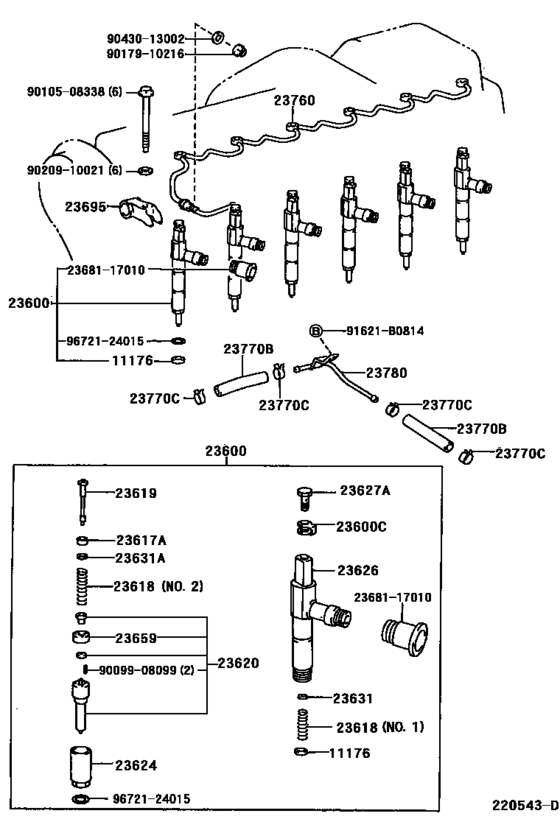

Injection Nozzle ([01.1998 - 08.2002] (9801-0208)1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11176
|
11176
11176-17020
Seat, Injection Nozzle
[01.1998 - 05.2000] 1HDFTE..HDJ101 |
11176-17020 |
— | ||
| replacement | |||||
|
11176
|
11176
11176-27011 Seat, Injection NozzleINJECTION NOZZLE [01.1998 - 05.2000] 1HDFTE..HDJ101 |
11176-27011 |
from US $3.31 |
||
|
11176
|
11176
11176-27010
Seat, Injection Nozzle
[05.2000 - 08.2002] 1HDFTE..HDJ101 |
11176-27010 |
— | ||
| replacement | |||||
|
11176
|
11176
11176-27011 Seat, Injection NozzleINJECTION NOZZLE [05.2000 - 08.2002] 1HDFTE..HDJ101 |
11176-27011 |
from US $3.31 |
||
|
23600
|
23600
23600-19085
Holder & Nozzle Set, Nozzle
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23600-19085 |
— | ||
| replacement | |||||
|
23600
|
23600
23600-19086 Holder & Nozzle Set, Nozzle[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23600-19086 |
from US $347.26 |
||
|
23600C
|
23600C
90904-30006 Gasket(For Holder & Nozzle Set)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90904-30006 |
from US $2.39 |
||
|
23617A
|
23617A
23617-17070
Seat, Pressure Spring, No.1
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23617-17070 |
— | ||
|
23618
|
23618
23618-17060
Spring, Nozzle Holder Pressure
[01.1998 - 08.2002] 1HDFTE..HDJ101 ＮＯ．１ |
23618-17060 |
— | ||
|
23618
|
23618
23618-17080
Spring, Nozzle Holder Pressure
[01.1998 - 08.2002] 1HDFTE..HDJ101 ＮＯ．２ |
23618-17080 |
— | ||
|
23619
|
23619
23619-17070
Pin, Nozzle Holder Pressure
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23619-17070 |
— | ||
|
23620
|
23620
23602-17080 Nozzle Assy[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23602-17080 |
from US $103.34 |
||
|
23624
|
23624
23624-17070
Nut, Nozzle Retaining
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23624-17070 |
— | ||
|
23626
|
23626
23626-17080
Body Sub-Assy, Nozzle
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23626-17080 |
— | ||
|
23627A
|
23627A
23656-78030 Screw, Follow(For Nozzle)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23656-78030 |
from US $2.62 |
||
|
23631
|
23631
23631-17010
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．２８ |
23631-17010 |
— | ||
|
23631
|
23631
23631-17029
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．８ |
23631-17029 |
— | ||
|
23631
|
23631
23631-17030
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．９ |
23631-17030 |
— | ||
|
23631
|
23631
23631-17031
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．９７５ |
23631-17031 |
— | ||
|
23631
|
23631
23631-17032
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．０５ |
23631-17032 |
— | ||
|
23631
|
23631
23631-17033
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．１２５ |
23631-17033 |
— | ||
|
23631
|
23631
23631-17034
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．２ |
23631-17034 |
— | ||
|
23631
|
23631
23631-17035
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．２７５ |
23631-17035 |
— | ||
|
23631
|
23631
23631-17036
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．３５ |
23631-17036 |
— | ||
|
23631
|
23631
23631-17037
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．４２５ |
23631-17037 |
— | ||
|
23631
|
23631
23631-17038
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．５ |
23631-17038 |
— | ||
|
23631
|
23631
23631-17039
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．５７５（ＤＡ＝６．２） |
23631-17039 |
— | ||
|
23631
|
23631
23631-17040
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．８５ |
23631-17040 |
— | ||
|
23631
|
23631
23631-17041
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．８７５ |
23631-17041 |
— | ||
|
23631
|
23631
23631-17042
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．９２５ |
23631-17042 |
— | ||
|
23631
|
23631
23631-17043
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．９５ |
23631-17043 |
— | ||
|
23631
|
23631
23631-17044
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．０ |
23631-17044 |
— | ||
|
23631
|
23631
23631-17045
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．０２５ |
23631-17045 |
— | ||
|
23631
|
23631
23631-17046
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．０７５ |
23631-17046 |
— | ||
|
23631
|
23631
23631-17047
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．１ |
23631-17047 |
— | ||
|
23631
|
23631
23631-17048
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．１５ |
23631-17048 |
— | ||
|
23631
|
23631
23631-17049
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．１７５ |
23631-17049 |
— | ||
|
23631
|
23631
23631-17050
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．２２５ |
23631-17050 |
— | ||
|
23631
|
23631
23631-17051
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．２５ |
23631-17051 |
— | ||
|
23631
|
23631
23631-17052
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．３ |
23631-17052 |
— | ||
|
23631
|
23631
23631-17053
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．３２５ |
23631-17053 |
— | ||
|
23631
|
23631
23631-17054
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．３７５ |
23631-17054 |
— | ||
|
23631
|
23631
23631-17055
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．４ |
23631-17055 |
— | ||
|
23631
|
23631
23631-17056
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．４５ |
23631-17056 |
— | ||
|
23631
|
23631
23631-17057
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．４７５ |
23631-17057 |
— | ||
|
23631
|
23631
23631-17058
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．５２５ |
23631-17058 |
— | ||
|
23631
|
23631
23631-17060
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．６５ |
23631-17060 |
— | ||
|
23631
|
23631
23631-17061
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．７２５（ＤＡ＝６．２） |
23631-17061 |
— | ||
|
23631
|
23631
23631-17062
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．８ |
23631-17062 |
— | ||
|
23631
|
23631
23631-17063
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．８７５ |
23631-17063 |
— | ||
|
23631
|
23631
23631-17064
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．９５ |
23631-17064 |
— | ||
|
23631
|
23631
23631-17065
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝２．０ |
23631-17065 |
— | ||
|
23631
|
23631
23631-17066
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝２．１ |
23631-17066 |
— | ||
|
23631
|
23631
23631-17067
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝２．１７５ |
23631-17067 |
— | ||
|
23631
|
23631
23631-17068
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．６ |
23631-17068 |
— | ||
|
23631
|
23631
23631-17069
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．６２５ |
23631-17069 |
— | ||
|
23631
|
23631
23631-17079
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．８２５ |
23631-17079 |
— | ||
|
23631
|
23631
23632-17020
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．６７５ |
23632-17020 |
— | ||
|
23631
|
23631
23632-17021
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．７ |
23632-17021 |
— | ||
|
23631
|
23631
23632-17022
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．７５ |
23632-17022 |
— | ||
|
23631
|
23631
23632-17023
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．７７５ |
23632-17023 |
— | ||
|
23631
|
23631
23632-17024
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．８２５ |
23632-17024 |
— | ||
|
23631
|
23631
23632-17025
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．８５ |
23632-17025 |
— | ||
|
23631
|
23631
23632-17026
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．９ |
23632-17026 |
— | ||
|
23631
|
23631
23632-17027
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．９２５ |
23632-17027 |
— | ||
|
23631
|
23631
23632-17028
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．９７５ |
23632-17028 |
— | ||
|
23631
|
23631
23632-17029
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝２．０５ |
23632-17029 |
— | ||
|
23631
|
23631
23632-17030
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝２．０７５ |
23632-17030 |
— | ||
|
23631
|
23631
23632-17031
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝２．１２５ |
23632-17031 |
— | ||
|
23631
|
23631
23632-17032
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝２．１５ |
23632-17032 |
— | ||
|
23631
|
23631
23632-17033
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝２．２ |
23632-17033 |
— | ||
|
23631
|
23631
23632-17037
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝２．０２５ |
23632-17037 |
— | ||
|
23631A
|
23631A
23631-17020
Washer(For Nozzle Holder Pressure Spring No.1)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．８５ |
23631-17020 |
— | ||
|
23631A
|
23631A
23631-17021
Washer(For Nozzle Holder Pressure Spring No.1)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．９５ |
23631-17021 |
— | ||
|
23631A
|
23631A
23631-17022
Washer(For Nozzle Holder Pressure Spring No.1)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝２．０ |
23631-17022 |
— | ||
|
23631A
|
23631A
23631-17023
Washer(For Nozzle Holder Pressure Spring No.1)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝２．１ |
23631-17023 |
— | ||
|
23631A
|
23631A
23631-17024
Washer(For Nozzle Holder Pressure Spring No.1)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝２．１５ |
23631-17024 |
— | ||
|
23631A
|
23631A
23631-17025
Washer(For Nozzle Holder Pressure Spring No.1)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．５２５ |
23631-17025 |
— | ||
|
23631A
|
23631A
23631-17026
Washer(For Nozzle Holder Pressure Spring No.1)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．６２５ |
23631-17026 |
— | ||
|
23631A
|
23631A
23631-17027
Washer(For Nozzle Holder Pressure Spring No.1)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．６７５ |
23631-17027 |
— | ||
|
23631A
|
23631A
23631-17028
Washer(For Nozzle Holder Pressure Spring No.1)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．７７５ |
23631-17028 |
— | ||
|
23631A
|
23631A
23631-17070
Washer(For Nozzle Holder Pressure Spring No.1)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．９ |
23631-17070 |
— | ||
|
23631A
|
23631A
23631-17071
Washer(For Nozzle Holder Pressure Spring No.1)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝２．０５ |
23631-17071 |
— | ||
|
23631A
|
23631A
23631-17072
Washer(For Nozzle Holder Pressure Spring No.1)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．５７５（外径＝７．３５） |
23631-17072 |
— | ||
|
23631A
|
23631A
23631-17073
Washer(For Nozzle Holder Pressure Spring No.1)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．７２５（外径＝７．３５） |
23631-17073 |
— | ||
|
23631A
|
23631A
23631-58010
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．０００ |
23631-58010 |
— | ||
|
23631A
|
23631A
23631-58011
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．０５０ |
23631-58011 |
— | ||
|
23631A
|
23631A
23631-58012
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．１００ |
23631-58012 |
— | ||
|
23631A
|
23631A
23631-58013
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．１５０ |
23631-58013 |
— | ||
|
23631A
|
23631A
23631-58014
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．２００ |
23631-58014 |
— | ||
|
23631A
|
23631A
23631-58015
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．２５０ |
23631-58015 |
— | ||
|
23631A
|
23631A
23631-58016
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．３００ |
23631-58016 |
— | ||
|
23631A
|
23631A
23631-58017
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．３５０ |
23631-58017 |
— | ||
|
23631A
|
23631A
23631-58018
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．４００ |
23631-58018 |
— | ||
|
23631A
|
23631A
23631-58019
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．４５０ |
23631-58019 |
— | ||
|
23631A
|
23631A
23632-58010
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．５００ |
23632-58010 |
— | ||
|
23631A
|
23631A
23632-58011
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．５５０ |
23632-58011 |
— | ||
|
23631A
|
23631A
23632-58012
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．６００ |
23632-58012 |
— | ||
|
23631A
|
23631A
23632-58013
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．６５０ |
23632-58013 |
— | ||
|
23631A
|
23631A
23632-58014
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．７００ |
23632-58014 |
— | ||
|
23631A
|
23631A
23632-58015
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．７５０ |
23632-58015 |
— | ||
|
23631A
|
23631A
23632-58016
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．８００ |
23632-58016 |
— | ||
|
23631A
|
23631A
23632-58017
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．２７５ |
23632-58017 |
— | ||
|
23631A
|
23631A
23632-58018
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．３２５ |
23632-58018 |
— | ||
|
23631A
|
23631A
23632-58019
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．３７５ |
23632-58019 |
— | ||
|
23631A
|
23631A
23633-58010
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．４２５ |
23633-58010 |
— | ||
|
23631A
|
23631A
23633-58011
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．４７５ |
23633-58011 |
— | ||
|
23631A
|
23631A
23633-58012
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．９５０ |
23633-58012 |
— | ||
|
23631A
|
23631A
23633-58013
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．７００ |
23633-58013 |
— | ||
|
23631A
|
23631A
23633-58014
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．７５０ |
23633-58014 |
— | ||
|
23631A
|
23631A
23633-58015
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．８００ |
23633-58015 |
— | ||
|
23631A
|
23631A
23633-58016
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．８５０ |
23633-58016 |
— | ||
|
23631A
|
23631A
23633-58017
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．９００ |
23633-58017 |
— | ||
|
23631A
|
23631A
23633-58018
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝０．９７５ |
23633-58018 |
— | ||
|
23631A
|
23631A
23633-58019
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．０２５ |
23633-58019 |
— | ||
|
23631A
|
23631A
23634-58010
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．０７５ |
23634-58010 |
— | ||
|
23631A
|
23631A
23634-58011
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．１２５ |
23634-58011 |
— | ||
|
23631A
|
23631A
23634-58012
Washer(For Nozzle Holder Pressure Spring)
[01.1998 - 08.2002] 1HDFTE..HDJ101 厚さ＝１．１７５ |
23634-58012 |
— | ||
|
23659
|
23659
23659-17080
Packing, Tip(For Nozzle)
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23659-17080 |
— | ||
|
23695
|
23695
23695-17020 Clamp, Nozzle Holder, No.1[01.1998 - 03.2001] 1HDFTE..HDJ101 |
23695-17020 |
US $15.87 |
||
| replacement | |||||
|
23695
|
23695
23695-17030 Clamp, Nozzle Holder, No.1[01.1998 - 03.2001] 1HDFTE..HDJ101 |
23695-17030 |
US $15.20 |
||
|
23695
|
23695
23695-17030 Clamp, Nozzle Holder, No.1[03.2001 - 08.2002] 1HDFTE..HDJ101 |
23695-17030 |
US $15.20 |
||
|
23760
|
23760
23761-17030
Pipe Assy, Nozzle Leakage
[01.1998 - 05.1999] 1HDFTE..HDJ101 |
23761-17030 |
— | ||
| replacement | |||||
|
23760
|
23760
23761-17031 Pipe Assy, Nozzle Leakage[01.1998 - 05.1999] 1HDFTE..HDJ101 |
23761-17031 |
from US $69.86 |
||
|
23760
|
23760
23761-17031 Pipe Assy, Nozzle Leakage[05.1999 - 08.2002] 1HDFTE..HDJ101 |
23761-17031 |
from US $69.86 |
||
|
23770B
|
23770B
95333-04010 Hose, Fuel(For Lpg Regulator)[01.1998 - 08.2002] 1HDFTE..HDJ101 ＊Ｈ，Ｌ＝８０ |
95333-04010 |
US $2.51 |
||
|
23770C
|
23770C
90467-10049
Clamp Or Clip(For Fuel Hose Set)
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90467-10049 |
— | ||
| replacement | |||||
|
23770C
|
23770C
90467-10149 Clip, No.2(For Idle-Up Hose)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90467-10149 |
from US $2.36 |
||
|
23780
|
23780
23763-17020 Pipe, Nozzle Leakage, No.3[01.1998 - 08.2002] 1HDFTE..HDJ101 |
23763-17020 |
US $15.20 |
||
|
91621B0814
|
91621B0814
91621-B0814
Bolt (For Transmission Control Cable Bracket)
|
91621-B0814 |
— | ||
| replacement | |||||
|
91621B0814
|
91621B0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.67 |
||
|
2368117010
|
2368117010
23681-17010 Seal, Nozzle Holder |
23681-17010 |
from US $6 |
||
|
9009908099
|
9009908099
90099-08099 New Genuine Part |
90099-08099 |
US $2.04 |
||
|
9010508338
|
9010508338
90105-08338 BOLT WASHER BASED |
90105-08338 |
from US $1.46 |
||
|
9017910216
|
9017910216
90179-10216
Nut
|
90179-10216 |
— | ||
|
9020910021
|
9020910021
90209-10021 WASHER |
90209-10021 |
from US $0.70 |
||
|
9043013002
|
9043013002
90430-13002 Gasket(For Drain Cock) |
90430-13002 |
from US $0.95 |
||
|
9672124015
|
9672124015
96721-24015 Ring, O(For Oil Strainer) |
96721-24015 |
from US $2.17 |
||
