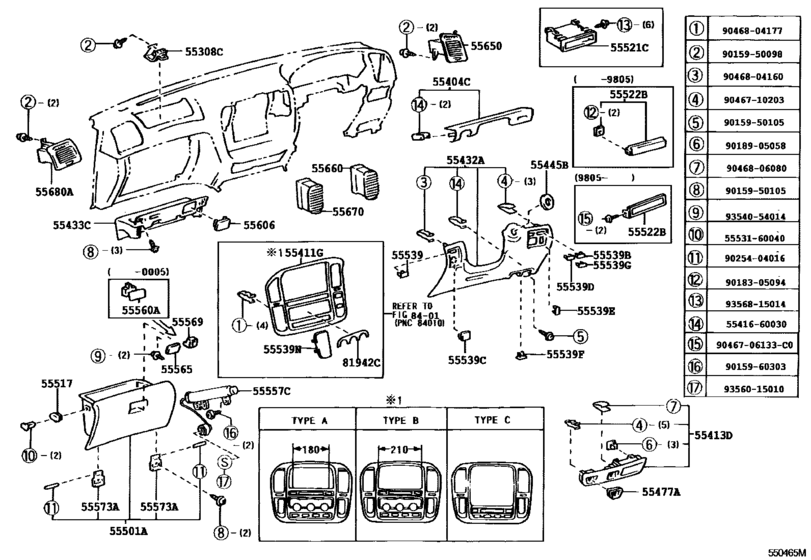

Instrument Panel & Glove Compartment ([01.1998 - 08.2002] (9801-0208)VX,VXL) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55308C
|
55308C
55308-60050
Bracket Sub-Assy, Instrument Panel, Center
[01.1998 - 08.2002] HDJ101,UZJ100 |
55308-60050 |
— | ||
|
55404C
|
55404C
55404-60110-C0 Panel Sub-Assy, Instrument Cluster Finish, No.2[01.1998 - 07.1999] HDJ101,UZJ100..VX ｱﾘ(TEMS & ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ),BLACK,TRIM1#,4# |
55404-60110-C0 |
US $44.84 |
||
|
55404C
|
55404C
55404-60140-C0 Panel Sub-Assy, Instrument Cluster Finish, No.2[01.1998 - 05.2000] HDJ101,UZJ100..VX,VXL BLACK,TRIM1#,4# |
55404-60140-C0 |
US $44.55 |
||
|
55411G
|
55411G
84013-60020
Panel, Instrument Cluster Finish, No.1
[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
84013-60020 |
— | ||
|
55413D
|
55413D
55413-60070-B0
Panel, Instrument Cluster Finish, Center Lower (GRAY)
[01.1998 - 08.2002] HDJ101..MTM SHADOW GRAY,TRIM1# |
55413-60070-B0 |
— | ||
|
55413D
|
55413D
55413-60070-E0
Panel, Instrument Cluster Finish, Center Lower
[01.1998 - 08.2002] HDJ101..MTM OAK,TRIM4# |
55413-60070-E0 |
— | ||
| replacement | |||||
|
55413D
|
55413D
55413-60070-B0
Panel, Instrument Cluster Finish, Center Lower (GRAY)
[01.1998 - 08.2002] HDJ101..MTM OAK,TRIM4# |
55413-60070-B0 |
— | ||
|
55432A
|
55432A
55302-60010-A0 Panel, Instrument Panel Finish, Lower Rh[01.1998 - 08.2002] HDJ101,UZJ100..VXL IVORY,TRIM40,41; HDJ101,UZJ100..CYG,VX IVORY,TRIM4# |
55302-60010-A0 |
US $171.81 |
||
| replacement | |||||
|
55432A
|
55432A
55302-60011-B1 Panel, Instrument Panel Finish, Lower Rh[01.1998 - 08.2002] HDJ101,UZJ100..VXL IVORY,TRIM40,41; HDJ101,UZJ100..CYG,VX IVORY,TRIM4# |
55302-60011-B1 |
US $183.46 |
||
|
55432A
|
55432A
55302-60010-B0 Panel, Instrument Panel Finish, Lower Rh[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL MD.GRAY,TRIM1# |
55302-60010-B0 |
US $171.81 |
||
| replacement | |||||
|
55432A
|
55432A
55302-60011-B1 Panel, Instrument Panel Finish, Lower Rh[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL MD.GRAY,TRIM1# |
55302-60011-B1 |
US $183.46 |
||
|
55433C
|
55433C
55433-60040
Panel, Instrument Panel Finish, Lower Lh
[01.1998 - 08.2002] HDJ101,UZJ100 |
55433-60040 |
— | ||
|
55445B
|
55445B
55445-33040-A0
Plate, Instrument Panel Finish
[01.1998 - 08.2002] HDJ101,UZJ100..VXL IVORY,TRIM40,41; HDJ101,UZJ100..CYG,VX IVORY,TRIM4# |
55445-33040-A0 |
— | ||
| replacement | |||||
|
55445B
|
55445B
55445-30220-C0 Plate, Instrument Panel Finish (Black)[01.1998 - 08.2002] HDJ101,UZJ100..VXL IVORY,TRIM40,41; HDJ101,UZJ100..CYG,VX IVORY,TRIM4# |
55445-30220-C0 |
US $4.19 |
||
|
55445B
|
55445B
55445-33040-B0
Plate, Instrument Panel Finish
[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL MD.GRAY,TRIM1# |
55445-33040-B0 |
— | ||
| replacement | |||||
|
55445B
|
55445B
55445-30220-C0 Plate, Instrument Panel Finish (Black)[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL MD.GRAY,TRIM1# |
55445-30220-C0 |
US $4.19 |
||
|
55477A
|
55477A
55477-60040 Bezel, Cigarette Lighter Hole[01.1998 - 08.2002] HDJ101..MTM |
55477-60040 |
US $10.63 |
||
|
55501A
|
55501A
55501-60140-A0
Door Sub-Assy, Glove Compartment
[01.1998 - 04.2000] HDJ101,UZJ100 IVORY,TRIM4# |
55501-60140-A0 |
— | ||
| replacement | |||||
|
55501A
|
55501A
55501-60141-A1 Door Sub-Assy, Glove Compartment[01.1998 - 04.2000] HDJ101,UZJ100 IVORY,TRIM4# |
55501-60141-A1 |
from US $132.53 |
||
|
55501A
|
55501A
55501-60140-B1 Door Sub-Assy, Glove Compartment[01.1998 - 04.2000] HDJ101,UZJ100..VX,VXL MD.GRAY,TRIM1# |
55501-60140-B1 |
US $182 |
||
| replacement | |||||
|
55501A
|
55501A
55501-60141-B2 Door Sub-Assy, Glove Compartment[01.1998 - 04.2000] HDJ101,UZJ100..VX,VXL MD.GRAY,TRIM1# |
55501-60141-B2 |
US $190.44 |
||
|
55501A
|
55501A
55501-60141-A0
Door Sub-Assy, Glove Compartment
[04.2000 - 08.2002] HDJ101,UZJ100..VXL IVORY,TRIM40,41; HDJ101,UZJ100..CYG,VX IVORY,TRIM4# |
55501-60141-A0 |
— | ||
| replacement | |||||
|
55501A
|
55501A
55501-60141-A1 Door Sub-Assy, Glove Compartment[04.2000 - 08.2002] HDJ101,UZJ100..VXL IVORY,TRIM40,41; HDJ101,UZJ100..CYG,VX IVORY,TRIM4# |
55501-60141-A1 |
from US $132.53 |
||
|
55501A
|
55501A
55501-60141-B1
Door Sub-Assy, Glove Compartment
[04.2000 - 08.2002] HDJ101,UZJ100..VX,VXL MD.GRAY,TRIM1# |
55501-60141-B1 |
— | ||
| replacement | |||||
|
55501A
|
55501A
55501-60141-B2 Door Sub-Assy, Glove Compartment[04.2000 - 08.2002] HDJ101,UZJ100..VX,VXL MD.GRAY,TRIM1# |
55501-60141-B2 |
US $190.44 |
||
|
55517
|
55517
55517-60030
Stopper, Glove Compartment Door Arm
[01.1998 - 05.1999] HDJ101,UZJ100 |
55517-60030 |
— | ||
|
55521C
|
55521C
55521-44020 Cover, Stereo Opening[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
55521-44020 |
from US $23.86 |
||
|
55522B
|
55522B
55522-32010
Cover, Radio Tuner Opening
[01.1998 - 05.1998] HDJ101,UZJ100 |
55522-32010 |
— | ||
| replacement | |||||
|
55522B
|
55522B
55522-20070 Cover, Radio Tuner Opening[01.1998 - 05.1998] HDJ101,UZJ100 |
55522-20070 |
US $28.39 |
||
|
55522B
|
55522B
55522-60020 Cover, Radio Tuner Opening[05.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
55522-60020 |
US $22.71 |
||
|
55539
|
55539
55539-60020-C0 Cover, Spare Switch Hole[01.1998 - 08.2002] HDJ101,UZJ100..VXL BLACK,TRIM1#,40,41; HDJ101,UZJ100..VX BLACK,TRIM1#,4# |
55539-60020-C0 |
from US $3.29 |
||
|
55539C
|
55539C
55548-60040-C0 Cover, Spare Switch Hole[01.1998 - 08.2002] HDJ101,UZJ100..VXL BLACK,TRIM1#,40,41; HDJ101,UZJ100..VX BLACK,TRIM1#,4# |
55548-60040-C0 |
from US $4.01 |
||
|
55539D
|
55539D
55539-60020-C0 Cover, Spare Switch Hole[01.1998 - 08.2002] HDJ101,UZJ100..VXL BLACK,TRIM1#,40,41; HDJ101,UZJ100..VX BLACK,TRIM1#,4# |
55539-60020-C0 |
from US $3.29 |
||
|
55539E
|
55539E
55539-60020-C0 Cover, Spare Switch Hole[01.1998 - 08.2002] HDJ101,UZJ100..VXL BLACK,TRIM1#,40,41; HDJ101,UZJ100..VX BLACK,TRIM1#,4# |
55539-60020-C0 |
from US $3.29 |
||
|
55539F
|
55539F
55539-60020-C0 Cover, Spare Switch Hole[01.1998 - 08.2002] HDJ101,UZJ100..VXL BLACK,TRIM1#,40,41; HDJ101,UZJ100..VX BLACK,TRIM1#,4# |
55539-60020-C0 |
from US $3.29 |
||
|
55539G
|
55539G
55539-60020-C0 Cover, Spare Switch Hole[01.1998 - 08.2002] HDJ101,UZJ100..VX BLACK,TRIM1#,4# |
55539-60020-C0 |
from US $3.29 |
||
|
55539N
|
55539N
55539-60040
Cover, Spare Switch Hole
[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
55539-60040 |
— | ||
|
55557C
|
55557C
55557-60010 Damper, Glove Compartment Door[05.2000 - 08.2002] HDJ101,UZJ100 |
55557-60010 |
US $25.68 |
||
|
55560A
|
55560A
55560-60010-A0 Lock Assy, Glove Compartment Door[01.1998 - 05.2000] HDJ101,UZJ100..VX,VXL IVORY,TRIM4# |
55560-60010-A0 |
US $18.05 |
||
| replacement | |||||
|
55560A
|
55560A
55560-60010-C0 Lock Assy, Glove Compartment Door[01.1998 - 05.2000] HDJ101,UZJ100..VX,VXL IVORY,TRIM4# |
55560-60010-C0 |
US $18.05 |
||
|
55560A
|
55560A
55560-60010-B0 Lock Assy, Glove Compartment Door[01.1998 - 05.2000] HDJ101,UZJ100..VX,VXL MD.GRAY,TRIM1# |
55560-60010-B0 |
US $18.05 |
||
| replacement | |||||
|
55560A
|
55560A
55560-60010-C0 Lock Assy, Glove Compartment Door[01.1998 - 05.2000] HDJ101,UZJ100..VX,VXL MD.GRAY,TRIM1# |
55560-60010-C0 |
US $18.05 |
||
|
55565
|
55565
55565-60010-A0 Handle, Glove Compartment Door Lock[05.2000 - 08.2002] HDJ101,UZJ100..VXL IVORY,TRIM40,41; HDJ101,UZJ100..CYG,VX IVORY,TRIM4# |
55565-60010-A0 |
US $4.22 |
||
| replacement | |||||
|
55565
|
55565
55565-60010-B2 Handle, Glove Compartment Door Lock[05.2000 - 08.2002] HDJ101,UZJ100..VXL IVORY,TRIM40,41; HDJ101,UZJ100..CYG,VX IVORY,TRIM4# |
55565-60010-B2 |
US $4.02 |
||
|
55565
|
55565
55565-60010-B1
Handle, Glove Compartment Door Lock
[08.2000 - 08.2002] HDJ101,UZJ100..VX,VXL MD.GRAY,TRIM1# |
55565-60010-B1 |
— | ||
| replacement | |||||
|
55565
|
55565
55565-60010-B2 Handle, Glove Compartment Door Lock[08.2000 - 08.2002] HDJ101,UZJ100..VX,VXL MD.GRAY,TRIM1# |
55565-60010-B2 |
US $4.02 |
||
|
55569
|
55569
55569-60020-A0
Cover, Glove Compartment Door Lock
[05.2000 - 08.2002] HDJ101,UZJ100..VXL IVORY,TRIM40,41; HDJ101,UZJ100..CYG,VX IVORY,TRIM4# |
55569-60020-A0 |
— | ||
| replacement | |||||
|
55569
|
55569
55569-60020-B2 Cover, Glove Compartment Door Lock[05.2000 - 08.2002] HDJ101,UZJ100..VXL IVORY,TRIM40,41; HDJ101,UZJ100..CYG,VX IVORY,TRIM4# |
55569-60020-B2 |
from US $5.42 |
||
|
55569
|
55569
55569-60020-B1
Cover, Glove Compartment Door Lock
[05.2000 - 08.2002] HDJ101,UZJ100..VX,VXL MD.GRAY,TRIM1# |
55569-60020-B1 |
— | ||
| replacement | |||||
|
55569
|
55569
55569-60020-B2 Cover, Glove Compartment Door Lock[05.2000 - 08.2002] HDJ101,UZJ100..VX,VXL MD.GRAY,TRIM1# |
55569-60020-B2 |
from US $5.42 |
||
|
55573A
|
55573A
55573-32010 Hinge Sub-Assy, Glove Compartment Door[01.1998 - 08.2002] HDJ101,UZJ100 |
55573-32010 |
US $5.07 |
||
|
55606
|
55606
55606-60010 Cover Sub-Assy, Instrument Panel Under, No.1[01.1998 - 08.2002] HDJ101,UZJ100 |
55606-60010 |
US $11.88 |
||
|
55650
|
55650
55650-60080-B0
Register Assy, Instrument Panel, No.1
[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL SHADOW GRAY,TRIM1# |
55650-60080-B0 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-60130-B0
Register Assy, Instrument Panel, No.1
[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL SHADOW GRAY,TRIM1# |
55650-60130-B0 |
— | ||
|
55650
|
55650
55650-60080-E0
Register Assy, Instrument Panel, No.1
[01.1998 - 08.2002] HDJ101,UZJ100..VXL OAK,TRIM40,41; HDJ101,UZJ100..CYG,VX OAK,TRIM4# |
55650-60080-E0 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-60130-E0 Register Assy, Instrument Panel, No.1[01.1998 - 08.2002] HDJ101,UZJ100..VXL OAK,TRIM40,41; HDJ101,UZJ100..CYG,VX OAK,TRIM4# |
55650-60130-E0 |
US $90.85 |
||
|
55660
|
55660
55660-60130
Register Assy, Instrument Panel, No.2
[01.1998 - 08.2002] HDJ101,UZJ100 |
55660-60130 |
— | ||
|
55670
|
55670
55670-60070 Register Assy, Instrument Panel, No.3[01.1998 - 08.2002] HDJ101,UZJ100 |
55670-60070 |
from US $67.37 |
||
|
55680A
|
55680A
55680-60010-B0
Register Assy, Instrument Panel, No.4
[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL SHADOW GRAY,TRIM1# |
55680-60010-B0 |
— | ||
|
55680A
|
55680A
55680-60010-E0
Register Assy, Instrument Panel, No.4
[01.1998 - 08.2002] HDJ101,UZJ100..VXL OAK,TRIM40,41; HDJ101,UZJ100..CYG,VX OAK,TRIM4# |
55680-60010-E0 |
— | ||
| replacement | |||||
|
55680A
|
55680A
55680-60010-B0
Register Assy, Instrument Panel, No.4
[01.1998 - 08.2002] HDJ101,UZJ100..VXL OAK,TRIM40,41; HDJ101,UZJ100..CYG,VX OAK,TRIM4# |
55680-60010-B0 |
— | ||
|
81942C
|
81942C
81942-60080
Sheet, Heater Control Name
[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
81942-60080 |
— | ||
|
5541660030
|
5541660030
55416-60030 Retainer, Instrument Cluster Finish Panel |
55416-60030 |
from US $1.06 |
||
|
5553160040
|
5553160040
55531-60040 Panel, Glove Compartment |
55531-60040 |
US $4.37 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9015950105
|
9015950105
90159-50105 SCREW |
90159-50105 |
from US $0.67 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.91 |
||
|
9018905058
|
9018905058
90189-05058 GROMMET |
90189-05058 |
US $1.43 |
||
|
9025404016
|
9025404016
90254-04016 Shaft, Glove Compartment Door Hinge |
90254-04016 |
US $1.40 |
||
|
9046706133C0
|
9046706133C0
90467-06133-C0 Clip, Step Plate Cover |
90467-06133-C0 |
from US $1.43 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046804160
|
9046804160
90468-04160 Clip, Instrument Panel, No.2 |
90468-04160 |
from US $0.96 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.68 |
||
|
9046806080
|
9046806080
90468-06080 CLIP |
90468-06080 |
US $2.77 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $0.95 |
||
|
9356015010
|
9356015010
93560-15010 New Genuine Part |
93560-15010 |
US $1.43 |
||
|
9356815014
|
9356815014
93568-15014
Direct
|
93568-15014 |
— | ||
| replacement | |||||
|
9356815014
|
9356815014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
