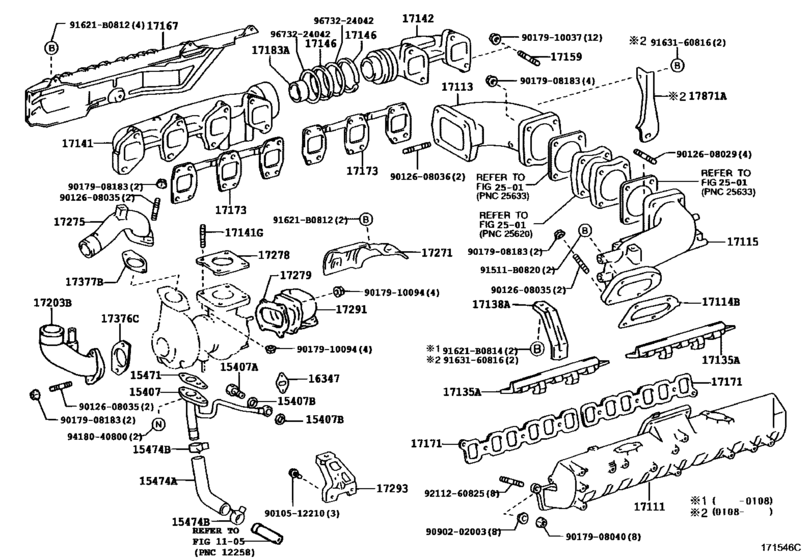

Manifold ([01.1998 - 08.2002] (9801-0208)1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15407
|
15407
15407-17020 Pipe Sub-Assy, Turbo Oil Inlet[01.1998 - 08.2002] 1HDFTE..HDJ101 |
15407-17020 |
from US $23.03 |
||
|
15407A
|
15407A
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90401-12097 |
from US $2.87 |
||
|
15407B
|
15407B
90430-12221 Gasket[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90430-12221 |
from US $1.05 |
||
|
15471
|
15471
15471-58010 Gasket, Turbo Oil Inlet[01.1998 - 08.2002] 1HDFTE..HDJ101 |
15471-58010 |
from US $2.34 |
||
|
15474A
|
15474A
90910-05206 Hose, Turbo Oil Outlet[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90910-05206 |
from US $5.36 |
||
|
15474B
|
15474B
90467-26001
Clip Or Clamp(For Ventilation Hose)
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90467-26001 |
— | ||
| replacement | |||||
|
15474B
|
15474B
96134-52600 Clip Or Clamp(For Ventilation Hose)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
96134-52600 |
from US $2.79 |
||
|
16347
|
16347
16347-42020 Gasket, Water By-Pass[01.1998 - 08.2002] 1HDFTE..HDJ101 |
16347-42020 |
from US $2.64 |
||
|
17111
|
17111
17111-17030
Manifold, Intake
[01.1998 - 04.2001] 1HDFTE..HDJ101 |
17111-17030 |
— | ||
| replacement | |||||
|
17111
|
17111
17111-17031 Manifold, Intake[01.1998 - 04.2001] 1HDFTE..HDJ101 |
17111-17031 |
US $503.19 |
||
|
17111
|
17111
17111-17031 Manifold, Intake[04.2001 - 08.2002] 1HDFTE..HDJ101 |
17111-17031 |
US $503.19 |
||
|
17113
|
17113
17113-17060 Pipe, Intake[01.1998 - 08.2001] 1HDFTE..HDJ101 |
17113-17060 |
US $273.73 |
||
| replacements | |||||
|
17113
|
17113
17113-17100 Pipe, Intake[01.1998 - 08.2001] 1HDFTE..HDJ101 |
17113-17100 |
US $265.57 |
||
|
17113
|
17113
17138-17050
Stay, Intake Pipe
[01.1998 - 08.2001] 1HDFTE..HDJ101 |
17138-17050 |
— | ||
|
17113
|
17113
17113-17100 Pipe, Intake[08.2001 - 08.2002] 1HDFTE..HDJ101 |
17113-17100 |
US $265.57 |
||
|
17114B
|
17114B
17116-17010
Gasket, Intake Flange
[01.1998 - 08.2001] 1HDFTE..HDJ101 |
17116-17010 |
— | ||
| replacement | |||||
|
17114B
|
17114B
17116-17020 Gasket, Intake Flange[01.1998 - 08.2001] 1HDFTE..HDJ101 |
17116-17020 |
from US $6.42 |
||
|
17114B
|
17114B
17116-17020 Gasket, Intake Flange[08.2001 - 08.2002] 1HDFTE..HDJ101 |
17116-17020 |
from US $6.42 |
||
|
17115
|
17115
17115-17020 Gasket, Intake Manifold Hole Cover[01.1998 - 08.2001] 1HDFTE..HDJ101 |
17115-17020 |
US $256.26 |
||
| replacement | |||||
|
17115
|
17115
17115-17021 Gasket, Intake Manifold Hole Cover[01.1998 - 08.2001] 1HDFTE..HDJ101 |
17115-17021 |
US $263.83 |
||
|
17115
|
17115
17115-17021 Gasket, Intake Manifold Hole Cover[08.2001 - 08.2002] 1HDFTE..HDJ101 |
17115-17021 |
US $263.83 |
||
|
17135A
|
17135A
17135-17010 Insulator, Intake Manifold, No.1[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17135-17010 |
US $44.35 |
||
|
17138A
|
17138A
17138-17020
Stay, Intake Pipe
[01.1998 - 08.2001] 1HDFTE..HDJ101 |
17138-17020 |
— | ||
|
17138A
|
17138A
17138-17050
Stay, Intake Pipe
[08.2001 - 08.2002] 1HDFTE..HDJ101 |
17138-17050 |
— | ||
|
17141
|
17141
17141-17030
Manifold, Exhaust
[01.1998 - 04.1999] 1HDFTE..HDJ101 |
17141-17030 |
— | ||
| replacement | |||||
|
17141
|
17141
17141-17031 Manifold, Exhaust[01.1998 - 04.1999] 1HDFTE..HDJ101 |
17141-17031 |
from US $283.88 |
||
|
17141
|
17141
17141-17031 Manifold, Exhaust[04.1999 - 08.2002] 1HDFTE..HDJ101 |
17141-17031 |
from US $283.88 |
||
|
17141G
|
17141G
90116-10117 Bolt, Stud(For Turbine Housing)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90116-10117 |
from US $1.43 |
||
|
17142
|
17142
17142-17030
Case, Exhaust Manifold, No.2
[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17142-17030 |
— | ||
|
17146
|
17146
17151-17010 Ring, Exhaust Manifold[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17151-17010 |
from US $7.20 |
||
|
17159
|
17159
90116-10171 Bolt, Stud(For Manifold To Cylinder Head)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90116-10171 |
from US $1.10 |
||
|
17167
|
17167
17167-17060
Insulator, Exhaust Manifold Heat, No.1
[01.1998 - 08.2001] 1HDFTE..HDJ101 |
17167-17060 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-17062 Insulator, Exhaust Manifold Heat, No.1[01.1998 - 08.2001] 1HDFTE..HDJ101 |
17167-17062 |
US $115.32 |
||
|
17167
|
17167
17167-17061 Insulator, Exhaust Manifold Heat, No.1[08.2001 - 05.2002] 1HDFTE..HDJ101 |
17167-17061 |
US $109.20 |
||
| replacement | |||||
|
17167
|
17167
17167-17062 Insulator, Exhaust Manifold Heat, No.1[08.2001 - 05.2002] 1HDFTE..HDJ101 |
17167-17062 |
US $115.32 |
||
|
17167
|
17167
17167-17062 Insulator, Exhaust Manifold Heat, No.1[05.2002 - 08.2002] 1HDFTE..HDJ101 |
17167-17062 |
US $115.32 |
||
|
17171
|
17171
17171-17030 Gasket, Intake To Exhaust Manifold[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17171-17030 |
from US $12.62 |
||
|
17173
|
17173
17173-17020 Gasket, Exhaust Manifold To Head[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17173-17020 |
from US $22.40 |
||
|
17183A
|
17183A
17183-17010 Collar, Manifold[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17183-17010 |
from US $3.72 |
||
|
17203B
|
17203B
17203-17010 Elbow Sub-Assy, Compressor Inlet[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17203-17010 |
US $145.52 |
||
|
17271
|
17271
17271-17010 Insulator, Turbo, No.1[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17271-17010 |
from US $21.26 |
||
|
17275
|
17275
17275-17010
Elbow, Compressor Outlet
[01.1998 - 03.2002] 1HDFTE..HDJ101 |
17275-17010 |
— | ||
| replacement | |||||
|
17275
|
17275
17275-17011
Elbow, Compressor Outlet
[01.1998 - 03.2002] 1HDFTE..HDJ101 |
17275-17011 |
— | ||
|
17275
|
17275
17275-17011
Elbow, Compressor Outlet
[03.2002 - 08.2002] 1HDFTE..HDJ101 |
17275-17011 |
— | ||
|
17278
|
17278
17278-17010 Gasket, Turbo To Exhaust Manifold[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17278-17010 |
from US $22.40 |
||
|
17279
|
17279
17279-17020 Gasket, Turbine Outlet Elbow[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17279-17020 |
from US $11.63 |
||
|
17291
|
17291
17291-17030 Elbow, Turbine Outlet[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17291-17030 |
US $190.44 |
||
|
17293
|
17293
17293-17020 Stay, Turbocharger[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17293-17020 |
from US $32.07 |
||
|
17376C
|
17376C
17376-17010 Gasket, Air Tube[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17376-17010 |
from US $1.94 |
||
|
17377B
|
17377B
17377-88410 Gasket, Air Tube, No.2[01.1998 - 08.2002] 1HDFTE..HDJ101 |
17377-88410 |
from US $6.42 |
||
|
17871A
|
17871A
17871-17020
Stay, Air Connector
[08.2001 - 08.2002] 1HDFTE..HDJ101 |
17871-17020 |
— | ||
|
91511B0820
|
91511B0820
91511-B0820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-B0820 |
— | ||
| replacement | |||||
|
91511B0820
|
91511B0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
91621B0812
|
91621B0812
91621-B0812
New Genuine Part
|
91621-B0812 |
— | ||
| replacement | |||||
|
91621B0812
|
91621B0812
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
91621B0814
|
91621B0814
91621-B0814
Bolt (For Transmission Control Cable Bracket)
|
91621-B0814 |
— | ||
| replacement | |||||
|
91621B0814
|
91621B0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.67 |
||
|
9010512210
|
9010512210
90105-12210 BOLT WASHER BASED |
90105-12210 |
from US $1.62 |
||
|
9012608029
|
9012608029
90126-08029 STUD HEX LOBULAR |
90126-08029 |
US $12.19 |
||
|
9012608035
|
9012608035
90126-08035 STUD, HEX LOBULAR |
90126-08035 |
from US $2.41 |
||
|
9012608036
|
9012608036
90126-08036 New Genuine Part |
90126-08036 |
US $5.97 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9017908183
|
9017908183
90179-08183 NUT |
90179-08183 |
from US $1.05 |
||
|
9017910037
|
9017910037
90179-10037 NUT |
90179-10037 |
from US $2.24 |
||
| replacement | |||||
|
9017910037
|
9017910037
90179-10128 NUT |
90179-10128 |
from US $1.43 |
||
|
9017910094
|
9017910094
90179-10094 NUT |
90179-10094 |
from US $2.39 |
||
|
9090202003
|
9090202003
90902-02003 WASHER PLATE |
90902-02003 |
from US $3.23 |
||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
from US $1.05 |
||
|
9211260825
|
9211260825
92112-60825 Bolt, Stud(For Oil Filter) |
92112-60825 |
US $2.87 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.52 |
||
|
9673224042
|
9673224042
96732-24042 GASKET |
96732-24042 |
from US $2.17 |
||
