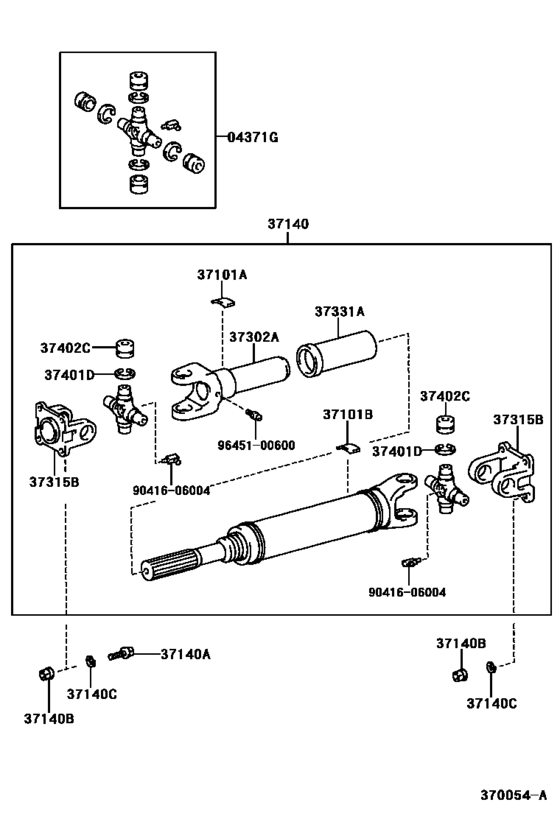

Propeller Shaft & Universal Joint ([01.1998 - 08.2002] ﾌﾛﾝﾄ (9801-0208)MTM) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04371G
|
04371G
04371-35060
Spider Kit, Universal Joint(For Propeller Shaft)
[12.1999 - 08.2000] HDJ101..MTM |
04371-35060 |
— | ||
| replacement | |||||
|
04371G
|
04371G
04371-60060 Spider Kit, Rear Propeller Shaft Universal Joint[12.1999 - 08.2000] HDJ101..MTM |
04371-60060 |
from US $59.41 |
||
|
04371G
|
04371G
04371-35061
Spider Kit, Propeller Shaft Universal Joint
[08.2000 - 08.2002] HDJ101..MTM |
04371-35061 |
— | ||
| replacement | |||||
|
04371G
|
04371G
04371-60060 Spider Kit, Rear Propeller Shaft Universal Joint[08.2000 - 08.2002] HDJ101..MTM |
04371-60060 |
from US $59.41 |
||
|
04371G
|
04371G
04371-60040 Spider Kit, Front Propeller Shaft Universal Joint[01.1998 - 12.1999] HDJ101..MTM |
04371-60040 |
US $54.16 |
||
| replacement | |||||
|
04371G
|
04371G
04371-60060 Spider Kit, Rear Propeller Shaft Universal Joint[01.1998 - 12.1999] HDJ101..MTM |
04371-60060 |
from US $59.41 |
||
|
04371G
|
04371G
04371-60041
Spider Kit, Front Propeller Shaft Universal Joint
[08.2000 - 08.2002] HDJ101..MTM レッド ペイント |
04371-60041 |
— | ||
| replacement | |||||
|
04371G
|
04371G
04371-60060 Spider Kit, Rear Propeller Shaft Universal Joint[08.2000 - 08.2002] HDJ101..MTM レッド ペイント |
04371-60060 |
from US $59.41 |
||
|
37101A
|
37101A
90937-01184 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ４Ｇ，厚さ＝１．６ |
90937-01184 |
US $1.31 |
||
|
37101A
|
37101A
90937-01191 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ８Ｇ，厚さ＝１．６ |
90937-01191 |
US $2.18 |
||
|
37101A
|
37101A
90937-01192 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 １２Ｇ，厚さ＝４．５ |
90937-01192 |
US $2.77 |
||
|
37101A
|
37101A
90937-01193 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 １６Ｇ，厚さ＝４．５ |
90937-01193 |
US $2.91 |
||
|
37101A
|
37101A
90937-01194 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ２０Ｇ，厚さ＝４．５ |
90937-01194 |
US $3.06 |
||
|
37101A
|
37101A
90937-01198 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ２４Ｇ，厚さ＝４．５，長さ＝２５．１ |
90937-01198 |
US $3.06 |
||
|
37101A
|
37101A
90937-01199 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ２８Ｇ，厚さ＝６，長さ＝２２．７ |
90937-01199 |
US $4.12 |
||
|
37101A
|
37101A
90937-01200 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ３２Ｇ，厚さ＝６，長さ＝２４．３ |
90937-01200 |
US $4.95 |
||
|
37101A
|
37101A
90937-01268 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ３６Ｇ，長さ＝２３．１，厚さ＝８．０ |
90937-01268 |
US $4.37 |
||
|
37101A
|
37101A
90937-01269 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ４０Ｇ，長さ＝２５．６ |
90937-01269 |
US $4.37 |
||
|
37101A
|
37101A
90937-01270 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ４４Ｇ，長さ＝２２．６ |
90937-01270 |
US $4.37 |
||
|
37101A
|
37101A
90937-01271 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ４８Ｇ，長さ＝２４．６ |
90937-01271 |
US $4.37 |
||
|
37101A
|
37101A
90937-01272 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ５２Ｇ，長さ＝２６．７ |
90937-01272 |
US $4.37 |
||
|
37101A
|
37101A
90937-01273 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ５６Ｇ，長さ＝２８．７ |
90937-01273 |
US $4.37 |
||
|
37101A
|
37101A
90937-01274 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ６０Ｇ，長さ＝２８．７ |
90937-01274 |
US $4.37 |
||
|
37101B
|
37101B
90937-01132 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 １０Ｇ，長さ＝２０．７ |
90937-01132 |
US $3.94 |
||
|
37101B
|
37101B
90937-01136 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ２０Ｇ，長さ＝４１．４ |
90937-01136 |
US $3.20 |
||
|
37101B
|
37101B
90937-01140 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ３０Ｇ，長さ＝６２．２ |
90937-01140 |
US $3.49 |
||
|
37101B
|
37101B
90937-01147 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ２Ｇ，厚さ＝２．０ |
90937-01147 |
US $2.04 |
||
|
37101B
|
37101B
90937-01148 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ４Ｇ，厚さ＝２．０ |
90937-01148 |
US $2.51 |
||
|
37101B
|
37101B
90937-01149 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ６Ｇ，長さ＝１２．４ |
90937-01149 |
US $2.51 |
||
|
37101B
|
37101B
90937-01150 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ８Ｇ，長さ＝１６．６ |
90937-01150 |
US $2.51 |
||
|
37101B
|
37101B
90937-01151 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 １２Ｇ，長さ＝２４．９ |
90937-01151 |
US $2.69 |
||
|
37101B
|
37101B
90937-01152 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 １４Ｇ，長さ＝２９．０ |
90937-01152 |
US $2.51 |
||
|
37101B
|
37101B
90937-01153 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 １６Ｇ，長さ＝３３．２ |
90937-01153 |
US $1.31 |
||
|
37101B
|
37101B
90937-01154 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 １８Ｇ，長さ＝３７．３ |
90937-01154 |
US $1.75 |
||
|
37101B
|
37101B
90937-01155 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ２２Ｇ，長さ＝４５．６ |
90937-01155 |
US $1.75 |
||
|
37101B
|
37101B
90937-01156 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ２４Ｇ，長さ＝４９．７ |
90937-01156 |
US $1.75 |
||
|
37101B
|
37101B
90937-01157 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ２６Ｇ，長さ＝５３．９ |
90937-01157 |
US $1.75 |
||
|
37101B
|
37101B
90937-01158 Piece, Balance, No.1 (For Propeller Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 ２８Ｇ，長さ＝５８．１ |
90937-01158 |
US $1.75 |
||
|
37140
|
37140
37140-60420 Shaft Assy, Propeller, Front[01.1998 - 08.2002] HDJ101..MTM |
37140-60420 |
US $808.08 |
||
| replacement | |||||
|
37140
|
37140
37140-60490 Shaft Assy, Propeller, FrontPROPELLER, FRONT [01.1998 - 08.2002] HDJ101..MTM |
37140-60490 |
from US $677.07 |
||
|
37140A
|
37140A
90105-10424 Bolt, No.1 (For Propeller Shaft & Differential Setting)[01.1998 - 08.2002] HDJ101,UZJ100 |
90105-10424 |
from US $0.87 |
||
|
37140B
|
37140B
90178-10006 Nut, No.1 (For Propeller Shaft & Differential Setting)[01.1998 - 08.2002] HDJ101,UZJ100 |
90178-10006 |
from US $0.76 |
||
|
37140C
|
37140C
90560-10101 Washer, No.1 (For Propeller Shaft & Differential Setting)[01.1998 - 08.2002] HDJ101,UZJ100 |
90560-10101 |
from US $1.14 |
||
|
37302A
|
37302A
37302-60080 Yoke Sub-Assy, Propeller Shaft Universal Joint Sleeve[01.1998 - 08.2002] HDJ101..MTM |
37302-60080 |
US $94.35 |
||
|
37315B
|
37315B
37315-35040 Yoke, Universal Joint Flange[01.1998 - 06.2000] HDJ101..MTM |
37315-35040 |
from US $66.19 |
||
|
37315B
|
37315B
37315-35070 Yoke, Universal Joint Flange[06.2000 - 08.2002] HDJ101..MTM |
37315-35070 |
from US $58.79 |
||
|
37331A
|
37331A
37305-60030 Cover Sub-Assy, Front Propeller Shaft Sliding Shaft Dust[01.1998 - 08.2002] HDJ101,UZJ100 |
37305-60030 |
US $22.71 |
||
|
37401D
|
37401D
90520-25039 Ring, Hole Snap (For Spider Bearing)[01.1998 - 08.2002] HDJ101,UZJ100 厚さ＝２．２９，マーク １ |
90520-25039 |
US $1.61 |
||
|
37401D
|
37401D
90520-25040 Ring, Hole Snap (For Spider Bearing)[01.1998 - 08.2002] HDJ101,UZJ100 厚さ＝２．３１，マーク ２ |
90520-25040 |
US $1.16 |
||
|
37401D
|
37401D
90520-25041 Ring, Hole Snap (For Spider Bearing)[01.1998 - 08.2002] HDJ101,UZJ100 厚さ＝２．３３，マーク無 |
90520-25041 |
US $1.10 |
||
|
37401D
|
37401D
90520-25042 Ring, Hole Snap (For Spider Bearing)[01.1998 - 08.2002] HDJ101,UZJ100 厚さ＝２．３５，ブラウン |
90520-25042 |
US $1.61 |
||
|
37401D
|
37401D
90520-25043 Ring, Hole Snap (For Spider Bearing)[01.1998 - 08.2002] HDJ101,UZJ100 厚さ＝２．３７，ブルー |
90520-25043 |
US $1.61 |
||
|
37401D
|
37401D
90520-25044 Ring, Hole Snap (For Spider Bearing)[01.1998 - 08.2002] HDJ101,UZJ100 厚さ＝２．３９，マーク ６ |
90520-25044 |
US $1.16 |
||
|
37401D
|
37401D
90520-25045 Ring, Hole Snap (For Spider Bearing)[01.1998 - 08.2002] HDJ101,UZJ100 厚さ＝２．４１，マーク ７ |
90520-25045 |
US $1.61 |
||
|
37401D
|
37401D
90520-25046 Ring, Hole Snap (For Spider Bearing)[01.1998 - 08.2002] HDJ101,UZJ100 厚さ＝２．４３，マーク ８ |
90520-25046 |
US $1.61 |
||
|
37401D
|
37401D
90520-25047 Ring, Hole Snap (For Spider Bearing)[01.1998 - 08.2002] HDJ101,UZJ100 厚さ＝２．４５，マーク ９ |
90520-25047 |
US $1.61 |
||
|
37401D
|
37401D
90520-25048 Ring, Hole Snap (For Spider Bearing)[01.1998 - 08.2002] HDJ101,UZJ100 厚さ＝２．４７，マーク １０ |
90520-25048 |
US $1.16 |
||
|
37401D
|
37401D
90520-25049 Ring, Hole Snap (For Spider Bearing)[12.1999 - 08.2002] HDJ101,UZJ100 厚さ＝２．４９，マーク Ａ |
90520-25049 |
US $1.16 |
||
|
37401D
|
37401D
90520-25050 Ring, Hole Snap (For Spider Bearing)[12.1999 - 08.2002] HDJ101,UZJ100 厚さ＝２．５１，マーク Ｂ |
90520-25050 |
US $1.61 |
||
|
37401D
|
37401D
90520-25051 Ring, Hole Snap (For Spider Bearing)[12.1999 - 08.2002] HDJ101,UZJ100 厚さ＝２．５３，マーク Ｃ |
90520-25051 |
US $1.16 |
||
|
37401D
|
37401D
90520-25052 Ring, Hole Snap (For Spider Bearing)[12.1999 - 08.2002] HDJ101,UZJ100 厚さ＝２．５５，マーク Ｄ |
90520-25052 |
US $1.61 |
||
|
37401D
|
37401D
90520-25053 Ring, Hole Snap (For Spider Bearing)[12.1999 - 08.2002] HDJ101,UZJ100 厚さ＝２．５７，マーク Ｅ |
90520-25053 |
US $1.61 |
||
|
37401D
|
37401D
90520-25054 Ring, Hole Snap (For Spider Bearing)[06.2000 - 08.2002] HDJ101..MTM 厚さ＝２．１９，マーク Ｄ |
90520-25054 |
US $0.44 |
||
|
37401D
|
37401D
90520-25055 Ring, Hole Snap (For Spider Bearing)[06.2000 - 08.2002] HDJ101..MTM 厚さ＝２．２１，マーク Ｅ |
90520-25055 |
US $0.73 |
||
|
37401D
|
37401D
90520-25056 Ring, Hole Snap (For Spider Bearing)[06.2000 - 08.2002] HDJ101..MTM 厚さ＝２．２３，マーク Ｆ |
90520-25056 |
US $0.69 |
||
|
37401D
|
37401D
90520-25057 Ring, Hole Snap (For Spider Bearing)[06.2000 - 08.2002] HDJ101..MTM 厚さ＝２．２５，マーク Ｇ |
90520-25057 |
US $0.69 |
||
|
37401D
|
37401D
90520-25058 Ring, Hole Snap (For Spider Bearing)[06.2000 - 08.2002] HDJ101..MTM 厚さ＝２．２７，マーク Ｈ |
90520-25058 |
US $0.69 |
||
|
37402C
|
37402C
37402-35050 Bearing Sub-Assy, Universal Joint Spider[01.1998 - 08.2002] HDJ101..MTM |
37402-35050 |
US $12.38 |
||
| replacement | |||||
|
37402C
|
37402C
04371-60060 Spider Kit, Rear Propeller Shaft Universal Joint[01.1998 - 08.2002] HDJ101..MTM |
04371-60060 |
from US $59.41 |
||
|
37402C
|
37402C
37402-35060 Bearing Sub-Assy, Universal Joint Spider[01.1998 - 08.2002] HDJ101..MTM レッド ペイント |
37402-35060 |
US $12.38 |
||
| replacement | |||||
|
37402C
|
37402C
04371-60060 Spider Kit, Rear Propeller Shaft Universal Joint[01.1998 - 08.2002] HDJ101..MTM レッド ペイント |
04371-60060 |
from US $59.41 |
||
|
9041606004
|
9041606004
90416-06004 FITTING |
90416-06004 |
from US $5.38 |
||
|
9645100600
|
9645100600
96451-00600 Fitting, Grease Small(For Tail Gate Lock Link) |
96451-00600 |
from US $1.39 |
||
