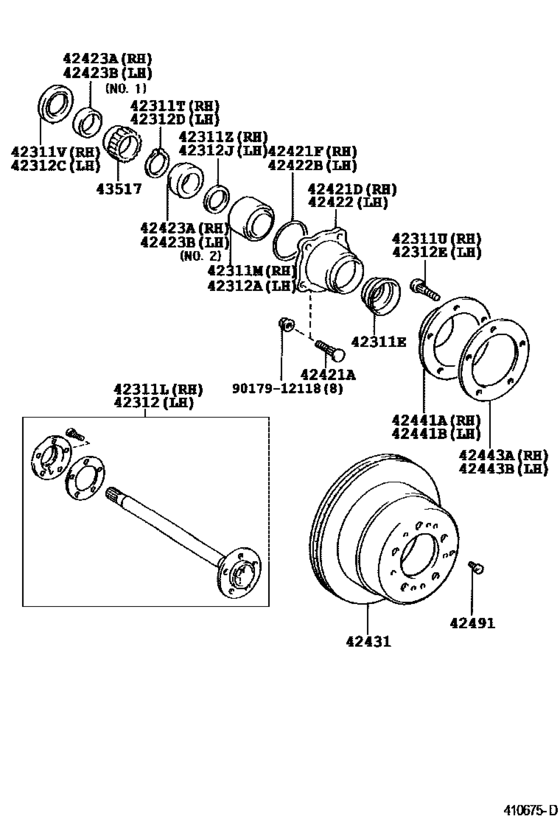

Rear Axle Shaft & Hub ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311E
|
42311E
90313-62001 Seal, Oil (For Rear Axle Shaft Outer)[01.1998 - 08.2002] HDJ101,UZJ100 |
90313-62001 |
from US $7.17 |
||
|
42311L
|
42311L
42301-60901 Shaft, Rear Axle, Rh[01.1998 - 08.2002] HDJ101,UZJ100 |
42301-60901 |
from US $521.91 |
||
|
42311L
|
42311L
42301-60902 Shaft, Rear Axle, Rh[01.1998 - 08.2002] HDJ101,UZJ100 ｱﾘ(ﾘﾔﾃﾞｲﾌｱﾚﾝｼﾔﾙﾛﾂｸ) |
42301-60902 |
from US $525.91 |
||
|
42311M
|
42311M
90369-48001 Bearing (For Rear Axle Shaft Rh)[01.1998 - 08.2002] HDJ101,UZJ100 |
90369-48001 |
from US $117.23 |
||
|
42311T
|
42311T
90520-44038 Ring, Snap (For Rear Axle Shaft Rh)[01.1998 - 08.2002] HDJ101,UZJ100 |
90520-44038 |
from US $1.90 |
||
|
42311U
|
42311U
90942-02077
Bolt, Hub (For Rear Axle Rh)
[01.1998 - 08.2002] HDJ101,UZJ100 |
90942-02077 |
— | ||
| replacement | |||||
|
42311U
|
42311U
90942-02083 Bolt, Hub (For Rear Axle)[01.1998 - 08.2002] HDJ101,UZJ100 |
90942-02083 |
US $5.02 |
||
|
42311V
|
42311V
90310-58002 Seal, Oil (For Rear Axle Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 |
90310-58002 |
from US $6.27 |
||
|
42311Z
|
42311Z
90208-48002 Washer(For Rear Axle Shaft Rh)[01.1998 - 08.2002] HDJ101,UZJ100 |
90208-48002 |
from US $2.91 |
||
|
42312
|
42312
42302-60901 Shaft, Rear Axle, Lh[01.1998 - 08.2002] HDJ101,UZJ100 |
42302-60901 |
from US $607.53 |
||
|
42312A
|
42312A
90369-48001 Bearing (For Rear Axle Shaft Rh)[01.1998 - 08.2002] HDJ101,UZJ100 |
90369-48001 |
from US $117.23 |
||
|
42312C
|
42312C
90310-58002 Seal, Oil (For Rear Axle Shaft)[01.1998 - 08.2002] HDJ101,UZJ100 |
90310-58002 |
from US $6.27 |
||
|
42312D
|
42312D
90520-44038 Ring, Snap (For Rear Axle Shaft Rh)[01.1998 - 08.2002] HDJ101,UZJ100 |
90520-44038 |
from US $1.90 |
||
|
42312E
|
42312E
90942-02077
Bolt, Hub (For Rear Axle Rh)
[01.1998 - 08.2002] HDJ101,UZJ100 |
90942-02077 |
— | ||
| replacement | |||||
|
42312E
|
42312E
90942-02083 Bolt, Hub (For Rear Axle)[01.1998 - 08.2002] HDJ101,UZJ100 |
90942-02083 |
US $5.02 |
||
|
42312J
|
42312J
90208-48002 Washer(For Rear Axle Shaft Rh)[01.1998 - 08.2002] HDJ101,UZJ100 |
90208-48002 |
from US $2.91 |
||
|
42421A
|
42421A
90114-12036 Bolt (For Rear Axle Bearing Case)[01.1998 - 08.2002] HDJ101,UZJ100 |
90114-12036 |
US $4.66 |
||
|
42421D
|
42421D
42421-60040 Case, Rear Axle Bearing, Rh[01.1998 - 08.2002] HDJ101,UZJ100 |
42421-60040 |
from US $69.96 |
||
|
42421F
|
42421F
90301-85004 Ring, O (For Rear Axle Bearing Case Rh)[01.1998 - 08.2002] HDJ101,UZJ100 |
90301-85004 |
from US $3.23 |
||
|
42422
|
42422
42422-60030 Case, Rear Axle Bearing, Rh[01.1998 - 08.2002] HDJ101,UZJ100 |
42422-60030 |
from US $69.96 |
||
|
42422B
|
42422B
90301-85004 Ring, O (For Rear Axle Bearing Case Rh)[01.1998 - 08.2002] HDJ101,UZJ100 |
90301-85004 |
from US $3.23 |
||
|
42423A
|
42423A
42423-60030 Retainer, Rear Axle Bearing, Inner Rh[01.1998 - 08.2002] HDJ101,UZJ100 ＮＯ．１ |
42423-60030 |
from US $10.17 |
||
|
42423A
|
42423A
42423-60040 Retainer, Rear Axle Bearing, Inner Rh[01.1998 - 08.2002] HDJ101,UZJ100 ＮＯ．２ |
42423-60040 |
from US $18.92 |
||
|
42423B
|
42423B
42423-60030 Retainer, Rear Axle Bearing, Inner Rh[01.1998 - 08.2002] HDJ101,UZJ100 ＮＯ．１ |
42423-60030 |
from US $10.17 |
||
|
42423B
|
42423B
42423-60040 Retainer, Rear Axle Bearing, Inner Rh[01.1998 - 08.2002] HDJ101,UZJ100 ＮＯ．２ |
42423-60040 |
from US $18.92 |
||
|
42431
|
42431
42431-60220
Disc, Rear
[01.1998 - 09.2000] HDJ101,UZJ100 |
42431-60220 |
— | ||
| replacement | |||||
|
42431
|
42431
42431-60281 Disc, Rear[01.1998 - 09.2000] HDJ101,UZJ100 |
42431-60281 |
from US $222.72 |
||
|
42431
|
42431
42431-60221 Disc, Rear[09.2000 - 08.2002] HDJ101,UZJ100 |
42431-60221 |
US $203.84 |
||
| replacement | |||||
|
42431
|
42431
42431-60281 Disc, Rear[09.2000 - 08.2002] HDJ101,UZJ100 |
42431-60281 |
from US $222.72 |
||
|
42441A
|
42441A
42441-60050 Deflector, Brake Drum Oil Rh[01.1998 - 08.2002] HDJ101,UZJ100 |
42441-60050 |
from US $22.16 |
||
|
42441B
|
42441B
42441-60050 Deflector, Brake Drum Oil Rh[01.1998 - 08.2002] HDJ101,UZJ100 |
42441-60050 |
from US $22.16 |
||
|
42443A
|
42443A
42443-60020 Gasket, Brake Drum Oil Deflector[01.1998 - 08.2002] HDJ101,UZJ100 |
42443-60020 |
from US $7.35 |
||
|
42443B
|
42443B
42443-60020 Gasket, Brake Drum Oil Deflector[01.1998 - 08.2002] HDJ101,UZJ100 |
42443-60020 |
from US $7.35 |
||
|
42491
|
42491
47491-22020 Plug, Shoe Adjusting Hole (For Parking Brake)[01.1998 - 08.2002] HDJ101,UZJ100 |
47491-22020 |
from US $1.77 |
||
|
43517
|
43517
43517-60020 Rotor, Skid Control, Rear[01.1998 - 08.2002] HDJ101,UZJ100 |
43517-60020 |
from US $10.85 |
||
|
9017912118
|
9017912118
90179-12118 Nut(For Backing Plate To Rear Axle Housing Setting) |
90179-12118 |
from US $0.91 |
||
