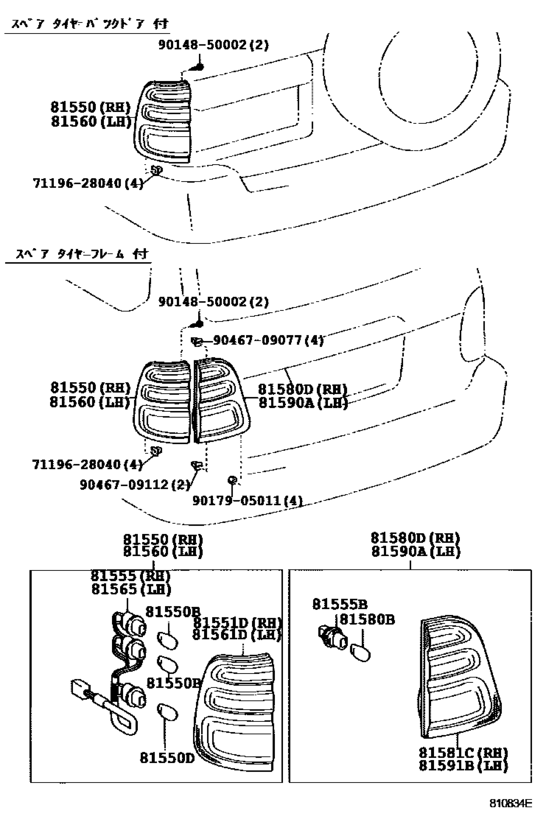

Rear Combination Lamp ([01.1998 - 05.2005] (9801-0505)VX,VXL) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-60560 Lamp Assy, Rear Combination, Rh[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
81550-60560 |
US $285.38 |
||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL １２Ｖ ２１Ｗ |
90981-13043 |
from US $3.15 |
||
|
81550D
|
81550D
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[01.1998 - 08.2002] HDJ101,UZJ100 １２Ｖ ２１／５Ｗ |
90981-13044 |
from US $3.46 |
||
|
81551D
|
81551D
81551-60560 Lens & Body, Rear Combination Lamp, Rh[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
81551-60560 |
from US $159.20 |
||
|
81555
|
81555
81555-60560
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
81555-60560 |
— | ||
|
81555B
|
81555B
90075-60002 Socket, Tail & Stop Lamp[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
90075-60002 |
from US $3.91 |
||
|
81560
|
81560
81560-60480 Lamp Assy, Rear Combination, Lh[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
81560-60480 |
US $285.38 |
||
|
81561D
|
81561D
81561-60480 Lens & Body, Rear Combination Lamp, Lh[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
81561-60480 |
from US $157.87 |
||
|
81565
|
81565
81555-60560
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
81555-60560 |
— | ||
|
81580B
|
81580B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[01.1998 - 08.2002] HDJ101,UZJ100 １２Ｖ ２１／５Ｗ |
90981-13044 |
from US $3.46 |
||
|
81580D
|
81580D
81580-60010
Lamp Assy, Rear, Rh
[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
81580-60010 |
— | ||
|
81581C
|
81581C
81581-60010 Lens And Body, Rear Lamp, Rh[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
81581-60010 |
US $235.87 |
||
|
81590A
|
81590A
81590-60040 Lamp Assy, Rear, Lh[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
81590-60040 |
US $253.34 |
||
|
81591B
|
81591B
81591-60040 Lens And Body, Rear Lamp, Lh[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL |
81591-60040 |
US $235.87 |
||
|
7119628040
|
7119628040
71196-28040 Clip(for Rear Spoiler) |
71196-28040 |
from US $0.95 |
||
|
9014850002
|
9014850002
90148-50002 Screw Hex Lobular |
90148-50002 |
US $2.33 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.76 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
|
9046709077
|
9046709077
90467-09077 Clip(For Rear Combination Lamp) |
90467-09077 |
from US $0.74 |
||
|
9046709112
|
9046709112
90467-09112 Clip(For Rear Combination Lamp) |
90467-09112 |
from US $1.48 |
||
