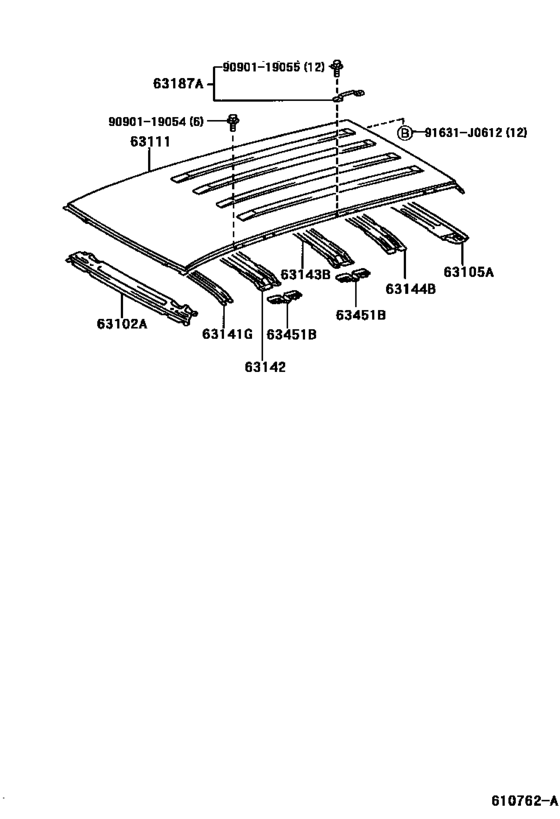

Roof Panel & Back Panel ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63102A
|
63102A
63102-60070
Panel Sub-Assy, Windshield Header
[01.1998 - 01.2002] HDJ101,UZJ100 |
63102-60070 |
— | ||
|
63102A
|
63102A
63102-60071
Panel Sub-Assy, Windshield Header
[01.2002 - 08.2002] HDJ101,UZJ100 |
63102-60071 |
— | ||
| replacement | |||||
|
63102A
|
63102A
63102-60070
Panel Sub-Assy, Windshield Header
[01.2002 - 08.2002] HDJ101,UZJ100 |
63102-60070 |
— | ||
|
63105A
|
63105A
63105-60180
Frame Sub-Assy, Back Door Opening
[01.1998 - 06.1999] HDJ101,UZJ100 |
63105-60180 |
— | ||
| replacement | |||||
|
63105A
|
63105A
63105-60181 Frame Sub-Assy, Back Door Opening[01.1998 - 06.1999] HDJ101,UZJ100 |
63105-60181 |
US $220.15 |
||
|
63105A
|
63105A
63105-60181 Frame Sub-Assy, Back Door Opening[06.1999 - 08.2002] HDJ101,UZJ100 |
63105-60181 |
US $220.15 |
||
|
63111
|
63111
63111-60450 Panel, Roof[01.1998 - 06.1999] HDJ101,UZJ100 |
63111-60450 |
US $1,425.42 |
||
| replacement | |||||
|
63111
|
63111
63111-60451 Panel, Roof[01.1998 - 06.1999] HDJ101,UZJ100 |
63111-60451 |
US $1,426.88 |
||
|
63111
|
63111
63111-60451 Panel, Roof[06.1999 - 08.2000] HDJ101,UZJ100 |
63111-60451 |
US $1,426.88 |
||
|
63141G
|
63141G
63141-60060
Reinforcement, Roof Panel, No.1
[01.1998 - 08.2000] HDJ101,UZJ100 |
63141-60060 |
— | ||
|
63142
|
63142
63143-60030 Reinforcement, Roof Panel, No.2[01.1998 - 08.2000] HDJ101,UZJ100 |
63143-60030 |
US $101.34 |
||
|
63143B
|
63143B
63144-60050 Reinforcement, Roof Panel, No.3[01.1998 - 08.2002] HDJ101,UZJ100 |
63144-60050 |
US $101.34 |
||
|
63144B
|
63144B
63127-60020 Reinforcement, Roof Panel, No.4[01.1998 - 08.2002] HDJ101,UZJ100 |
63127-60020 |
US $47.52 |
||
|
63187A
|
63187A
63187-60030 Bracket, Roof Rack, Rear[01.1998 - 08.2002] HDJ101,UZJ100 |
63187-60030 |
US $8.60 |
||
|
63451B
|
63451B
63451-60040 Reinforcement, Roof Rack, No.1[01.1998 - 08.2000] HDJ101,UZJ100 ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
63451-60040 |
US $21.14 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9090119054
|
9090119054
90901-19054 BOLT WASHER |
90901-19054 |
from US $1.94 |
||
|
9090119055
|
9090119055
90901-19055 New Genuine Part |
90901-19055 |
US $2.69 |
||
