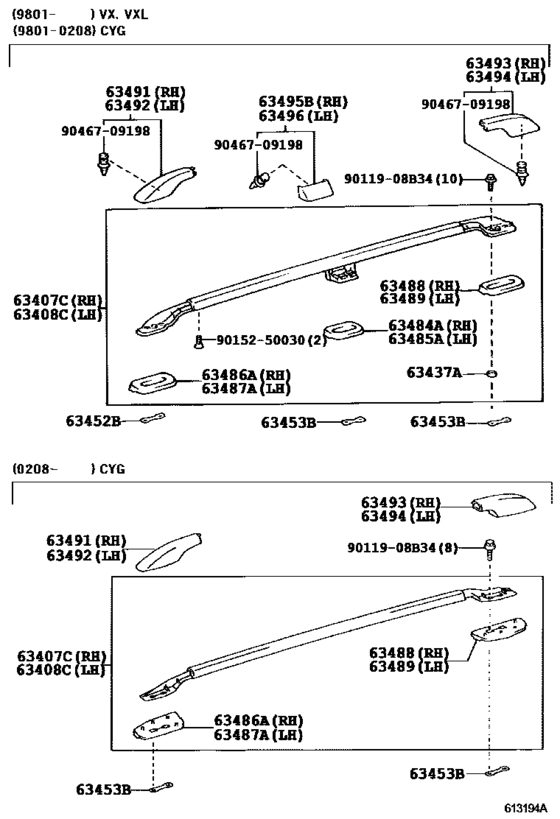

Roof Panel & Back Panel ([01.1998 - ] ｱﾘ(ﾙｰﾌﾚｰﾙ) (9801- )) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63407C
|
63407C
63407-60060 Carrier Sub-Assy, Roof, Rh[01.1998 - 08.2002] HDJ101,UZJ100 |
63407-60060 |
US $492.13 |
||
| replacement | |||||
|
63407C
|
63407C
63407-60061 Carrier Sub-Assy, Roof, Rh[01.1998 - 08.2002] HDJ101,UZJ100 |
63407-60061 |
US $492.13 |
||
|
63408C
|
63408C
63408-60050 Carrier Sub-Assy, Roof, Lh[01.1998 - 08.2002] HDJ101,UZJ100 |
63408-60050 |
US $492.13 |
||
| replacement | |||||
|
63408C
|
63408C
63408-60051 Carrier Sub-Assy, Roof, Lh[01.1998 - 08.2002] HDJ101,UZJ100 |
63408-60051 |
US $478.73 |
||
|
63437A
|
63437A
63437-60010 Seal, Roof Carrier, No.2[01.1998 - 08.2002] HDJ101,UZJ100 |
63437-60010 |
US $3.05 |
||
|
63452B
|
63452B
63452-60020 Reinforcement, Roof Rack, No.2[01.1998 - 09.1998] HDJ101,UZJ100 |
63452-60020 |
US $4.66 |
||
| replacement | |||||
|
63452B
|
63452B
63452-60021 Reinforcement, Roof Rack, No.2[01.1998 - 09.1998] HDJ101,UZJ100 |
63452-60021 |
from US $4.43 |
||
|
63452B
|
63452B
63452-60021 Reinforcement, Roof Rack, No.2[09.1998 - 08.2002] HDJ101,UZJ100 |
63452-60021 |
from US $4.43 |
||
|
63453B
|
63453B
63451-60030
Reinforcement, Roof Rack, No.3
[01.1998 - 09.1998] HDJ101,UZJ100 ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
63451-60030 |
— | ||
| replacement | |||||
|
63453B
|
63453B
63451-60031 Reinforcement, Roof Rack, No.3[01.1998 - 09.1998] HDJ101,UZJ100 ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
63451-60031 |
from US $4.43 |
||
|
63453B
|
63453B
63451-60031 Reinforcement, Roof Rack, No.3[09.1998 - 08.2002] HDJ101,UZJ100 ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
63451-60031 |
from US $4.43 |
||
|
63484A
|
63484A
63484-60040 Cushion, Roof Rack Leg, Center Rh[01.1998 - 08.2002] HDJ101,UZJ100 |
63484-60040 |
US $8.56 |
||
|
63485A
|
63485A
63485-60050 Cushion, Roof Rack Leg, Center Lh[01.1998 - 08.2002] HDJ101,UZJ100 |
63485-60050 |
US $8.56 |
||
|
63486A
|
63486A
63486-60050 Cushion, Roof Rack Leg, Front Rh[01.1998 - 08.2002] HDJ101,UZJ100 |
63486-60050 |
US $9.61 |
||
|
63487A
|
63487A
63487-60030 Cushion, Roof Rack Leg, Front Lh[01.1998 - 08.2002] HDJ101,UZJ100 |
63487-60030 |
US $8.67 |
||
|
63488
|
63488
63488-60040 Cushion, Roof Rack Leg, Rear Rh[01.1998 - 08.2002] HDJ101,UZJ100 |
63488-60040 |
US $8.56 |
||
|
63489
|
63489
63489-60030 Cushion, Roof Rack Leg, Rear Lh[01.1998 - 08.2002] HDJ101,UZJ100 |
63489-60030 |
US $8.56 |
||
|
63491
|
63491
63491-60040
Cover, Roof Rack Leg, Front Rh
[01.1998 - 09.1998] HDJ101,UZJ100 |
63491-60040 |
— | ||
| replacement | |||||
|
63491
|
63491
63491-60041 Cover, Roof Rack Leg, Front Rh[01.1998 - 09.1998] HDJ101,UZJ100 |
63491-60041 |
from US $52.93 |
||
|
63491
|
63491
63491-60041 Cover, Roof Rack Leg, Front Rh[09.1998 - 08.2002] HDJ101,UZJ100 |
63491-60041 |
from US $52.93 |
||
|
63492
|
63492
63492-60020
Cover, Roof Rack Leg, Front Lh
[01.1998 - 09.1998] HDJ101,UZJ100 |
63492-60020 |
— | ||
| replacement | |||||
|
63492
|
63492
63492-60021 Cover, Roof Rack Leg, Front Lh[01.1998 - 09.1998] HDJ101,UZJ100 |
63492-60021 |
from US $54.76 |
||
|
63492
|
63492
63492-60021 Cover, Roof Rack Leg, Front Lh[09.1998 - 08.2002] HDJ101,UZJ100 |
63492-60021 |
from US $54.76 |
||
|
63493
|
63493
63493-60040 Cover, Roof Rack Leg, Rear Rh[01.1998 - 09.1998] HDJ101,UZJ100 |
63493-60040 |
US $64.21 |
||
| replacement | |||||
|
63493
|
63493
63493-60041 Cover, Roof Rack Leg, Rear Rh[01.1998 - 09.1998] HDJ101,UZJ100 |
63493-60041 |
from US $50.16 |
||
|
63493
|
63493
63493-60041 Cover, Roof Rack Leg, Rear Rh[09.1998 - 08.2002] HDJ101,UZJ100 |
63493-60041 |
from US $50.16 |
||
|
63494
|
63494
63494-60030 Cover, Roof Rack Leg, Rear Lh[01.1998 - 09.1998] HDJ101,UZJ100 |
63494-60030 |
US $64.21 |
||
| replacement | |||||
|
63494
|
63494
63494-60031 Cover, Roof Rack Leg, Rear Lh[01.1998 - 09.1998] HDJ101,UZJ100 |
63494-60031 |
from US $56.62 |
||
|
63494
|
63494
63494-60031 Cover, Roof Rack Leg, Rear Lh[09.1998 - 08.2002] HDJ101,UZJ100 |
63494-60031 |
from US $56.62 |
||
|
63495B
|
63495B
63495-60020 Cover, Roof Rack Leg, Center Rh[01.1998 - 09.1998] HDJ101,UZJ100 |
63495-60020 |
US $44.84 |
||
| replacement | |||||
|
63495B
|
63495B
63495-60021 Cover, Roof Rack Leg, Center Rh[01.1998 - 09.1998] HDJ101,UZJ100 |
63495-60021 |
from US $39.39 |
||
|
63495B
|
63495B
63495-60021 Cover, Roof Rack Leg, Center Rh[09.1998 - 08.2002] HDJ101,UZJ100 |
63495-60021 |
from US $39.39 |
||
|
63496
|
63496
63496-60020
Cover, Roof Rack Leg, Center Lh
[01.1998 - 09.1998] HDJ101,UZJ100 |
63496-60020 |
— | ||
| replacement | |||||
|
63496
|
63496
63496-60021 Cover, Roof Rack Leg, Center Lh[01.1998 - 09.1998] HDJ101,UZJ100 |
63496-60021 |
from US $40.03 |
||
|
63496
|
63496
63496-60021 Cover, Roof Rack Leg, Center Lh[09.1998 - 08.2002] HDJ101,UZJ100 |
63496-60021 |
from US $40.03 |
||
|
9011908B34
|
9011908B34
90119-08B34 Bolt w/washer |
90119-08B34 |
US $3.05 |
||
|
9015250030
|
9015250030
90152-50030 SCREW CROSSRECESS |
90152-50030 |
US $1.97 |
||
|
9046709198
|
9046709198
90467-09198 Clip |
90467-09198 |
from US $1.10 |
||
