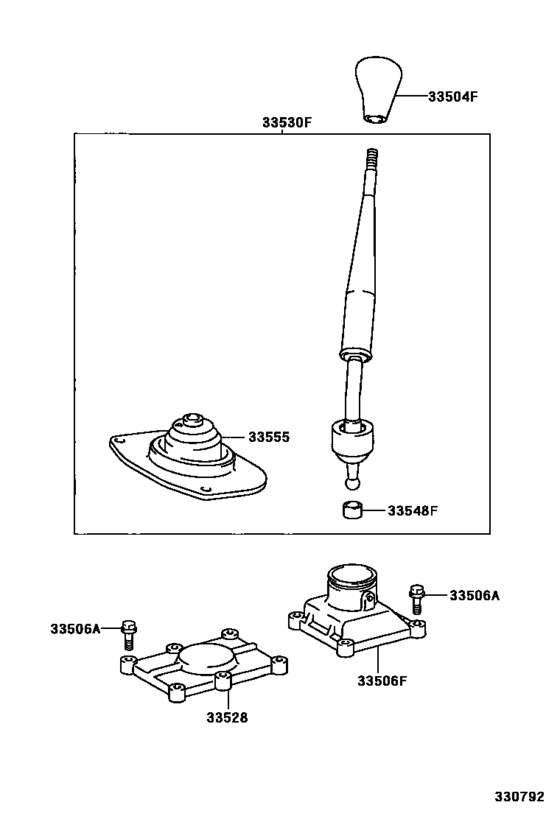

Shift Lever & Retainer ([01.1998 - 08.2002] (9801-0208)MTM) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-60121-C0 Knob Sub-Assy, Shift Lever[01.1998 - 08.2002] HDJ101..MTM ｳﾚﾀﾝ,BLACK,TRIM1#,4# |
33504-60121-C0 |
from US $75.60 |
||
|
33506A
|
33506A
90119-08332 Bolt(For Manual Transmission Oil Pump Cover)[01.1998 - 08.2002] HDJ101..MTM |
90119-08332 |
from US $1.20 |
||
|
33506F
|
33506F
33506-60100 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)[01.1998 - 08.2002] HDJ101..MTM |
33506-60100 |
from US $108.33 |
||
|
33528
|
33528
33528-60040 Cover, Control Shaft[01.1998 - 08.2002] HDJ101..MTM |
33528-60040 |
US $72.85 |
||
|
33530F
|
33530F
33530-60370 Lever Assy, Shift (For Floor Shift)[01.1998 - 08.2002] HDJ101..MTM |
33530-60370 |
US $139.78 |
||
|
33548F
|
33548F
33548-22020 Bush, No.1, Shift Lever (For Floor Shift)[08.2000 - 08.2002] HDJ101..MTM |
33548-22020 |
from US $2.28 |
||
|
33548F
|
33548F
33548-31010 Bush, Shift Lever[01.1998 - 08.2000] HDJ101..MTM |
33548-31010 |
from US $3.49 |
||
|
33555
|
33555
33555-60100 Boot, Shift Lever[01.1998 - 08.2002] HDJ101..MTM |
33555-60100 |
from US $24.80 |
