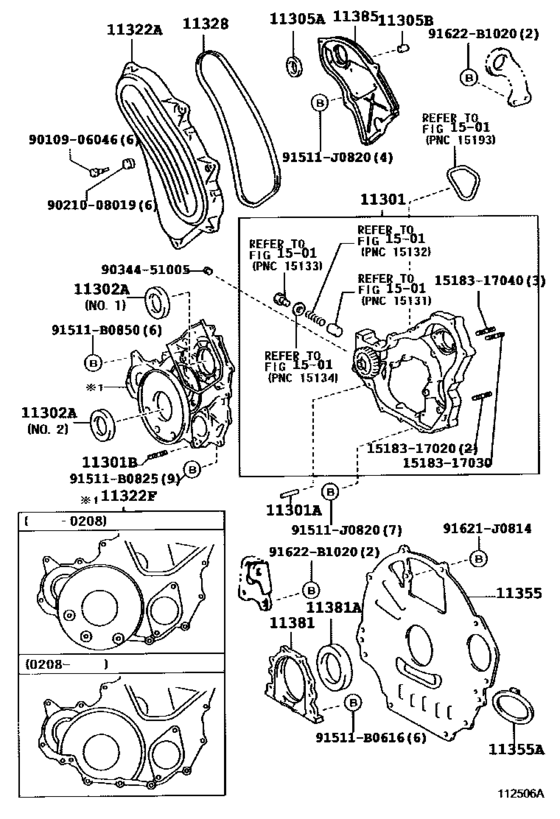

Timing Gear Cover & Rear End Plate ([01.1998 - ] (9801- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301
|
11301
11301-17040
Case Sub-Assy, Timing Gear
[01.1998 - 08.2001] 1HDFTE..HDJ101 |
11301-17040 |
— | ||
|
11301
|
11301
11301-17041 Case Sub-Assy, Timing Gear[08.2001 - 08.2002] 1HDFTE..HDJ101 |
11301-17041 |
from US $385.32 |
||
|
11301A
|
11301A
90250-08054 Pin, Straight[01.1998 - 08.2002] 1HDFTE..HDJ101 長さ＝２３，外径＝８ |
90250-08054 |
from US $0.95 |
||
|
11301B
|
11301B
90116-10160 Bolt,stud(For Timing Gear Case)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90116-10160 |
from US $1.39 |
||
|
11302A
|
11302A
90311-58007 Seal, Oil(For Timing Chain Or Belt Cover)[01.1998 - 08.2002] 1HDFTE..HDJ101 ＮＯ．２ |
90311-58007 |
from US $9.32 |
||
|
11302A
|
11302A
90311-65003 Seal, Type T Oil(For Injection Pump)[01.1998 - 08.2002] 1HDFTE..HDJ101 ＮＯ．１ |
90311-65003 |
from US $13.80 |
||
|
11305A
|
11305A
90311-32017
Seal, Oil(For Oil Seal Retainer, No.2)
[01.1998 - 09.1998] 1HDFTE..HDJ101 |
90311-32017 |
— | ||
| replacement | |||||
|
11305A
|
11305A
90311-32020 Oil Seal[01.1998 - 09.1998] 1HDFTE..HDJ101 |
90311-32020 |
from US $6.27 |
||
|
11305A
|
11305A
90311-32019 Seal, Oil(For Camshaft Setting)[10.1998 - 08.2002] 1HDFTE..HDJ101 |
90311-32019 |
from US $6.27 |
||
|
11305B
|
11305B
90253-11021 Pin, Ring[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90253-11021 |
from US $1.41 |
||
|
11322A
|
11322A
11321-17060 Cover, Timing Belt, No.1[01.1998 - 08.2002] 1HDFTE..HDJ101 |
11321-17060 |
US $127.92 |
||
|
11322F
|
11322F
11322-17040 Cover, Timing Gear, No.2[01.1998 - 08.2002] 1HDFTE..HDJ101 |
11322-17040 |
US $188.70 |
||
|
11328
|
11328
11328-17040 Gasket, Timing Gear Or Chain Cover[01.1998 - 08.2002] 1HDFTE..HDJ101 |
11328-17040 |
from US $6.23 |
||
|
11355
|
11355
11355-17011 Plate, Rear End[01.1998 - 08.2002] 1HDFTE..HDJ101..MTM |
11355-17011 |
from US $77.18 |
||
|
11381
|
11381
11381-17010 Retainer, Engine Rear Oil Seal[01.1998 - 08.2002] 1HDFTE..HDJ101 |
11381-17010 |
from US $25.08 |
||
|
11381A
|
11381A
90311-95008 Seal, Engine Rear Oil[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90311-95008 |
from US $27.72 |
||
|
11385
|
11385
11382-17040 Retainer, Camshaft Oil Seal[01.1998 - 08.2002] 1HDFTE..HDJ101 |
11382-17040 |
US $153.75 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.84 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
91511B0825
|
91511B0825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $0.93 |
||
|
91511B0850
|
91511B0850
91511-B0850 Bolt |
91511-B0850 |
from US $1.41 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.67 |
||
|
91622B1020
|
91622B1020
91622-B1020 Bolt(For Transaxle & Engine Setting) |
91622-B1020 |
US $2.15 |
||
|
1518317020
|
1518317020
15183-17020
Bolt, Union(for Oil Pump)
|
15183-17020 |
— | ||
|
1518317030
|
1518317030
15183-17030 Bolt, Union(for Oil Pump) |
15183-17030 |
US $4.80 |
||
|
1518317040
|
1518317040
15183-17040 Bolt, Union(for Oil Pump) |
15183-17040 |
US $4.80 |
||
|
9010906046
|
9010906046
90109-06046 BOLT |
90109-06046 |
from US $0.76 |
||
|
9021008019
|
9021008019
90210-08019 WASHER |
90210-08019 |
from US $1.81 |
||
| replacement | |||||
|
9021008019
|
9021008019
90080-21002
WASHER
|
90080-21002 |
— | ||
|
9034451005
|
9034451005
90344-51005 Plug, W/head Taper Screw, No.1 |
90344-51005 |
US $3.58 |
||
