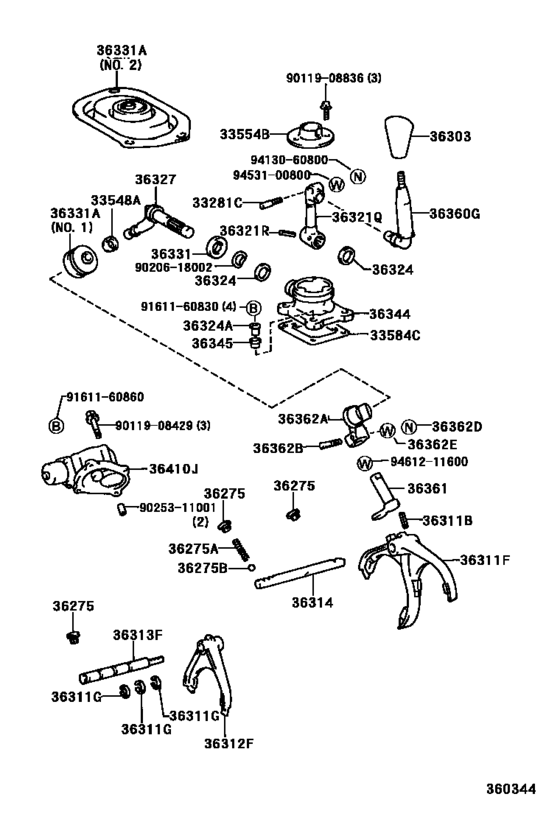

Transfer Lever & Shift Rod ([01.1998 - 08.2002] (9801-0208)MTM) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33281C
|
33281C
33281-16020 Pin, Lever Lock (For Shift Outer Lever)[01.1998 - 08.2002] HDJ101..MTM |
33281-16020 |
from US $1.31 |
||
|
33548A
|
33548A
33548-60030 Bush, Transfer Shift Lever[01.1998 - 08.2002] HDJ101..MTM |
33548-60030 |
from US $7.16 |
||
|
33554B
|
33554B
33554-60081 Cap, Transfer Shift Lever[01.1998 - 08.2002] HDJ101..MTM |
33554-60081 |
from US $9.50 |
||
|
33584C
|
33584C
36345-60010 Gasket,transfer Control Shift Lever Retainer[01.1998 - 08.2002] HDJ101,UZJ100 |
36345-60010 |
from US $18.64 |
||
|
36275
|
36275
90341-12008 Plug, W/head Straight Screw(For Transfer Adapter)[01.1998 - 08.2002] HDJ101,UZJ100 |
90341-12008 |
from US $3.25 |
||
|
36275A
|
36275A
90501-18093 Spring, Compression (For Shift Detent Ball)[01.1998 - 08.2002] HDJ101,UZJ100 長さ＝２３．８ |
90501-18093 |
US $1.97 |
||
|
36275B
|
36275B
90360-10003 Ball(For Transmission Oil Pump Cover)[01.1998 - 08.2002] HDJ101,UZJ100 外径＝９．５２，スチール |
90360-10003 |
from US $1.16 |
||
|
36303
|
36303
36303-60181-C0 Knob Sub-Assy, Shift Lever[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL ｳﾚﾀﾝ,BLACK,TRIM1#,4# |
36303-60181-C0 |
from US $28.70 |
||
|
36303
|
36303
36303-60240-C0 Knob Sub-Assy, Shift Lever[01.1998 - 08.2002] HDJ101,UZJ100..VX,VXL ﾎﾝｶﾞﾜ,BLACK,TRIM1#,4# |
36303-60240-C0 |
from US $45.03 |
||
|
36311B
|
36311B
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[01.1998 - 08.2002] HDJ101,UZJ100 長さ＝２５．５ |
90254-05016 |
from US $1.90 |
||
|
36311F
|
36311F
36311-60120 Fork, Transfer Gear Shift, No.1[01.1998 - 08.2002] HDJ101,UZJ100 |
36311-60120 |
US $49.80 |
||
|
36311G
|
36311G
90520-13004 Ring, Shaft Snap (For Transfer Gear Shift Fork)[01.1998 - 08.2002] HDJ101,UZJ100 |
90520-13004 |
from US $0.96 |
||
|
36312F
|
36312F
36312-60050 Fork, Transfer Gear Shift, No.2[01.1998 - 08.2002] HDJ101,UZJ100 |
36312-60050 |
US $26.73 |
||
|
36313F
|
36313F
36313-60100 Shaft, Transfer Front Drive Shift Fork[01.1998 - 08.2002] HDJ101,UZJ100 |
36313-60100 |
US $17.47 |
||
|
36314
|
36314
36314-60050 Shaft, Transfer High And Low Shift Fork[01.1998 - 08.2002] HDJ101,UZJ100 |
36314-60050 |
US $16.25 |
||
|
36321Q
|
36321Q
36321-60420 Lever, Transfer Shift[01.1998 - 08.2002] HDJ101..MTM |
36321-60420 |
from US $26.56 |
||
|
36321R
|
36321R
90254-05002 Pin, Slotted Spring(For Shift Lever Shaft Set)[01.1998 - 08.2002] HDJ101..MTM |
90254-05002 |
from US $1.03 |
||
|
36324
|
36324
36324-60060 Bush, Transfer Shift Lever[01.1998 - 08.2002] HDJ101..MTM |
36324-60060 |
from US $1.56 |
||
|
36324A
|
36324A
36324-60070 Bush, Transfer Shift Lever[01.1998 - 08.2002] HDJ101,UZJ100 |
36324-60070 |
from US $3.06 |
||
|
36327
|
36327
36327-60130 Shaft, Transfer Shift Lever[01.1998 - 08.2002] HDJ101..MTM |
36327-60130 |
from US $36.34 |
||
|
36331
|
36331
36331-60040 Boot, Transfer Shift Lever[01.1998 - 08.2002] HDJ101..MTM; HDJ101,UZJ100..ATM ＮＯ．２ |
36331-60040 |
from US $4.48 |
||
|
36331A
|
36331A
36331-60080 Boot, Transfer Shift Lever, No.2[01.1998 - 08.2002] HDJ101..MTM ＮＯ．１ |
36331-60080 |
from US $16.07 |
||
|
36331A
|
36331A
36331-60090 Boot, Transfer Shift Lever, No.2[01.1998 - 08.2002] HDJ101..MTM ＮＯ．２ |
36331-60090 |
from US $53.46 |
||
|
36344
|
36344
36344-60030 Retainer, Transfer Control Shift Lever[01.1998 - 08.2002] HDJ101..MTM |
36344-60030 |
from US $60.63 |
||
|
36345
|
36345
36345-60020 Gasket, Transfer Control Shift Lever Retainer[01.1998 - 08.2002] HDJ101,UZJ100 |
36345-60020 |
from US $1.41 |
||
|
36360G
|
36360G
36360-60590 Lever Assy, Transfer High & Low Shift[01.1998 - 08.2002] HDJ101..MTM |
36360-60590 |
US $113.57 |
||
|
36361
|
36361
36361-60030 Lever, Transfer Shift, Inner[01.1998 - 08.2002] HDJ101,UZJ100 |
36361-60030 |
US $12.93 |
||
|
36362A
|
36362A
36362-60060 Lever, Transfer Shift, Outer[01.1998 - 08.2002] HDJ101..MTM |
36362-60060 |
from US $27.96 |
||
|
36362B
|
36362B
33281-16020 Pin, Lever Lock (For Shift Outer Lever)[01.1998 - 08.2002] HDJ101,UZJ100 |
33281-16020 |
from US $1.31 |
||
|
36362D
|
36362D
94130-60800 Nut(For Clutch Pedal Stopper)[01.1998 - 07.1998] HDJ101,UZJ100 |
94130-60800 |
from US $0.67 |
||
|
36362E
|
36362E
94531-00800 Washer (For Transfer Shift Outer Lever)[01.1998 - 07.1998] HDJ101,UZJ100 |
94531-00800 |
from US $0.84 |
||
|
36410J
|
36410J
36410-60060
Actuator Assy, Transfer Shift
[01.1998 - 03.2001] HDJ101,UZJ100 |
36410-60060 |
— | ||
| replacement | |||||
|
36410J
|
36410J
36410-60061 Actuator Assy, Transfer Shift[01.1998 - 03.2001] HDJ101,UZJ100 |
36410-60061 |
from US $578 |
||
|
36410J
|
36410J
36410-60061 Actuator Assy, Transfer Shift[03.2001 - 08.2002] HDJ101,UZJ100 |
36410-60061 |
from US $578 |
||
|
9011908429
|
9011908429
90119-08429 Bolt, W/washer(For Transmission Case Cover) |
90119-08429 |
US $1.97 |
||
|
9011908836
|
9011908836
90119-08836 BOLT WWASHER |
90119-08836 |
from US $0.82 |
||
|
9020618002
|
9020618002
90206-18002 RING |
90206-18002 |
US $0.80 |
||
|
9025311001
|
9025311001
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11001 |
US $2.15 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.41 |
||
|
9161160860
|
9161160860
91611-60860 Bolt(For Rocker Support Set) |
91611-60860 |
US $1.79 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.67 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
||
|
9461211600
|
9461211600
94612-11600 Washer, Shift Lever Shaft Housing, No.2 |
94612-11600 |
US $1.97 |
||
