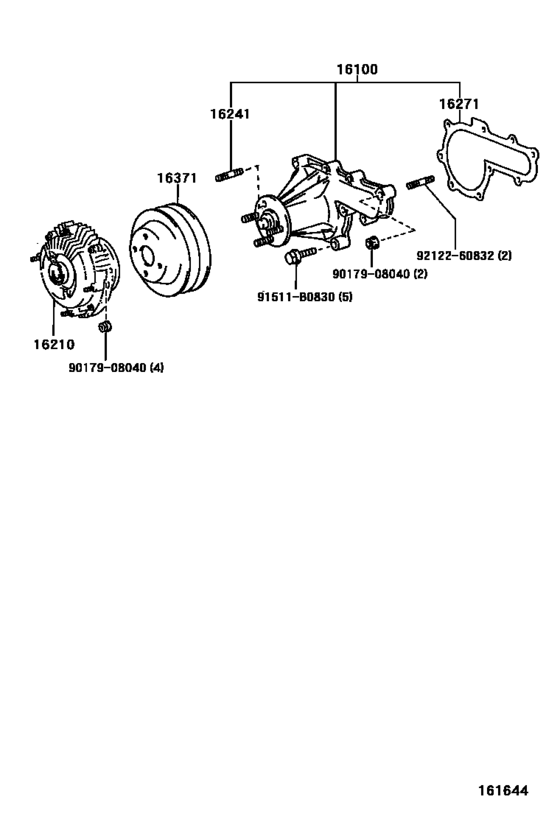

Water Pump ([01.1998 - ] (9801- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-19235 Pump Assy, Engine Water[01.1998 - 08.2002] 1HDFTE..HDJ101 |
16100-19235 |
from US $141.97 |
||
|
16210
|
16210
16210-17050 Coupling Assy, Fluid[01.1998 - 08.2002] 1HDFTE..HDJ101 |
16210-17050 |
from US $269.40 |
||
|
16241
|
16241
90116-08112 Bolt, Stud(For Water Pump Coupling)[01.1998 - 08.2002] 1HDFTE..HDJ101 |
90116-08112 |
from US $0.82 |
||
|
16271
|
16271
16271-17010 Gasket, Water Pump[01.1998 - 08.2002] 1HDFTE..HDJ101 |
16271-17010 |
from US $6.29 |
||
|
16371
|
16371
16371-17010 Pulley, Fan[01.1998 - 08.2002] 1HDFTE..HDJ101 |
16371-17010 |
from US $45.86 |
||
|
91511B0830
|
91511B0830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $0.80 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9212260832
|
9212260832
92122-60832 Bolt, Stud(For Oil Strainer) |
92122-60832 |
from US $1.61 |
