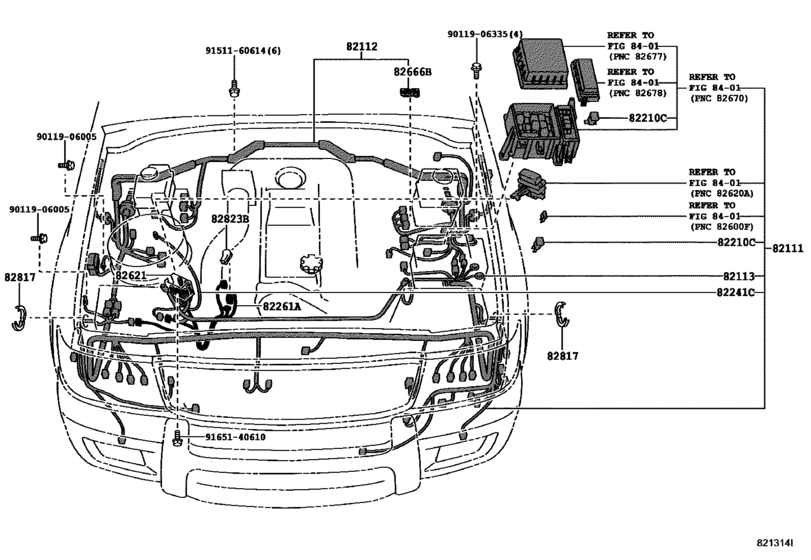

Wiring & Clamp ([01.1998 - 08.2002] ｴﾝｼﾞﾝﾙ-ﾑ (9801-0208)HDJ101) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-60860 Wire, Engine Room Main[05.2000 - 08.2000] HDJ101 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) OR ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ---ｾﾊﾟﾚ-ﾄ) |
82111-60860 |
US $1,688.96 |
||
|
82111
|
82111
82111-6A080 Wire, Engine Room Main[01.1998 - 07.1999] HDJ101 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) OR ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ---ｾﾊﾟﾚ-ﾄ) |
82111-6A080 |
US $1,805.44 |
||
|
82111
|
82111
82111-6A081 Wire, Engine Room Main[07.1999 - 05.2000] HDJ101 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-6A081 |
82111-6A081 |
US $1,688.96 |
||
|
82111
|
82111
82111-6A082 Wire, Engine Room Main[08.2000 - 08.2002] HDJ101 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-6A082 |
82111-6A082 |
US $1,688.96 |
||
| replacement | |||||
|
82111
|
82111
82111-6A183 Wire, Engine Room Main[08.2000 - 08.2002] HDJ101 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-6A082 |
82111-6A183 |
US $1,688.96 |
||
|
82111
|
82111
82111-6A130 Wire, Engine Room Main[01.1998 - 07.1999] HDJ101 |
82111-6A130 |
US $659.57 |
||
|
82111
|
82111
82111-6A131 Wire, Engine Room Main[07.1999 - 05.2000] HDJ101 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-6A131 |
82111-6A131 |
US $1,688.96 |
||
|
82111
|
82111
82111-6A180 Wire, Engine Room Main[01.1998 - 07.1999] HDJ101 ｱﾘ(TEMS OR ｸ-ﾙ ﾎﾞﾂｸｽ) |
82111-6A180 |
US $1,805.44 |
||
|
82111
|
82111
82111-6A181 Wire, Engine Room Main[07.1999 - 01.2000] HDJ101 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-6A181 |
82111-6A181 |
US $1,688.96 |
||
|
82111
|
82111
82111-6A182 Wire, Engine Room Main[05.2000 - 08.2000] HDJ101 |
82111-6A182 |
US $1,688.96 |
||
|
82111
|
82111
82111-6A183 Wire, Engine Room Main[08.2000 - 08.2002] HDJ101 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-6A183 |
82111-6A183 |
US $1,688.96 |
||
|
82112
|
82112
82112-60210 Wire, Engine Room, No.2[01.1998 - 07.1999] HDJ101 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(TEMS) OR ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) OR ｱﾘ(ﾘﾔﾃﾞｲﾌｱﾚﾝｼﾔﾙﾛﾂｸ) OR ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼ ﾞﾖﾝ) |
82112-60210 |
US $1,421.06 |
||
|
82112
|
82112
82112-60211 Wire, Engine Room, No.2[07.1999 - 08.2000] HDJ101 |
82112-60211 |
US $1,528.80 |
||
|
82112
|
82112
82112-60212 Wire, Engine Room, No.2[08.2000 - 08.2002] HDJ101 |
82112-60212 |
US $1,528.80 |
||
|
82112
|
82112
82112-60250 Wire, Engine Room, No.2[01.1998 - 07.1998] HDJ101 |
82112-60250 |
US $659.57 |
||
| replacement | |||||
|
82112
|
82112
82112-60251 Wire, Engine Room, No.2[01.1998 - 07.1998] HDJ101 |
82112-60251 |
US $659.57 |
||
|
82112
|
82112
82112-60251 Wire, Engine Room, No.2[07.1998 - 07.1999] HDJ101 |
82112-60251 |
US $659.57 |
||
|
82113
|
82113
82113-60060 Wire, Engine Room, No.3[01.1998 - 08.2002] HDJ101 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) OR ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ---ｾﾊﾟﾚ-ﾄ) |
82113-60060 |
US $243.15 |
||
| replacement | |||||
|
82113
|
82113
82113-60080 Wire, Engine Room, No.3[01.1998 - 08.2002] HDJ101 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) OR ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ---ｾﾊﾟﾚ-ﾄ) |
82113-60080 |
US $243.15 |
||
|
82113
|
82113
82113-60080 Wire, Engine Room, No.3[01.1998 - 01.2000] HDJ101 |
82113-60080 |
US $243.15 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[01.1998 - 08.2002] HDJ101,UZJ100 １００Ａ，オス端子 |
90982-08246 |
from US $7.11 |
||
|
82210C
|
82210C
90982-08283 Fusible Link[01.1998 - 08.2002] HDJ101,UZJ100 ３０Ａ，メス端子 |
90982-08283 |
from US $1.35 |
||
|
82210C
|
82210C
90982-08284 Fusible Link[01.1998 - 08.2002] HDJ101,UZJ100 ４０Ａ，メス端子 |
90982-08284 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08285 Fusible Link[01.1998 - 08.2002] HDJ101,UZJ100 ５０Ａ，メス端子 |
90982-08285 |
from US $7.88 |
||
|
82210C
|
82210C
90982-08286 Fusible Link[01.1998 - 08.2002] HDJ101,UZJ100 １４０Ａ，オス端子 |
90982-08286 |
from US $8.60 |
||
|
82210C
|
82210C
90982-08290 Fusible Link[01.2000 - 08.2002] HDJ101,UZJ100 ６０Ａ |
90982-08290 |
US $8.59 |
||
|
82210C
|
82210C
90982-08291 Fusible Link[01.2000 - 08.2002] HDJ101,UZJ100 ８０Ａ |
90982-08291 |
US $7.88 |
||
|
82241C
|
82241C
82241-60020 Wire, Relay[01.1998 - 07.1999] HDJ101 |
82241-60020 |
US $57.51 |
||
| replacement | |||||
|
82241C
|
82241C
82241-60021 Wire, Relay[01.1998 - 07.1999] HDJ101 |
82241-60021 |
US $68.58 |
||
|
82241C
|
82241C
82241-60021 Wire, Relay[07.1999 - 08.2002] HDJ101 |
82241-60021 |
US $68.58 |
||
|
82261A
|
82261A
82261-60090 Wire, Alternator[01.1998 - 08.2002] HDJ101 |
82261-60090 |
US $49.31 |
||
|
82621
|
82621
82621-60010
Cover, Fusible Link
[01.1998 - 08.2002] HDJ101,UZJ100 |
82621-60010 |
— | ||
|
82666B
|
82666B
82666-60060 Holder, Connector No.2[01.1998 - 08.2002] HDJ101,UZJ100 |
82666-60060 |
US $3.67 |
||
|
82817
|
82817
82817-24110 Protector, Wiring Harness, No.1[01.1998 - 08.2002] HDJ101,UZJ100 |
82817-24110 |
US $5.42 |
||
|
82823B
|
82823B
82823-22050 Cap, Terminal, No.1[01.1998 - 08.2002] HDJ101,UZJ100 |
82823-22050 |
from US $3.55 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011906335
|
9011906335
90119-06335 New Genuine Part |
90119-06335 |
US $0.92 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
