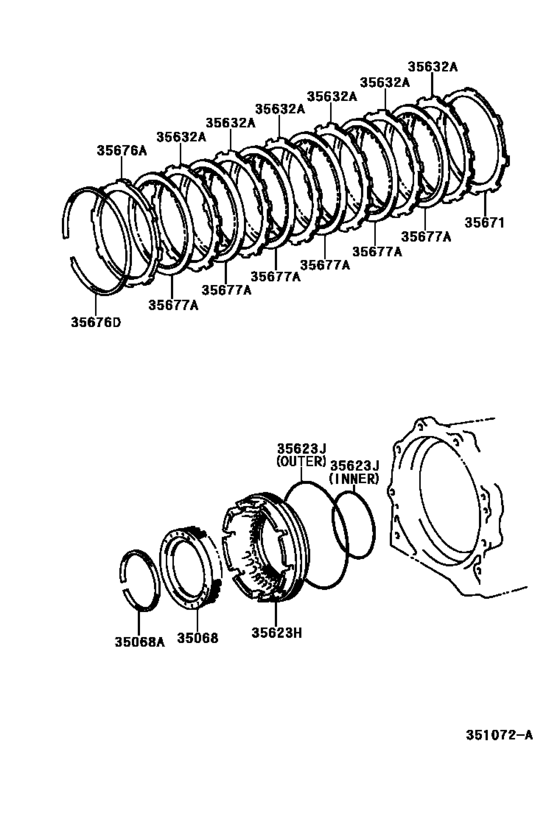

Brake No.3, 1St & Reverse Brake (Atm) ([01.1998 - 08.2002] A442F (9801-0208)ATM) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35068
|
35068
35068-36010 Spring Sub-Assy, 1St & Reverse Brake Return[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35068-36010 |
from US $24.32 |
||
|
35068A
|
35068A
90520-87001 Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90520-87001 |
from US $2.48 |
||
|
35623H
|
35623H
35623-60040 Piston, 1St & Reverse Brake[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35623-60040 |
US $69.89 |
||
|
35623J
|
35623J
90301-94002 Ring, O (For 1St & Reverse Brake)[01.1998 - 08.2002] HDJ101,UZJ100..ATM 内側 |
90301-94002 |
US $2.62 |
||
|
35623J
|
35623J
90301-99030 Ring, O (For Overdrive Brake Piston)[01.1998 - 08.2002] HDJ101,UZJ100..ATM 外側 |
90301-99030 |
US $5.02 |
||
|
35632A
|
35632A
35632-60070 Plate, Brake (For 1St & Reverse Brake)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35632-60070 |
from US $33.90 |
||
|
35671
|
35671
35671-36010 Plate, Brake Cushion[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35671-36010 |
US $19.80 |
||
|
35676A
|
35676A
35676-60050 Flange, Brake (For 1St & Reverse Brake)[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝６．６５ |
35676-60050 |
US $40.77 |
||
|
35676A
|
35676A
35676-60060 Flange, Brake (For 1St & Reverse Brake)[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝７．０５ |
35676-60060 |
US $40.77 |
||
|
35676A
|
35676A
35676-60070 Flange, Brake (For 1St & Reverse Brake)[01.1998 - 08.2002] HDJ101,UZJ100..ATM 厚さ＝７．４５ |
35676-60070 |
from US $40.77 |
||
|
35676D
|
35676D
90521-99109 Ring, Hole Snap (For Overdrive Brake Return Spring)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
90521-99109 |
US $3.40 |
||
|
35677A
|
35677A
35633-60030 Disc, Clutch (For 1St & Reverse Brake)[01.1998 - 08.2002] HDJ101,UZJ100..ATM |
35633-60030 |
from US $36.63 |
