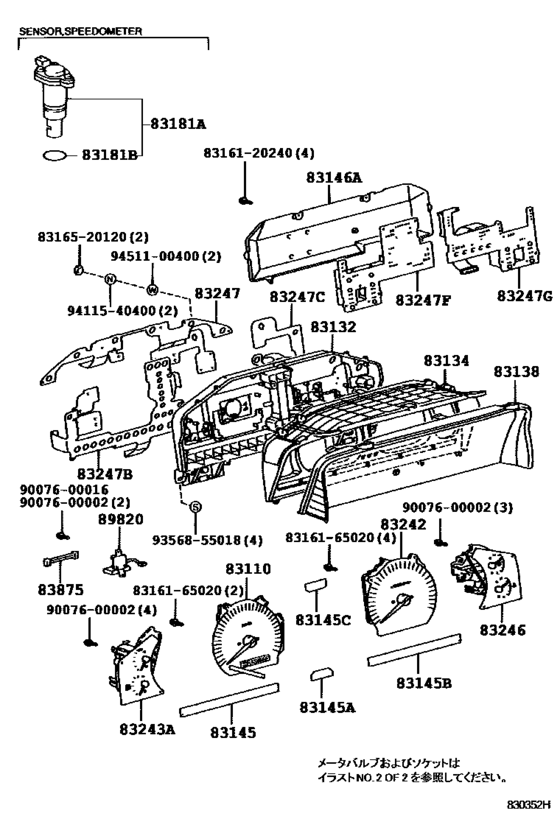

Meter ([01.1998 - 05.2000] ｱﾅﾛｸﾞﾒｰﾀ (9801-0005)ATM) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83110
|
83110
83220-60500
Speedometer Assy
[01.1998 - 05.2000] HDJ101,UZJ100..VX,VXL |
83220-60500 |
— | ||
|
83110
|
83110
83220-60580
Speedometer Assy
[01.1998 - 07.1999] HDJ101,UZJ100..ATM..(VX,VXL) ｱﾘ(TEMS) |
83220-60580 |
— | ||
|
83132
|
83132
83841-6A840
Case, Combination Meter
[01.1998 - 05.2000] HDJ101,UZJ100..ATM..(VX,VXL) |
83841-6A840 |
— | ||
|
83132
|
83132
83841-6A850 Case, Combination Meter[01.1998 - 07.1999] HDJ101,UZJ100..VX,VXL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83841-6A850 |
US $51.83 |
||
|
83134
|
83134
83821-6A840
Cover, Combination Meter, No.1
[01.1998 - 05.2000] HDJ101,UZJ100..ATM..(VX,VXL) |
83821-6A840 |
— | ||
|
83134
|
83134
83821-6A850 Cover, Combination Meter, No.1[01.1998 - 07.1999] HDJ101,UZJ100..VX,VXL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83821-6A850 |
US $47.32 |
||
|
83138
|
83138
83852-6A840 Glass, Speedometer[01.1998 - 05.2000] HDJ101,UZJ100..VX,VXL |
83852-6A840 |
from US $50.26 |
||
|
83138
|
83138
83852-6A850 Glass, Speedometer[01.1998 - 07.1999] HDJ101,UZJ100..VX,VXL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83852-6A850 |
from US $53.28 |
||
|
83145
|
83145
83831-6A860 Lens, Meter, No.1[01.1998 - 07.1999] HDJ101,UZJ100..VX,VXL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83831-6A860 |
US $13.25 |
||
|
83145
|
83145
83831-6B040
Lens, Meter, No.1
[01.1998 - 05.2000] HDJ101,UZJ100..VX,VXL |
83831-6B040 |
— | ||
|
83145A
|
83145A
83832-6A840 Lens, Meter, No.2[01.1998 - 05.2000] HDJ101,UZJ100..ATM..(VX,VXL) |
83832-6A840 |
US $6.70 |
||
|
83145B
|
83145B
83832-6A860 Lens, Meter, No.3[01.1998 - 07.1999] HDJ101,UZJ100..VX,VXL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83832-6A860 |
US $13.25 |
||
|
83145B
|
83145B
83832-6A870
Lens, Meter, No.3
[01.1998 - 05.2000] HDJ101,UZJ100..VX,VXL |
83832-6A870 |
— | ||
|
83145C
|
83145C
83834-6A850 Lens, Meter, No.4[01.1998 - 07.1999] HDJ101,UZJ100 |
83834-6A850 |
US $7.28 |
||
|
83146A
|
83146A
83845-6A840
Cover, Speedmeter
[01.1998 - 05.2000] HDJ101,UZJ100..VX,VXL |
83845-6A840 |
— | ||
|
83181A
|
83181A
83181-12020 Sensor, Speedometer[01.1998 - 08.2002] HDJ101,UZJ100 |
83181-12020 |
from US $166.74 |
||
|
83181B
|
83181B
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[01.1998 - 08.2002] HDJ101,UZJ100 |
96711-24030 |
from US $2.15 |
||
|
83242
|
83242
83881-6B060 Tachometer Assy, Engine[01.1998 - 07.1999] HDJ101 |
83881-6B060 |
US $499.41 |
||
|
83242
|
83242
83881-6B061 Tachometer Assy, Engine[07.1999 - 05.2000] HDJ101 |
83881-6B061 |
US $484.85 |
||
|
83242
|
83242
83881-6B080 Tachometer Assy, Engine[01.1998 - 07.1999] HDJ101..ATM ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83881-6B080 |
US $745.47 |
||
|
83242
|
83242
83881-6C820 Tachometer Assy, Engine[05.2000 - 08.2002] HDJ101..ATM |
83881-6C820 |
US $703.25 |
||
|
83243A
|
83243A
83882-6A840
Gauge Sub-Assy, Fuel Receiver
[01.1998 - 05.2000] HDJ101,UZJ100..VX,VXL |
83882-6A840 |
— | ||
|
83246
|
83246
83885-6B020
Gauge, Oil Pressure Receiver
[01.1998 - 07.1999] HDJ101 |
83885-6B020 |
— | ||
|
83246
|
83246
83885-6B021
Gauge, Oil Pressure Receiver
[07.1999 - 05.2000] HDJ101 |
83885-6B021 |
— | ||
|
83247
|
83247
83863-6A840
Plate, Meter Circuit
[01.1998 - 05.2000] HDJ101,UZJ100..VX,VXL |
83863-6A840 |
— | ||
|
83247
|
83247
83863-6A850 Plate, Meter Circuit[01.1998 - 07.1999] HDJ101,UZJ100..VX,VXL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83863-6A850 |
US $26.35 |
||
|
83247B
|
83247B
83862-6A850
Plate, Meter Circuit, No.2
[01.1998 - 07.1999] HDJ101,UZJ100..VX,VXL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83862-6A850 |
— | ||
|
83247B
|
83247B
83862-6A890
Plate, Meter Circuit, No.2
[01.1998 - 05.2000] HDJ101,UZJ100..ATM..(VX,VXL) |
83862-6A890 |
— | ||
|
83247C
|
83247C
83864-6A840
Plate, Mater Circuit, No.3
[01.1998 - 05.2000] HDJ101,UZJ100..VX,VXL |
83864-6A840 |
— | ||
|
83247C
|
83247C
83864-6A850 Plate, Mater Circuit, No.3[01.1998 - 07.1999] HDJ101,UZJ100..VX,VXL ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ |
83864-6A850 |
US $72.51 |
||
|
83247F
|
83247F
83861-6B070 Plate, Meter Circuit, No.1 (For Computer)[01.1998 - 07.1999] HDJ101..ATM |
83861-6B070 |
US $548.91 |
||
|
83247F
|
83247F
83862-6B071 Plate, Meter Circuit, No.1 (For Computer)[07.1999 - 05.2000] HDJ101..ATM |
83862-6B071 |
US $548.91 |
||
|
83247G
|
83247G
83861-6B071 Plate, Meter Circuit, No.2 (For Computer)[07.1999 - 05.2000] HDJ101..ATM |
83861-6B071 |
US $398.94 |
||
|
83247G
|
83247G
83862-6B070 Plate, Meter Circuit, No.2 (For Computer)[01.1998 - 07.1999] HDJ101..ATM |
83862-6B070 |
US $51.83 |
||
|
83875
|
83875
83875-6A840 Wire, Combination Meter[01.1998 - 05.2000] HDJ101,UZJ100..VX,VXL |
83875-6A840 |
US $3.93 |
||
|
89820
|
89820
89820-60010 Sensor Assy, Inclination[01.1998 - 08.2002] HDJ101,UZJ100 |
89820-60010 |
US $101.92 |
||
|
8316120240
|
8316120240
83161-20240 Case, Combination Meter Mirror, No.1 |
83161-20240 |
US $1.69 |
||
|
8316165020
|
8316165020
83161-65020 Case, Combination Meter Mirror, No.1 |
83161-65020 |
US $0.86 |
||
|
8316520120
|
8316520120
83165-20120
Mirror, Combination Meter, No.2
|
83165-20120 |
— | ||
|
9007600002
|
9007600002
90076-00002 SCREW TAPPING |
90076-00002 |
US $2.97 |
||
|
9007600016
|
9007600016
90076-00016 New Genuine Part |
90076-00016 |
US $2.18 |
||
|
9356855018
|
9356855018
93568-55018 SCREW |
93568-55018 |
from US $0.59 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.33 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
